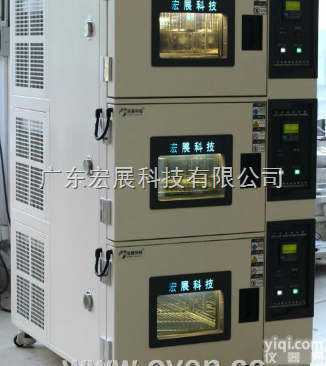

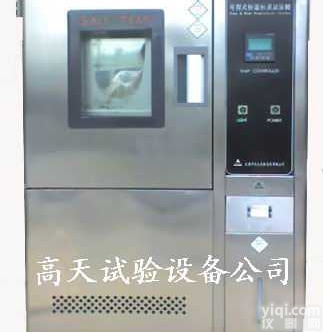

| SHD型 恒温恒湿箱 |
| SHD Series Constant Temperature &Humidity Chamber |
| 一.恒温恒湿箱,恒温恒湿试验箱,可程式恒温恒湿试验箱用途概述 |
| 广泛用于药物、纺织、食品加工、生物工程等试验和工业产品各项温湿度测试。 |
| 二.恒温恒湿箱,恒温恒湿试验箱,可程式恒温恒湿试验箱产品特点: |
| 1、采用镜面不锈钢内胆,四周半圆弧易于清洁,箱内搁板间距可调。 |
| 2、采用双重门结构,隔热性能好。内门采用全钢化玻璃门,打开外门,观察内情况时不影响箱内温度。 |
| 3、高精度、大容量湿度发生器。确保湿度控制发生快、精度高、波动小。 |
| 4、原装法国“泰康”全封闭压缩机,配置延时启动。高、低压力多重保护。 |
| I.Applications: |
| |
| It is applicable to humidity testing in the medicinal, spin, food and biology and so on. |
| II.Feature: |
| 1.Shelves inside the chamber are easy to detach and convenient to wash ,the henght of each shelf can also be adjusted. |
| 2.There is a layer of toughtoned-glass offr with sealing rubber as the inner lay of the outer door for convenient observation of the in-incubator temperature. |
| 3.High precision and large capacity humidity apparatus, which be sure the humidity quickly and low wave. |
| 4.Compressor from French “TaiKang” .which is whole closed .The system was equipped with the function of delay-start and high/low pressure protection |
| 三.恒温恒湿箱,恒温恒湿试验箱,可程式恒温恒湿试验箱(Speclifucations) |
| 型号Model | SHD-080 | SHD-150 | SHD-250 | SHD-400 | | 电源电压 Mains voltage | 220V, 50Hz | | 控温范围Temperature control range | -70~150 ℃ | | 温度波动Temperature fluctuation | ≤±0.5 ℃ | | 控湿范围Humidity control range | 30~95%RH | | 湿度波动Humidity fluctuation | ≤±2%RH | | 消耗功率Consumption power | 1400W | 1500W | 1800W | 2250W | | 工作室尺寸mm/(W.D.H) Dimensions | 400 × 400 × 500 | 500 × 450 × 650 | 600 × 550 × 750 | 600 × 650 × 1000 | | 外箱尺寸mm/(W.D.H) Dimensions | 550 × 580 ×1100 | 650 × 630 ×1260 | 730 ×740 ×1460 | 730 × 855 × 1705 | |
| |
| (本产品整机包修一年,箱体包修五年) |
