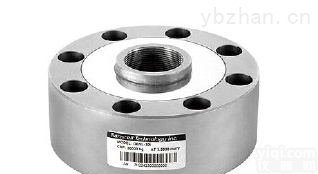

美国传力(TRANSCELL)DBSL轮辐式传感器 DBSL-1t,DBSL-2t,DBSL-3t,DBSL-5t,DBSL-10t,DBSL-20t,DBSL-30t

产品信息



轮辐式传感器;优质合金钢材质;高精度;高稳定性;低外形;安装简便、快速;表层镀镍防腐处理;适用于试验机、汽车衡和大型料斗秤等;








DBSL.轮辐式传感器







 产品名称  PRODUCT NAME

  DBSL.
轮辐式传感器


产品型号
  PRODUCT MODEL

  DBSL


更新时间
  DATE

  2011.09.21


产品简介  INTRODUCTION


轮辐式传感器;优质合金钢材质;高精度;高稳定性;低外形;安装简便、快速;表层镀镍防腐处理;适用于试验机、汽车衡和大型料斗秤等;










    产品详细介绍

Features 主要特点

●  Spoke type load cell
●  Senior alloy steel
●  High accuracy
●  High stability
●  Low profile
●  Easy to install
●  Protected against corrosion by nickelplated treatment
●  Suitable for testing machine, truck scales and big bin & hopper scales, etc.

●  轮辐式传感器
●  优质合金钢材质
●  高精度
●  高稳定性
●  低外形
●  安装简便、快速
●  表层镀镍防腐处理
●  适用于试验机、汽车衡和大型料斗秤等


Capacities 量程

●  1t, 2t, 3t, 5t, 10t, 20t, 30t
●  Larger capacities are also provided(可定制更大量程



Specification 技术参数

Rated Output

额定输出

3.0mV/V ±0.25%

Zero Balance

零点平衡

±1% of rated output

Creep after 30 minutes

蠕变

±0.03% of rated output

Nonlinearity

非线性

±0.03% of rated output

Hysteresis

滞后

±0.03% of rated output

Repeatability

重复性

±0.03% of rated output

Temp. effect on output

灵敏度温漂

≤0.002% of applied output/ºC

Temp. effect on zero

零点温漂

≤0.002% of rated output/ºC

Safe Temp. Range

可用温度范围

-10ºC to + 70ºC

Temp. Compensated

温度补偿范围

-10ºC to + 40ºC

Safe Overload

安全载荷

150%

Input Impedance

输入阻抗

775 ohm ± 20 ohm / 387 ohm ± 20 ohm (≤20t)

Output Impedance

输出阻抗

700 ohm ± 5 ohm / 350 ohm ± 5 ohm (≤20t)

Insulation Resistance

绝缘阻抗

≥5000 M ohm (50V DC)

Rated Excitation

推荐激励电压

10V DC/AC

Maximum Excitation

激励电压

15V DC/AC

Cable Length

导线长度

600cm / 1000cm

Cable Color Code

导线颜色

Red(+E) Black(-E) Green(+S) White(-
