!!!Chroma 6530 二手变频电源新到货特价处理!

chroma 6530 product specs for chroma technology corp.

product desc-ription:

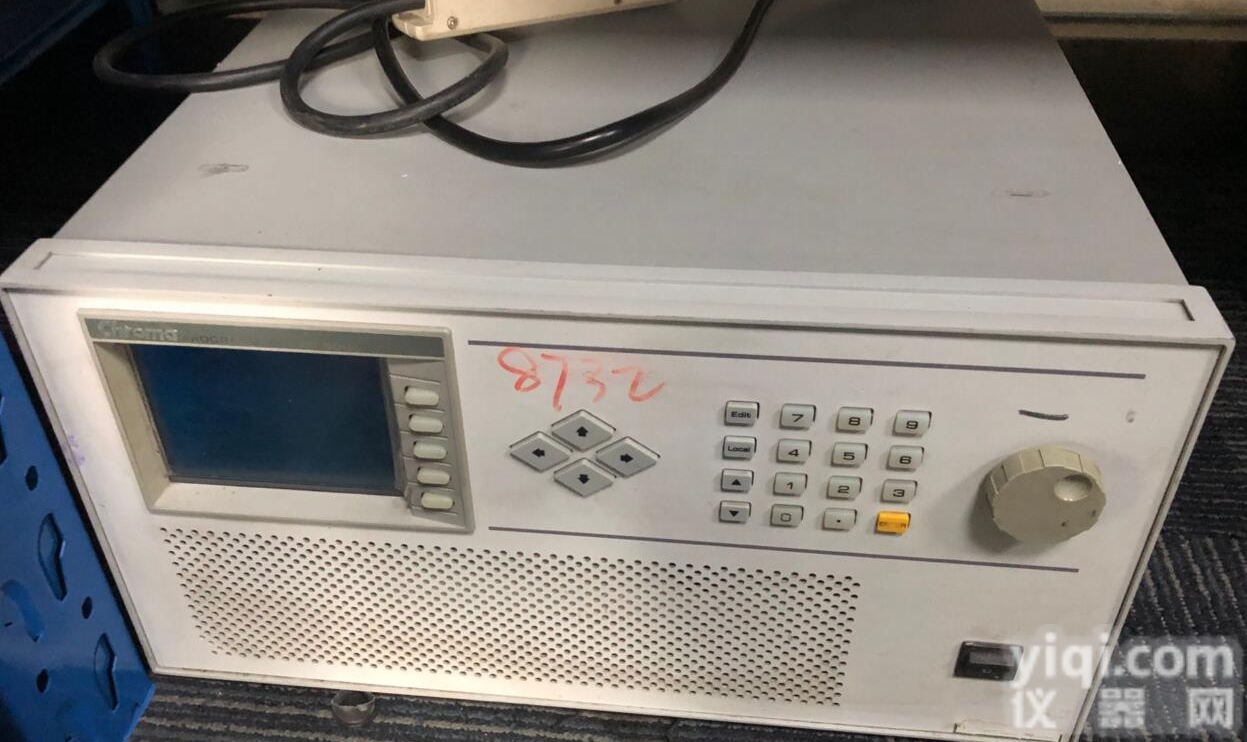

chroma technology corp. 6530 1-phase, 3kva, programmable ac power sources

dds waveform generation
progr voltage,current,frequency,phase & dist
vrms,irms,ipk+,ipk-,power
frequency,crest & power factors,va,var
built-in output isolation rela
adv.pwm technology

performance characteristics of the 6530

form factor	benchtop
no. of outputs	1 o/p
number of phases	1 ph
minimum frequency	15 hz
maximum frequency	2 khz
output 1 max. power	3000 watts
number of ranges	2 qty
output 1/range 1 max. current	30 arms (0 v to 150 v)
output 1/range 2 max. current	15 arms (0 v to 300 v)
output1/range1 max repetitive peak curre	75 a
output1/range2 max repetitive peak curre	37.5 a
line regulation, voltage	0.03 mv
load regulation, voltage	0.0003 mv
total harmonic distortion	1.29542 db
rms volts measurement	yes
rms current measurement	yes
frequency measurement	yes
power measurement	yes
dc volts measurement	no
power factor measurement	yes
crest factor measurement	yes
overcurrent protection	no
overvoltage protection	no
over-temperature protection	yes

programmability/connectivity of the 6530

user interface	proprietary
ports to peripheral devices	analog,gpib,rs232c

6530 compliance

ce compliance	compliant
ul compliance	not compliant
