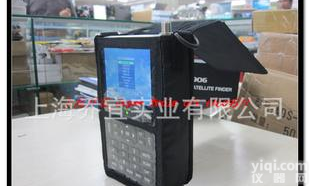

WS-6908 SAT-LINK专业寻星仪出口搜星仪调星仪器（外销热卖款）
- 产地：上海
- 供应商：上海乔宜实业有限公司
- 供应商报价： 730.00￥/台
- 标签：WS-6908 SAT-LINK专业寻星仪出口搜星仪调星仪器（外销热卖款）,WS-6908 SAT-LINK专业寻星仪出口搜星仪调星仪器（外销热卖款）价格,WS-6908 SAT-LINK专业寻星仪出口搜星仪调星仪器（外销热卖款）厂家
产品库
寻星仪外销热线款，可提供中文与英文版本
免费赠送皮套
标配包装：
免费赠送皮套包装
彩屏，可选择语言
免费赠送皮套包装
标配包装，带CD与其他配线0彩盒123产品描述WS6908接收DVB-S信号,能快速、精确调整接收天线，调准信号强的方向。Using WS6908 can receive DVB-S signal, adapt and connect antenna fast and accurately and adapt signal to the strongest and best position.WS6908采用微处理器控制，性能可靠、稳定，在LCD屏上可显示节目图像和信号强度、信号质量的信号条，也可选择显示大屏幕的数值。WS6908 uses microprocessor control with reliable and stable characteristcs,which can be displayed on LCD screen showing images ,siganal strenth and quality of signal bar and also large screen value.WS6908具有显示仰角/方位角、CBER/VBER(误码率)、S/N(信噪比),信号强弱及锁定报警音功能WS6908 has the functions to display EL/AZ,CBER/VBER, S/N, signal strength and lock sound alarm.WS6908能检测非常微弱的信号，提供有源天线馈电（OFF/13V/18V）并具有过流自动保护功能。WS6908 can detect very weak signals,provide active antenna feeder（OFF/13V/18V）. The meter has the over-current automatic protection.WS6908具有AV输入、输出功能。WS6908 has the AV in and AV out function.WS6908使用12V电源适配器，采用8.4V 3000mAH高容量锂电池，充饱电可连续使用4小时以上。WS6908 uses the 12V power adapter, 8.4V3000mAH high capacity LI-ION battery which can lastmore than 4 hours when it is full.1.1熟悉面板按键Panel keypadsNO. | Name | Function |
1 | 信号输入口signal input port | 连接天线connect antenna |
2 | LCD显示屏LCD screen | 显示菜单和节目图像 shows menu and image of programs |
3 | 锁定指示灯 lock indicator light | 信号锁定时灯亮 This light will be on when signal is locked. |
4 | 充电指示灯charge light | 充电灯亮,充饱熄灭 This light will be on when it is charging and off when it is full. |
5 | 电源指示灯power light | 开机灯亮 The light will be on when the meter is on. |
6 | 22K指示灯22K indicator | 22K打开指示灯亮 This light will be on when it is controlled by 22K. |
7 | 13/18V指示灯13V/18V indicator | 水平/垂直切换输出指示 V/H switch output indication |
8 | Fprefix = st1 ns = "urn:schemas-microsoft-com:office:smarttags" 1 F2 F3 F4 key | 功能键funtion key |
9 | ▲▼? ?OK key | 箭头键为光标移动,OK为确定 Arrow key uses to move cursor and OK key usesto confirm. |
10 | MENU key | 显示主菜单或返回前一个菜单 Shows main menu and return to previous menu |
11 | EXIT key | 取消选择和退出当前菜单 to cancel and exit from the present menu. |
12 | 0-9数字键numerical keys | 输入数字进行参数设置 to enter numerical parameter setting |
13 | +/-键add-subtract key | 空 |
14 | B.Light KEY | 开关LCD显示 Swithch LCD display |
15 | 静音键MUTE | 开关声音 to turn on or turn off the sound |
16 | TV/Radio | 电视和广播频道之间转换 Press to switch between TV and radio |
17 | M.INFO | 多频道显示快捷键 Shortcut key to display multiple programs |
18 | INFO k | 显示当前频道参数 To show parameter of current channel |
19 | USB port | 升级接口和多媒体接口 Port for Upgrade or connecting to multimedia |
20 | 电源接口Power Connection port | 外接电源接口 Port for connecting to external power supply |
21 | 电源开关Power Switch | 开启关闭整机电源 to turn on and turn offthe meter’s power |
22 | AV输出口AV output | 视音频输出audio and vedio output |
23 | AV输入口AV input | 视音频输入audio and vedio input |
