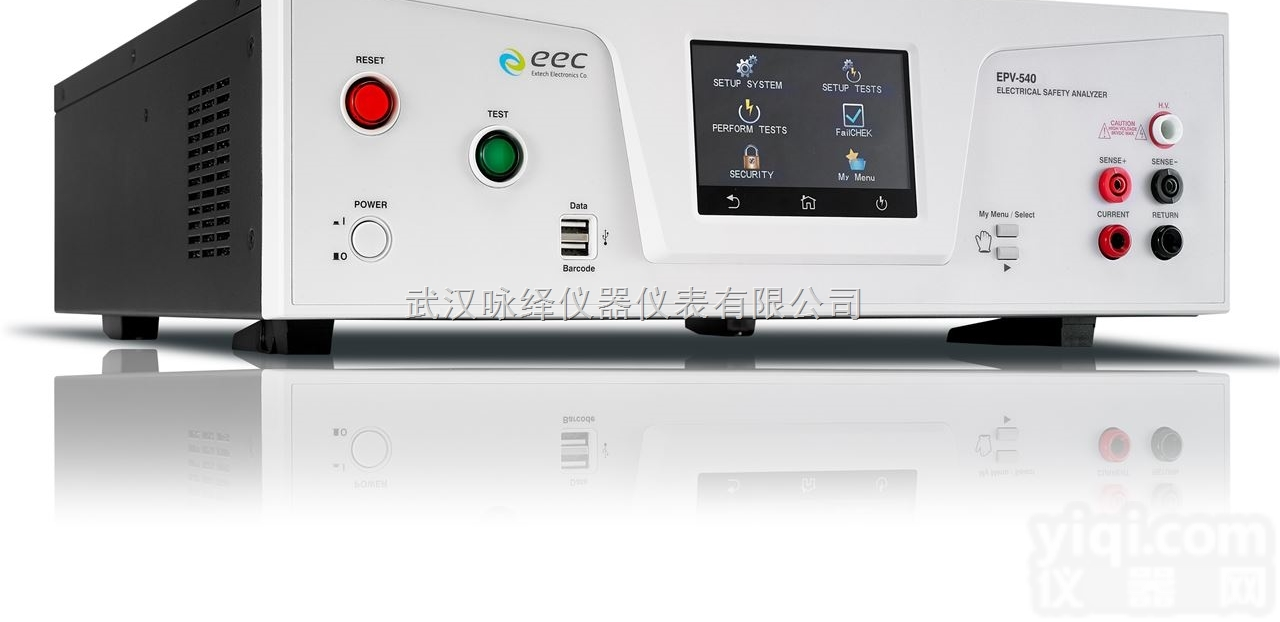

EPV-5OO 华仪太阳能专用全功能安规分析仪EPV-500_详细资料

品牌	其他品牌	应用领域	医疗/卫生,能源,电子/电气/通讯/半导体,航空航天,汽车及零部件

您可能感兴趣的产品

MODEL		EPV-540	EPV-530
INPUT RATING
Voltage		100 - 120Vac / 200 - 240Vac ±10% Auto Range
Apparent Power		1200 VA
Frequency		50 / 60Hz ± 5%
DC WITHSTAND VOLTAGE
Output Rating		8000 Vdc / 20mA max.
Output Voltage Range		0 - 8000 Vdc
Voltage Resolution		1 Vdc
Voltage Accuracy		± (1% of setting + 0.5% Range)
Current Measurement Range		0.0 - 20.00 mA
Current Resolution	0.0 - 349.9 µA	0.1 µA
	0.350 - 20.00 mA	0.001 / 0.01 mA
Current Accuracy		± (1% of reading + 0.5% Range)
Ramp Up Timer		0.1 - 999.9 s
Ramp Down Timer		0 , 1.0 - 999.9 s
Dwell Time		0, 0.4 - 999.9 s (0=continuous)
Timer Resolution		0.1 s
Timer Accuracy		± (0.1% of setting + 0.05s)
Ramp-HI, DC Current		0.0 - 20000 µA
INSULATION RESISTANCE
Output Rating		6k Vdc / 50,000 MΩ
Output Voltage Range		100 - 6000 Vdc
Voltage Resolution		1 Vdc
Voltage Accuracy		± (1% of setting + 0.5% Range)
Resistance Measurement Range		0.100 - 50,000 MΩ
Resistance Resolution		0.001 / 0.01 / 0.1 / 1 MΩ
Resistance Measurement Accuracy	0.100 - 999.9 MΩ under 100 – 499Vdc	±(8% of reading+0.1% Range)
	0.100 - 999.9 MΩ under 500 – 6000 Vdc	±(2% of reading+0.1% Range)
	1,000 - 9,999 MΩ under 500 – 6000 Vdc	±(5% of reading+0.1% Range)
	10,000 - 50,000 MΩ under 500 – 6000 Vdc	±(15% of reading+0.1% Range)
Ramp Up Timer		0.1 - 999.9 s
Ramp Down Timer		0.0, 1.0 - 999.9 s
Dwell Time		0, 0.5 - 999.9 s (0 = continuous)
Delay Timer		0.5 - 999.9 s
Timer Resolution		0.1 s
Timer Accuracy		± (0.1% of setting + 0.05s)
