型号：N9030A

厂商：安捷伦Agilent

成色：八成新以上

所有仪器7天之内有任何质量问题均可包退换。

深圳市鸿瑞科电子仪器有限公司

：罗志兵()  同步/号

：   ：770222046

：hrklzb 公司：http://www.hrk888。。ｃｏｍ

地  址：深圳市宝安区龙华民治街道牛栏前大厦主楼C 1005室

N9030A，N9030A，N9030A

主要销售、收购、租赁、维修的仪器有：网络分析仪、频谱仪、万用表、信号发生器、示波器、电源、电子负载、频率计、功率计、综合测试仪、音频分析仪、信号源等高频仪器。

主要经营的品Pai有：惠普（安捷伦/是德科技）、泰克、R&S罗德与瓦斯、福禄克、爱德万、安立、马可尼、松下、菊水、目黑、健伍等

功能

• 3 Hz 至 3.6、8.4、13.6、26.5、43、44 或 50 GHz；通过是德科技智能混频器可将频率扩展到 110 GHz，使用其他厂商的混频器Z高可扩展到 1.1 THz
• 10 MHz（标配）、25、40、85 或 160 MHz 分析带宽
• 新设备标配快速扫描功能；选件 FP2 可提供快速功率测量功能
• 可升级实时频谱分析仪能力，对持续时间Z短 3.57 µs 的信号具有 的截获概率

性能

• ± 0.19 dB 幅度精度
• +22 dBm 三阶截获（TOI）
• 利用前置放大器和本底噪声扩展（NFE）可达到 -172 dBm 显示的平均噪声电平（DANL）
• -83 dB（-88 dB 标称值）W-CDMA ACLR 动态范围（噪声校正功能启动）

测量应用和软件

•  支持超过 25 种测量应用软件，包括蜂窝通信、无线连通性、数字视频和通用测试
• 可对超过 75 种信号制式进行先进信号分析；软件在 PXA（配有 89600 VSA 软件）内部运行
• MATLAB 数据分析软件可执行通用数据分析、显示和自动测量
• 标配包括 Keysight PowerSuite 一键式功率测量

自动测试和通信接口

• 符合 LXI 标准，并支持 SCPI 和 IVI-COM
• USB 2.0、1000Base-T LAN、GPIB
• 远程编程语言兼容 PSA、8566/68、856x 等
• 通用的 X 系列用户界面/开放式 Windows 7 操作系统（标配）

- 将您现有 PXA 的操作系统从 Windows XP 系统过渡到 Windows 7 系统

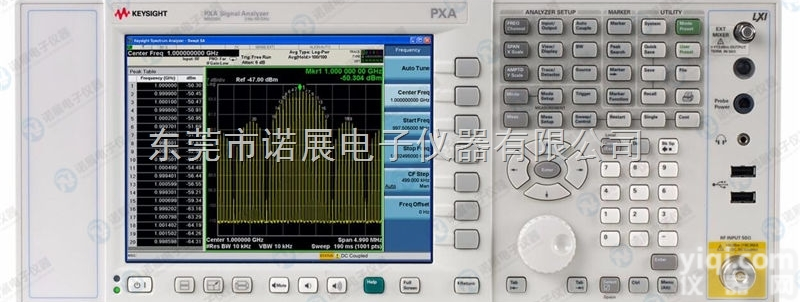

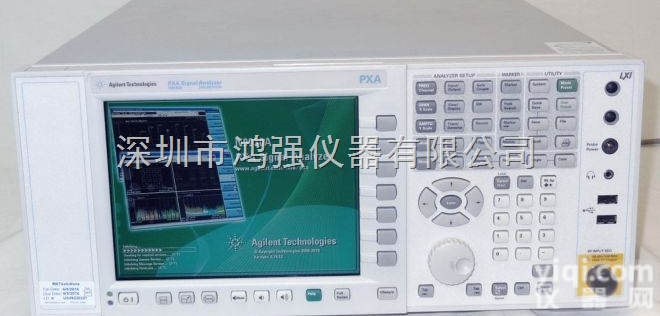

PXA 信号分析仪是 X 系列信号分析仪中性能Z高的产品，是您当前所用的高性能信号分析仪的演进型替代产品。了解进行过渡的原因。它提供了高达 50 GHz 的频率范围，并提供测量功能选件和硬件扩展选件（包括Z近推出的实时频谱分析仪选件）以确保在当前和未来均可进行灵活的测量，通过外混频可测量高达 1.1 GHz 的信号。PXA 具有先进的性能、灵活性、功能和可扩展性，可使您得心应手地处理航空航天、国防、商业通信等行业中要求苛刻的应用。

N9030A PXA 信号分析仪是 X 系列频谱分析仪中的一员，X 系列是综合了仪器、测量和软件的演进型信号分析方法。它的灵活性能够满足您在多个产品和项目中的商业和技术要求――无论是现在还是在未来。

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

深圳市鸿瑞科电子仪器有限公司

：罗志兵()  同步/号

：   ：770222046

：hrklzb 公司：http://www.hrk888。。ｃｏｍ

地  址：深圳市宝安区龙华民治街道牛栏前大厦主楼C 1005室

所有仪器7天之内有任何质量问题均可包退换。

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

选件及附件:

N9030A-1CM

Rack mount kit

N9030A-1CN

Front handle kit

N9030A-1CP

Rackmount and handle kit

N9030A-1CR

Rack slide kit

N9030A-503

Frequency range, 3 Hz to 3.6 GHz

N9030A-508

Frequency range, 3 Hz to 8.4 GHz

N9030A-513

Frequency range, 3 Hz to 13.6 GHz

N9030A-526

Frequency range, 3 Hz to 26.5 GHz

N9030A-543

Frequency range, 3 Hz to 43 GHz

N9030A-544

Frequency range, 3 Hz to 44 GHz

N9030A-550

Frequency range, 3 Hz to 50 GHz

N9030A-A6J

ANSI Z540-1-1994 Calibration

N9030A-AKT

Getting Started Guide PXA Russian Localization

N9030A-ALV

Auxiliary log video output

N9030A-AMG

Calibration + Uncertainties + Guardbanding (Accredited)

N9030A-B1X

Analysis Bandwidth, 160 MHz

N9030A-B25

Analysis Bandwidth, 25 MHz

N9030A-B40

Analysis bandwidth, 40 MHz

N9030A-B85

Analysis bandwidth, 85 MHz

N9030A-BBA

I/Q baseband inputs, analog

N9030A-C35

APC 3.5 mm connector

N9030A-CR3

Connector Rear, Wideband IF output

N9030A-CRP

Connector Rear, Programmable IF output

N9030A-DVR

DVD - ROM/CD-R/RW drive

N9030A-EA3

Electronic attenuator, 3.6 GHz

N9030A-EDP

Enhanced display package license

N9030A-EMC

Basic EMC functionality license

N9030A-ESC

External source control

N9030A-EXM

External mixing

N9030A-FP2

Fast Power, up to 40 MHz bandwidth

N9030A-KB2

US 65 key USB keyboard

N9030A-LNP

Low noise path

N9030A-MLP

Minimum loss pad, 50 to 75 ohm

N9030A-MPB

Microwave preselector bypass

N9030A-P03

Preamplifier, 3.6 GHz

N9030A-P08

Preamplifier, 8.4 GHz

N9030A-P13

Preamplifier, 13.6 GHz

N9030A-P26

Preamplifier, 26.5 GHz

N9030A-P43

Preamplifier, 43 GHz

N9030A-P44

Preamplifier, 44 GHz

N9030A-P50

Preamplifier, 50 GHz

N9030A-RT1

Real-time analysis up to 160 MHz BW, basic detection license

N9030A-RT2

Real-time analysis up to 160 MHz BW, optimum detection license

N9030A-RTR

Real-time spectrum recorder and analyzer application example, license

N9030A-SF1

Security Features, Exclude Launching Programs

N9030A-SF2

Security features, prohibit saving results

N9030A-SSD

Additional removable solid state drive

N9030A-TDS

Time Domain Scan - requires N6141A

N9030A-UK6

Commercial calibration certificate with test data

N9030A-W7X

Operating system, Windows Embedded Standard 7

N9030A-YAV

Y-axis video output

1CM013A

Rackmount Flange Kit 177.0mm H (4U) - Two Flange Brackets

BV000

BenchVue Spectrum Analyzer Pro Software License

N6141A

EMI Measurement Application

N6141A-2FP

EMI measurement application, fixed perpetual license

N6141A-2TP

EMI measurement application, transportable perpetual license

N6149A

IDEN/WIDEN/MotoTalk Measurement Application

N6149A-2FP

IDEN, WIDEN, Moto Talk Measurement application, fixed perpetual license

N6149A-2TP

IDEN/WIDEN/MotoTalk measurement application, transportable perpetual license

N6152A

Digital Cable TV Measurement Application

N6152A-2FP

DVB-C/J.83 Annex A/C measurement application, fixed perpetual license

N6152A-2TP

DVB-C/J.83 Annex A/C measurement application, measurement application, transportable perpetual license

N6152A-3FP

J.83 Annex B measurement application, fixed perpetual license

N6152A-3TP

J.83 Annex B measurement application, transportable perpetual license

N6152A-MEU

Minor enhancement update, fixed perpetual license

N6153A

DVB-T/H/T2 Measurement Application

N6153A-2FP

DVB-T/H Measurement application, fixed perpetual license

N6153A-2TP

DVB-T/H measurement application, transportable perpetual license

N6153A-3FP

DVB-T2 measurement application, fixed perpetual license

N6153A-3TP

DVB-T2 measurement application, transportable perpetual license

N6153A-MEU

Minor enhancement update

N615

ISDB-T/Tmm Measurement Application

N615-2FP

ISDB-T Measurement Application,fixed perpetual license

N615-2TP

ISDB-T measurement application , transportable perpetual license

N615-3FP

ISDB-Tmm, Measurement Application, fixed perpetual license

N615-3TP

ISDB-Tmm, measurement application, transportable perpetual license

N6156A

DTMB (CTTB) Measurement Application

N6156A-2FP

DTMB (CTTB) measurement application, fixed perpetual license

N6156A-2TP

DTMB (CTTB) measurement application, transportable perpetual license

N6158A

CMMB Measurement Application

N6158A-2FP

CMMB Measurement Application,fixed perpetual license

N6158A-2TP

CMMB measurement application, transportable perpetual license

N6171A

MATLAB Software

N6171A-M01

MATLAB-Basic Package, individual license - node-locked

N6171A-M02

MATLAB-Standard Package, individual license - node-locked

N6171A-M03

MATLAB-Advanced Package, individual license - node-locked

N9051B

Pulse Measurement Software

N9051B-2FP

Pulse measurement software, fixed perpetual, license

N9051B-2TP

Pulse measurement software, fixed, transportable perpetual license

N9051B-3FP

Phase and frequency measurements, fixed perpetual license

N9051B-3TP

Phase and frequency measurements, transportable perpetual license

N9051B-4FP

Extended analysis and statistics, fixed perpetual license

N9051B-4TP

Extended analysis and statistics, transportable perpetual license

N9051B-5FP

Deep capture, fixed perpetual license

N9051B-5TP

Deep capture, transportable perpetual license

N9051B-A2B

Upgrade from N9051A to N9051B

N9061A

Remote Language Compatibility Application

N9061A-1FP

Remote language compatibility, 8566/68, fixed perpetual license

N9061A-2FP

Remote language compatibility, 856xE/EC, fixed perpetual license

N9062A

SCPI Language Compatibility

N9062A-2FP

Remote language compatibility, R-and-S FSP, fixed perpetual license

N9063A

Analog Demodulation Measurement Application

N9063A-2FP

Analog Demodulation Measurement application, fixed perpetual license

N9063A-2TP

Analog demodulation measurement application, transportable perpetual license

N9063A-3FP

FM stereo measurement application, fixed perpetual license

N9063A-3TP

FM stereo measurement applications, transportable perpetual liense

N9063A-MEU

Minor enhancement update

N9064A

VXA Vector Signal Analysis Measurement Application

N9064A-1FP

Vector signal analysis application, VXA, fixed perpetual license

N9064A-1TP

Vector signal analysis application, VXA, transportable perpetual license

N9064A-2FP

Flexible digital modulation analysis measurement application, fixed perpetual license

N9064A-2TP

Flexible digital modulation analysis measurement application, transportable perpetual license

N9064A-MEU

Minor enhancement update

N9068A

Phase Noise Measurement Application

N9068A-2FP

Phase Noise Measurement application, fixed perpetual license

N9068A-2TP

Phase Noise measurement application, transportable perpetual license

N9068A-MEU

Minor enhancement update

N9069A

Noise Figure Measurement Application

N9069A-1FP

Noise figure measurement application, fixed perpetual license

N9069A-1TP

Noise figure measurement application, transportable perpetual license

N9069A-2FP

Noise figure measurement application advanced features, fixed perpetual license

N9069A-2TP

Noise figure measurement application advanced features, transportable perpetual license

N9069A-MEU

Minor enhancement update

N9071A

GSM/EDGE/Evo Measurement Application

N9071A-2FP

GSM/EDGE measurement application, fixed perpetual, license

N9071A-2TP

GSM/EDGE measurement application, transportable perpetual, license

N9071A-3FP

EDGE Evo measurement application, fixed perpetual license

N9071A-3TP

EDGE Evo measurement application, transportable perpetual license

N9071A-MEU

Minor enhancement update

N9071A-XFP

Single acquisition combined GSM/EDGE measurement application, fixed perpetual license

N9071A-XTP

GSM/EDGE combined measurement application, transportable perpetual, license

N9072A

CDMA2000 Measurement Application

N9072A-2FP

CDMA2000 measurement application, fixed perpetual license

N9072A-2TP

CDMA2000 measurement application, transportable perpetual license

N9073A

W-CDMA/HSPA+ Measurement Application

N9073A-1FP

W-CDMA Measurement application, fixed perpetual license

N9073A-1TP

W-CDMA measurement application, fixed transportable perpetual license

N9073A-2FP

HSDPA/HSUPA measurement application, fixed perpetual license

N9073A-2TP

HSDPA/HSUPA measurement application, transportable perpetual license

N9073A-3FP

HSPA+ Measurement Application, fixed perpetual license

N9073A-3TP

HSPA+ measurement application, transportable perpetual license

N9073A-MEU

Minor enhancement update

N9073A-XFP

Single acquisition combined W-CDMA measurement application, fixed perpetual license

N9073A-XTP

Single acquisition combined W-CDMA measurement application, transportable perpetual license

N9074A

Fixed WiMAX Single Acquisition Combined Measurement Application

N9074A-XFP

Single acquisition combined WiMAX measurement application, fixed perpetual, license

N9074A-XTP

Single acquisition combined WiMAX measurement application, fixed perpetual license

N907

WiMAX Measurement Application

N907-2FP

WiMAX measurement application, fixed perpetual, license

N907-2TP

WiMAX measurement application, transportable perpetual, license

N9076A

1xEV-DO Measurement Application

N9076A-1FP

1xEV-DO measurement application, fixed perpetual license

N9076A-1TP

1xEV-DO measurement application, transportable perpetual license

N9077A

WLAN 802.11a/b/g/n/ac Measurement Application

N9077A-2FP

WLAN 802.11a/b/g/j/p measurement application, fixed perpetual license

N9077A-2TP

WLAN 802.11a/b/g/j/p measurement application, transportable perpetual license

N9077A-3FP

WLAN 802.11n measurement application, fixed perpetual license

N9077A-3TP

WLAN 802.11n, measurement application, transportable perpetual license

N9077A-4FP

WLAN 802.11ac measurement application, fixed perpetual license

N9077A-4TP

WLAN 802.11ac measurement application, transportable perpetual license

N9077A-5FP

WLAN 802.11 list sequence measurement application, fixed perpetual license

N9077A-5TP

WLAN 802.11 list sequence measurement application, transportable perpetual license

N9077A-6FP

WLAN 802.11ah measurement application, fixed perpetual license

N9077A-6TP

WLAN 802.11ah measurement application, transportable perpetual license

N9079A

TD-SCDMA/HSPA Measurement Application

N9079A-1FP

TD-SCDMA measurement application, fixed perpetual license

N9079A-1TP

TD-SCDMA measurement application, transportable perpetual license

N9079A-2FP

HSPA measurement application, fixed perpetual license

N9079A-2TP

HSPA measurement application, transportable perpetual license

N9079A-MEU

Minor enhancement update

N9080B

LTE/LTE-Advanced FDD measurement application

N9080B-1FP

LTE FDD measurement application, fixed perpetual license

N9080B-1TP

LTE FDD measurement application, transportable perpetual license

N9080B-2FP

LTE-Advanced FDD measurement application, fixed perpetual license

N9080B-2TP

LTE-Advanced FDD measurement application, transportable perpetual license

N9080B-MEU

Minor enhancement update

N9081A

Bluetooth Measurement Application

N9081A-2FP

Bluetooth Measurement Application, fixed perpetual license

N9081A-2TP

Bluetooth measurement application, transportable perpetual license

N9081A-MEU

Minor enhancement update

N9082B

LTE/LTE-Advanced TDD measurement application

N9082B-1FP

LTE TDD measurement application, fixed perpetual license

N9082B-1TP

LTE TDD measurement application, transportable perpetual license

N9082B-2FP

LTE-Advanced TDD measurement application, fixed perpetual license

N9082B-2TP

LTE-Advanced TDD measurement application, transportable perpetual license

N9082B-MEU

Minor enhancement update

N9083A

Multi-Standard Radio (MSR) Measurement Application

N9083A-1FP

Multi-Standard Radio, MSR, measurement application, fixed perpetual license

N9083A-1TP

Multi-Standard Radio, MSR, measurement application, transportable perpetual license
