BLD-330 深圳眼镜架阻燃试验机/江门眼镜架阻燃测试机/江门眼镜架阻燃测试仪
- 型号：BLD-330
- 产地：东莞
- 供应商：东莞博莱德仪器设备有限公司
- 供应商报价：面议
- 标签：深圳眼镜架阻燃试验机/江门眼镜架阻燃测试机/江门眼镜架阻燃测试仪,1000,东莞博莱德仪器设备有限公司
产品库

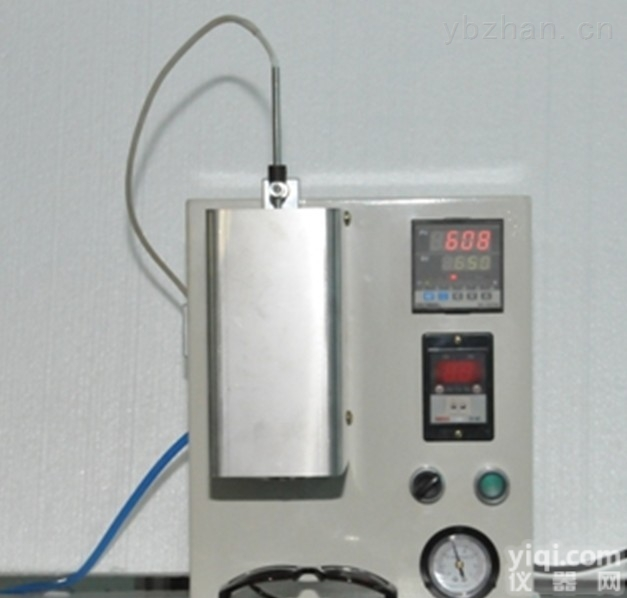

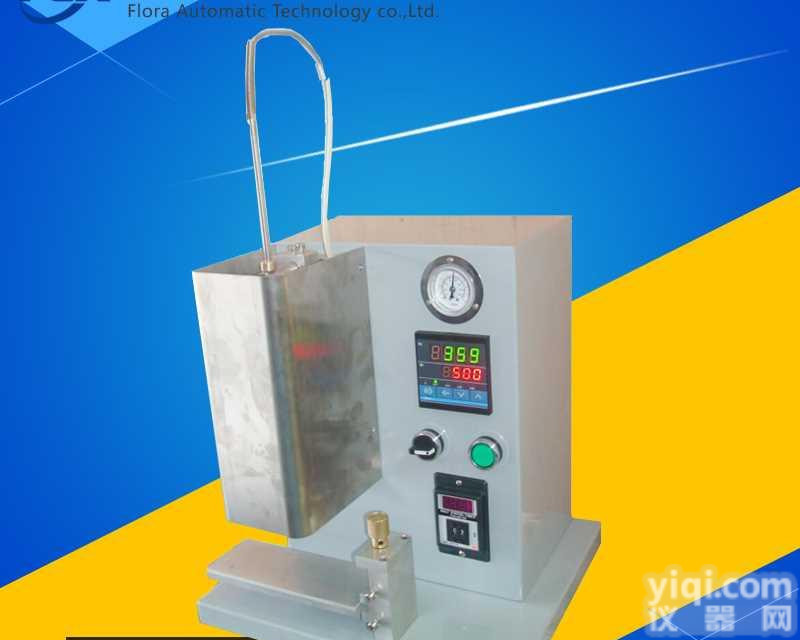

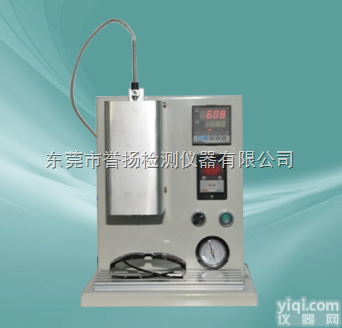

阻燃试验机简介
参考标准：ISO12870：2004、ISO14889：2003、EN1836：2005、EN166：
2002、等
测试目的：测定镜架物料是否具有要求的阻燃性能，保障使用者的安
全。
测试仪器要求：可加热规则圆柱体钢棒(φ6*300mm)的阻
燃性测试仪，可调节Z大温度为800℃，配备气动装置，可
自动升降加热棒，避免测试人员接触加热棒。
测试方法：
A.确定测试位置(不同物料要各自测试)；
B.放置好测试样品
C.启动仪器，待加热棒温度升至650摄氏度时放下加热棒，使其与
测试样品接触5秒，随后移开加热棒；
D.观察样品受测部分是否继续燃烧。
阻燃试验机参数：
1.热偶：φ6*300mm
2.气压自动控制
3.微电子自动计时
4.尺寸:35×40×45 CM(长×宽×高)
5.重量:25 Kg
6.电源：AC220V 50Hz参数：
1.热偶：φ6*300mm
2.气压自动控制
3.微电子自动计时
4.尺寸:35×40×45 CM(长×宽×高)
5.重量:25 Kg
6.电源：AC220V 50Hz
Introduction of fire retardant tester
Reference standard: ISO12870:2004, ISO14889:2003, EN1836:2005, EN166:
2002, etc.
Test purpose: to determine whether the material of the frame material has the requirement of fire retardant properties and the safety of the user
The whole.
Test instrument requirement: the resistance of the cylindrical steel rod (phi 6 * 300mm)
Flammability tester, adjustable maximum temperature is 800 ℃, equipped with pneumatic device, can be
Automatically lift the heating bar to prevent the tester from touching the heating rod.
Test method:
A. determine the location of the test (different materials should be tested separay);
B. place good test samples
C. Start the instrument. When the temperature of the heating bar rises to 650c, put the heating rod down and make it match
Test the sample for 5 seconds, then remove the heating rod.
D. observe whether the sample is continuing to burn.
Fire retardant tester parameters:
Thermocouple: phi 6 * 300mm
Automatic pressure control
Micro-electronic timing
Size: 35 x 40 x 45 CM (long x height)
5. Weight: 25 Kg
Power: AC220V 50Hz:
Thermocouple: phi 6 * 300mm
Automatic pressure control
Micro-electronic timing
Size: 35 x 40 x 45 CM (long x height)
5. Weight: 25 Kg
6. Power supply: AC220V 50 hz
