GPR-2800 IS-LD % OXYGEN TRANSMITTER – 2-WIRE LOOP POWERED

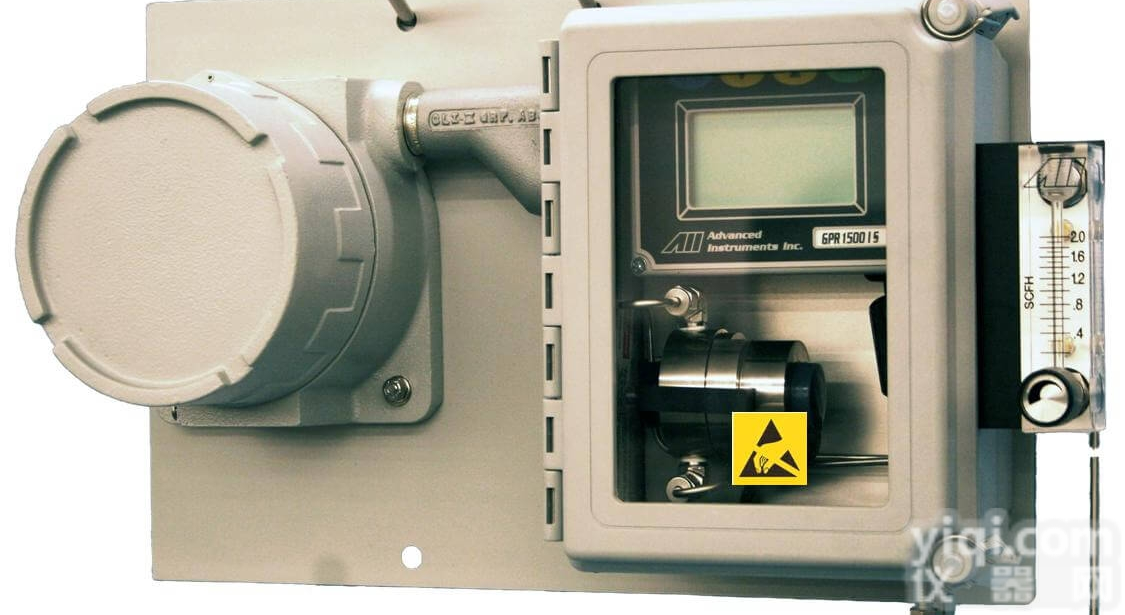

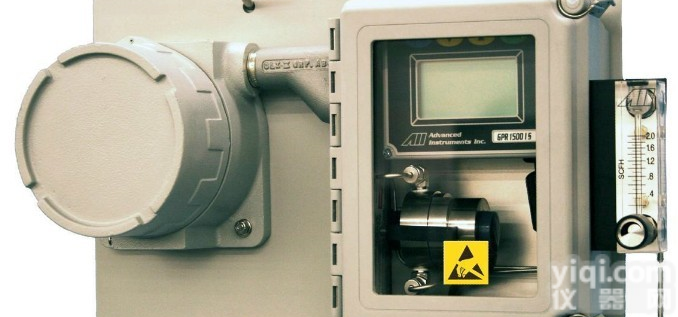

ATEX and cUL certified % oxygen transmitter measures O2. Features certification to ATEX Directive 94/9/EC and cUL designed exclusively for NATURAL GAS APPLICATIONS. This analyzer features an advanced galvanic trace PPM oxygen sensor, a 18 month operating sensor life, menu driven controls, and two (2) field selectable alarm set points. Pictured with optional A-3393 modular sample system designed to remove moderate amounts of free liquids and H2S from natural gas streams.



Certifications:

cUL Class I Div I Group C, D

ATEX Directive 94/9/ II 2G

Ex d [ib] ib IIB T4

Tamb -10oC to 50oC

*Accuracy: < 2% of FS range under constant conditions Analysis: 0-1%, 0-5%, 0-10%, 0-25% FS ranges; auto-ranging or fixed single range
 Application:Oxygen analysis in inert, hydrocarbon, hydrogen, mixed and acid (CO2) gas streams Approvals:ATEX Directive 94/9/EC
II 2 G Ex d [ib] ib IIB T4
Tamb -20?C to +50?C
 Area Classification:cUL for Class 1, Division 1, Group C, D hazardous Alarms:None
 Calibration:Air or certified span gas of O2 balance N2 Compensation:Barometric pressure and temperature
 Connections:1/4″ compression tube fittings Controls:Water resistant keypad; menu driven range selection, calibration and system functions
 Display:Graphical LCD 2.75” x 1.375”; resolution 0.001%; displays
real time ambient temperature and pressure		 Enclosure:NEMA Type 3R suitable for rain in outdoor applications
 Flow:Not flow sensitive; 1-2 SCFH recommended Linearity: + 1% of FS
 Pressure:Inlet – regulate to 5-30 psig to deliver 1-2 SCFH flow to transmitter; vent – atmospheric Power: 12-24 VDC 2 wire loop power
 Response Time:90% of final reading in < 2 minutes Sample System: Unique liquid drain sensor manifold, flow indicator
 Sensitivity: < 0.5% of FS range Sensor Model:GPR-12-333-LD for inert gases
 Sensor Life: 32 months in air at 25ºC and 1 atm Signal Output: 4-20mA
 Operating Range: Recommended -10ºto 45ºC Warranty: 12 months analyzer; 12 months sensor
 Wetted Parts: Stainless steel
