EAB-120 台湾华仪EAB-120_详细资料

MODEL	EAB-110	EAB-120	EAB-140	EAB-160
INPUT
Phase	1Ø	1Ø or 3Ø
Voltage	100V - 240V±10%	200V - 240V±10%	1Ø / 3Ø3W： 200V - 240V±10% 3Ø4W： 346V - 416V±10%
Frequency	47 - 63Hz
Max. Current	15	30	30	1Ø：4 3Ø3W：26A 3Ø4W：1
Power Factor	0.97
AC OUTPUT
Max Power	1000VA	2000VA	4000VA	6000VA
Max Current 1Ø (r.m.s)^*1	0-150V	9.2 A	18.4 A	36.8 A	55.2 A
0-300V	4.6 A	9.2 A	18.4 A	27.6A
Inrush Current (peak)	0-150V	36.8A	73.6A	147.2A	220.8A
0-300V	18.4A	36.8A	73.6A	110.4A
Phase	1Ø, (Linking Option 1Ø3W or 3Ø4W Poly-Phase)
Total Harmonic Distortion (THD)	<0.5% (Resistive Load) at 40.0 - 70.0Hz and output voltage within the 80 - 140Vac at Low Range or the 160 - 280Vac at High Range <1% (Resistive Load) at 70.1 - 500Hz and output voltage within the 80 - 140Vac at Low Range or the 160 - 280Vac at High Range <1% (Resistive Load) at 501 - 1000Hz and output voltage within the 100 - 140Vac at Low Range or the 160 - 280Vac at High Range
Crest Factor	≧3
Line Regulation	± 0.1 V
Load Regulation	± (1% of output +1V) at Resistive Load
Response Time	< 400 µsec
SETTINGS
Voltage	Range	5 - 300V, 150 / 300V Auto Range
Resolution	0.1V
Accuracy	±(1% of setting + 2counts)	±(1% of setting + 5counts)
Frequency	Range	40 - 1000Hz Full Range Adjust
Resolution	0.1Hz at 40.0 - 99.9Hz, 1Hz at 100 - 1000Hz
Accuracy	±0.03% of setting
Starting & Ending Phase Angle	Range	0-359∘
Resolution	1∘
Accuracy	±1∘(45 - 65HZ)
DC OUTPUT
Max Power	1000W	2000W	4000W	6000W
Max Current	0-210V	4.8A	9.6A	19.2A	28.8A
0-420V	2.4A	4.8A	9.6A	14.4A
Ripple & Noise (rms)	Range	L	< 500mV	< 700mV
H	< 800mV	< 1100mV
Ripple & Noise (p-p)	< 3.0Vp-p	< 4.0Vp-p
SETTINGS
Voltage	Range	0 - 210V / 0 - 420V Selectable	0-210V / 0-420V Selectable >5V
Resolution	0.1V
Accuracy	± (1% of setting + 2 counts)	± (1% of setting + 5 counts)
Current Hi Limit (OC Fold=OFF) OC Fold Back (OC Fold = ON)	Range	L	0.01 - 4.80A	0.01 - 9.60A	0.10 - 19.20A	0.10 - 28.80A
H	0.01 - 2.40A	0.01 - 4.80A	0.10 - 9.60A	0.10 - 14.40A
Resolution	0.01 Amps
Accuracy	± (2.0% of setting + 2counts)
MEASUREMENT
Voltage	Range	0 - 210V / 0 - 420V	0 - 210V / 0 - 420V Selectable >5V
Resolution	0.1 V
Accuracy	± (1% of reading + 2counts)	± (1% of reading + 5counts) > 5 V
Frequency	Range	0.0 - 1000 Hz
Resolution	0.1 Hz
Accuracy	±0.1Hz (501 - 1000Hz Accuracy ± 0.2Hz)
Current (AC & DC)	Range	L	0.005 A - 1.200 A	0.005 A - 2.400 A	-	-
H	1.00 A - 13.00 A	2.00 A - 26.00 A	0.05 A - 52.00 A	0.05 A - 78.00 A
Resolution	L	0.001A	-	-
H	0.01A
Accuracy	L	± (1% of reading + 5counts)
H	± (1% of reading + 5 counts)
Current Peak	Range	0.0A - 38.0 A	0.0 A - 76.0 A	0.0 A - 152.0 A	0.0 A - 228.0A
Resolution	0.1 A
Accuracy	± (1% of reading + 5 counts)
Power (AC)	Range	L	0.0 W - 120 W	0.0 W - 240 W	-	-
H	100 W - 1300 W	200 W - 2600 W	0 W - 5200 W	0 W - 7800 W
Resolution	L	0.1W	-	-
H	1W
Accuracy	L	± (2% of reading + 15counts ) at PF > 0.2	-
H	± (2% of reading + 5counts ) at PF > 0.2	± (2% of reading + 10counts ) at PF > 0.2
Power (DC)	Range	L	0.0 W - 120 W	0.0 W - 240 W	-	-
H	100 W - 1300 W	200 W - 2600 W	0 W - 5200 W	0 W - 7800 W
Resolution	L	0.1W	-	-
H	1W
Accuracy	L	± (2% of reading +5counts)
H	± (2% of reading +5counts)
Power Apparent (VA)	Range	L	0.0VA - 120.0VA	0.0VA - 240.0VA	-	-
H	100VA - 1300VA	200VA - 2600VA	0VA - 5200VA	0VA - 7800VA
Resolution	L	0.1VA	-	-
H	1VA
Accuracy	V×A ,Calculated value
Power Resistive (Q)	Range	L	0.0VAR~120.0VAR	0.0VAR~240.0VAR	-	-
H	0VAR~1300VAR	0VAR~2600VAR	0VAR~5200VAR	0VAR~7800VAR
Resolution	L	0.1VAR	-	-
H	1VAR
Accuracy	,Calculated value
Power Factor	Range	0.000-1.000
Resolution	0.001
Accuracy	W/VA, Calculated and displayed to three significant digits
Crest Factor	Range	0 to 10.00
Resolution	0.01
Accuracy	Apeak / Arms, Calculated and displayed to two significant digits
GENERAL
Transient (only for 40 - 70Hz)	Trans-Volt：0.0 - 300.0V, Resolution： 0.1V Trans-Site：0.0 - 25.0mS, Resolution： 0.1mS Trans-Time：0.5 - 999.9mS, Resolution： 0.1mS Trans-Cycle：0 - 9999, 0-Constant
Inrush Current	4 times current rating
Enhanced Over Load Capacity	Over current 110% can hold for 1000 ms without protection
Operation Key Feature	Soft key, Numeric key, Rotary Knob
Remote Input Signal (Option)	Test, Reset, Recall program memory 1 through 7
Remote Output Signal	Pass, Fail, Test-in-Process
Calibration	Front Panel Calibration
Key Lock	Yes, Password Driven
Synch Output Signal	ON / Event / OFF, Output Signal 5V ,BNC type
Alarm Volume Setting	Range: 0 - 9; 0=OFF, 1 is softest volume, 9 is loudest volume
Graphic Display	240 x 64 dot resolution Monographic LCD / Contrast 9 Levels 1-9
Interface (Option)	Ethernet, USB / RS232, GPIB, Linking Card, PLC Remote Input Card
Protection Circuits	OCP, OVP, OPP, OTP, RCP (Over Current, Over Voltage, Over Power, Over Temp)
Fan	Temperature Control
Rear Output	Terminal Block (L,N, G, Ls, Ns)
Rack mount Handles	Yes
PFC	PF≥ 0.97 at Full load
Effieciency	≥75% (at Full load)	≥80% (at Full load)
Auto loop cycle	0=Continuous, OFF, 2~9999
Over Current Fold Back	On/Off , Setting On when output current over setting Hi-A value it will fold back output voltage to keep constant output current is setting Hi-A value
CE Mark	Yes
Parallel Output for 1Ø Output	Yes
Linking Output for 3Ø Output	Yes
Operation Environment	0 - 40ºC / 20 - 80% RH
Dimension, mm^*2	W	430	430	430	430
H	133.5 (148)	133.5 (148)	267 (281)	400.5 (473)
D	530	530	530	530
Net Weight	20Kg	21Kg	40Kg	53Kg
*1 At working voltage 110V / 220V
*2 Figure in parentheses are maximum values	*product specifications are subject to change without notice.

MODEL

EAB-110

EAB-120

EAB-140

EAB-160

INPUT

Phase

1Ø

1Ø or 3Ø

Voltage

100V - 240V±10%

200V - 240V±10%

1Ø / 3Ø3W： 200V - 240V±10%

3Ø4W： 346V - 416V±10%

Frequency

47 - 63Hz

Max. Current

1Ø：4

3Ø3W：26A

3Ø4W：1

Power Factor

0.97

AC OUTPUT

Max Power

1000VA

2000VA

4000VA

6000VA

Max Current 1Ø (r.m.s)^*1

0-150V

9.2 A

18.4 A

36.8 A

55.2 A

0-300V

4.6 A

9.2 A

18.4 A

27.6A

Inrush Current (peak)

0-150V

36.8A

73.6A

147.2A

220.8A

0-300V

18.4A

36.8A

73.6A

110.4A

Phase

1Ø, (Linking Option 1Ø3W or 3Ø4W Poly-Phase)

Total Harmonic Distortion (THD)

<0.5% (Resistive Load) at 40.0 - 70.0Hz and output voltage within the 80 - 140Vac at

Low Range or the 160 - 280Vac at High Range

<1% (Resistive Load) at 70.1 - 500Hz and output voltage within the 80 - 140Vac at

Low Range or the 160 - 280Vac at High Range

<1% (Resistive Load) at 501 - 1000Hz and output voltage within the 100 - 140Vac

at Low Range or the 160 - 280Vac at High Range

Crest Factor

≧3

Line Regulation

± 0.1 V

Load Regulation

± (1% of output +1V) at Resistive Load

Response Time

< 400 µsec

SETTINGS

Voltage

Range

5 - 300V, 150 / 300V Auto Range

Resolution

0.1V

Accuracy

±(1% of setting + 2counts)

±(1% of setting + 5counts)

Frequency

Range

40 - 1000Hz Full Range Adjust

Resolution

0.1Hz at 40.0 - 99.9Hz, 1Hz at 100 - 1000Hz

Accuracy

±0.03% of setting

Starting & Ending

Phase Angle

Range

0-359∘

Resolution

1∘

Accuracy

±1∘(45 - 65HZ)

DC OUTPUT

Max Power

1000W

2000W

4000W

6000W

Max Current

0-210V

4.8A

9.6A

19.2A

28.8A

0-420V

2.4A

4.8A

9.6A

14.4A

Ripple & Noise (rms)

Range

< 500mV

< 700mV

< 800mV

< 1100mV

Ripple & Noise (p-p)

< 3.0Vp-p

< 4.0Vp-p

SETTINGS

Voltage

Range

0 - 210V / 0 - 420V Selectable

0-210V / 0-420V Selectable >5V

Resolution

0.1V

Accuracy

± (1% of setting + 2 counts)

± (1% of setting + 5 counts)

Current Hi Limit

(OC Fold=OFF)

OC Fold Back

(OC Fold = ON)

Range

0.01 - 4.80A

0.01 - 9.60A

0.10 - 19.20A

0.10 - 28.80A

0.01 - 2.40A

0.01 - 4.80A

0.10 - 9.60A

0.10 - 14.40A

Resolution

0.01 Amps

Accuracy

± (2.0% of setting + 2counts)

MEASUREMENT

Voltage

Range

0 - 210V / 0 - 420V

0 - 210V / 0 - 420V Selectable >5V

Resolution

0.1 V

Accuracy

± (1% of reading + 2counts)

± (1% of reading + 5counts) > 5 V

Frequency

Range

0.0 - 1000 Hz

Resolution

0.1 Hz

Accuracy

±0.1Hz (501 - 1000Hz Accuracy ± 0.2Hz)

Current (AC & DC)

Range

0.005 A - 1.200 A

0.005 A - 2.400 A

1.00 A - 13.00 A

2.00 A - 26.00 A

0.05 A - 52.00 A

0.05 A - 78.00 A

Resolution

0.001A

0.01A

Accuracy

± (1% of reading + 5counts)

± (1% of reading + 5 counts)

Current Peak

Range

0.0A - 38.0 A

0.0 A - 76.0 A

0.0 A - 152.0 A

0.0 A - 228.0A

Resolution

0.1 A

Accuracy

± (1% of reading + 5 counts)

Power (AC)

Range

0.0 W - 120 W

0.0 W - 240 W

100 W - 1300 W

200 W - 2600 W

0 W - 5200 W

0 W - 7800 W

Resolution

0.1W

Accuracy

± (2% of reading + 15counts ) at PF > 0.2

± (2% of reading + 5counts ) at PF > 0.2

± (2% of reading + 10counts ) at PF > 0.2

Power (DC)

Range

0.0 W - 120 W

0.0 W - 240 W

100 W - 1300 W

200 W - 2600 W

0 W - 5200 W

0 W - 7800 W

Resolution

0.1W

Accuracy

± (2% of reading +5counts)

Power Apparent (VA)

Range

0.0VA - 120.0VA

0.0VA - 240.0VA

100VA - 1300VA

200VA - 2600VA

0VA - 5200VA

0VA - 7800VA

Resolution

0.1VA

1VA

Accuracy

V×A ,Calculated value

Power Resistive (Q)

Range

0.0VAR~120.0VAR

0.0VAR~240.0VAR

0VAR~1300VAR

0VAR~2600VAR

0VAR~5200VAR

0VAR~7800VAR

Resolution

0.1VAR

1VAR

Accuracy

,Calculated value

Power Factor

Range

0.000-1.000

Resolution

0.001

Accuracy

W/VA, Calculated and displayed to three significant digits

Crest Factor

Range

0 to 10.00

Resolution

0.01

Accuracy

Apeak / Arms, Calculated and displayed to two significant digits

GENERAL

Transient (only for 40 - 70Hz)

Trans-Volt：0.0 - 300.0V, Resolution： 0.1V

Trans-Site：0.0 - 25.0mS, Resolution： 0.1mS

Trans-Time：0.5 - 999.9mS, Resolution： 0.1mS

Trans-Cycle：0 - 9999, 0-Constant

Inrush Current

4 times current rating

Enhanced Over Load Capacity

Over current 110% can hold for 1000 ms without protection

Operation Key Feature

Soft key, Numeric key, Rotary Knob

Remote Input Signal (Option)

Test, Reset, Recall program memory 1 through 7

Remote Output Signal

Pass, Fail, Test-in-Process

Calibration

Front Panel Calibration

Key Lock

Yes, Password Driven

Synch Output Signal

ON / Event / OFF, Output Signal 5V ,BNC type

Alarm Volume Setting

Range: 0 - 9; 0=OFF, 1 is softest volume, 9 is loudest volume

Graphic Display

240 x 64 dot resolution Monographic LCD / Contrast 9 Levels 1-9

Interface (Option)

Ethernet, USB / RS232, GPIB, Linking Card, PLC Remote Input Card

Protection Circuits

OCP, OVP, OPP, OTP, RCP (Over Current, Over Voltage, Over Power, Over Temp)

Fan

Temperature Control

Rear Output

Terminal Block (L,N, G, Ls, Ns)

Rack mount Handles

Yes

PFC

PF≥ 0.97 at Full load

Effieciency

≥75% (at Full load)

≥80% (at Full load)

Auto loop cycle

0=Continuous, OFF, 2~9999

Over Current Fold Back

On/Off , Setting On when output current over setting Hi-A value it will fold back output voltage to keep constant output current is setting Hi-A value

CE Mark

Yes

Parallel Output for 1Ø Output

Yes

Linking Output for 3Ø Output

Yes

Operation Environment

0 - 40ºC / 20 - 80% RH

Dimension, mm^*2

430

133.5 (148)

267 (281)

400.5 (473)

530

Net Weight

20Kg

21Kg

40Kg

53Kg

*1 At working voltage 110V / 220V

*2 Figure in parentheses are maximum values

*product specifications are subject to change without notice.

您可能感兴趣的产品

EAB-120 台湾华仪 EAB-120 模組化可程式交流電源

型号：EAB-120
EAB-140 台湾华仪EAB-140

型号：EAB-140
EAB-140 台湾华仪 EAB-140 模組化可程式交流電源

型号：EAB-140
EAB-110 台湾华仪 EAB-110 模組化可程式交流電源

型号：EAB-110
EAB-110 EEC台湾华仪EAB-110可编程交流电源

型号：EAB-110
EAB 系列台湾华仪EAB 系列模块化可编程交流电源

品牌：台湾华仪

型号：EAB 系列
台湾华仪 EAB系列模组化可编程交流电源供应器
DRH-120-48 明纬电源台湾 DRH-120-48

型号：DRH-120-48
DRH-120-24 明纬电源台湾 DRH-120-24

型号：DRH-120-24
HGP-33A-F1919R 台湾PR1-120新鸿齿轮泵

型号：HGP-33A-F1919R
EAB-110,EAB-120,EAB-140,EAB-160 模块化可程式交流电源

型号：EAB-110,EAB-120,EAB-140,EAB-160

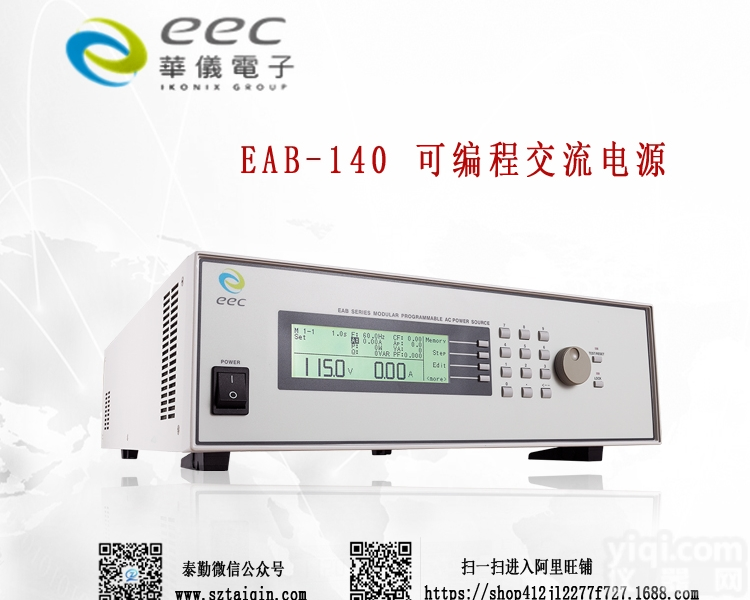

EAB-110/EAB-120/EAB-140 EAB 系列模块化可编程交流电源

品牌：台湾华仪电子

型号：EAB-110/EAB-120/EAB-140

Opt.612 PLC Remote I/P Interface
Opt.627 GPIB Interface Card
Opt.643 USB & RS232 PC Control Card
Opt.647 Ethernet Card
Opt.642 Parallel & Multiphase Linking Card
