WIKA PGT23.063
安全型不锈钢带电接点波登管压力表 inliGAUGE
Bourdon Tube Pressure Gauges with Electrical Output Signal
Stainless Steel, Safety Pattern Version
Model PGT23.063

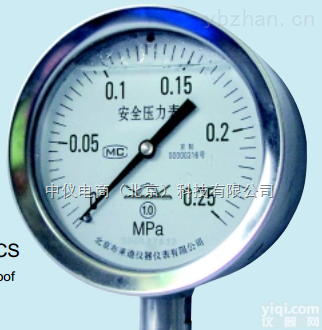

inliGAUGE Model PGT23.063
Applications
Acquisition and display of process values
Transmission of process value to the control room,4 ... 20 mA
Easy-to-read, local analogue display needs no power supply
Safety-related applications
Special Features
Plug and play“ means no configuration necessary
Measuring ranges from 0 ... 1 bar to 0 ... 1000 bar
Easy-to-read, nominal size 63 analogue display
S3 Safety pressure gauge per EN 837-1
Description
At any point with limited space, where the process pressure has to be indicated locally, and, at the same time, a signal is wanted to be transmitted to a central controller or remote control room, the model PGT23.063 inliGAUGE （Patent applied for, among others European Patent No.EP 06113003） can be used.
Through the combination of a mechanical measuring system and electronic signal processing, the process pressure can be read securely, even if the power supply is lost.The model PGT23.063 inliGAUGE fulfils all safety-related requirements of the relevant standards and regulations for the on-site display of the operating pressure of pressure vessels. An additional measuring point for the mechanical pressure indication can thus be saved.
The model PGT23.063 is built upon a high-quality, stainless steel pressure gauge in safety pattern version model 23x.30 with nominal size of 63. The pressure gauge is manufactured in accordance with EN 837-1.
The durable, fully-welded Bourdon tube measuring system produces a pointer rotation proportional to the pressure. An electronic angle encoder, proven in safety-critical automotive applications, determines the position of the pointer shaft – it is a non-contact sensor and therefore compley free from wear and friction. From this, the pressure-proportional, 4 ... 20 mA electrical output signal is produced.
The electronic WIKA transmitter, integrated into the highquality mechanical pressure gauge, combines the advantages of electrical signal transmission with the advantages of a local mechanical display.
The measuring span （electrical output signal） is set automatically along with the mechanical display, i.e. the scale over the full display range corresponds to 4 ... 20 mA.
Standard version
Nominal size in mm
63
Accuracy class
1.6
Scale ranges
0 … 1 up to 0 … 1000 bar
or all other equivalent vacuum or combined pressure and vacuum ranges
Process connection
Stainless steel 316L,
lower mount （LM）
G ¼ B （male）, 14 mm flats
Pressure element
Stainless steel 316L,
< 100 bar: C-type
≥≥ 100 bar: helical type
Movement
Brass
Dial
Aluminium, white, black lettering
Pointer
Aluminium, black
Case
Stainless steel, with solid baffle wall and blow-out back,
scale ranges ≤ 0 … 16 bar with compensating valve to vent
case, IP 54 ingress protection
Window
Polycarbonate
Bezel ring
Cam ring （bayonet type）, stainless steel
Electrical connection
Free cable, length 1 m
Options
Other process connection
Inverted electrical output signal
Electrical connection via miniature plug connector M8 x 1, 4-pin （cable plug with 5 metre length）
Other cable lengths, bare wire ends with 2 or 5 metre length. Others on request.
Assembly on diaphragm seals （see Diaphragm Seals Product Review）
Liquid filling Silicone M50 （only in assembly with plug connector）
Panel mounting flange stainless steel or polished
Rear mounting bracket, stainless steel
Laminated safety glass window （max. ambient temperature 60 °C）
Dimensions in mm
Standard version
Ordering information
Model / Scale range / Connection size / Connection location / Output signal / Options
