ＹＧ０８６ 缕纱测长仪-纱线支数仪-纺织仪器
- 型号：ＹＧ０８６
- 产地：江苏常州
- 供应商：常州市天祥纺织仪器有限公司
- 供应商报价：3800
- 标签：缕纱测长仪-纱线支数仪-纺织仪器,3800,常州市天祥纺织仪器有限公司
产品库

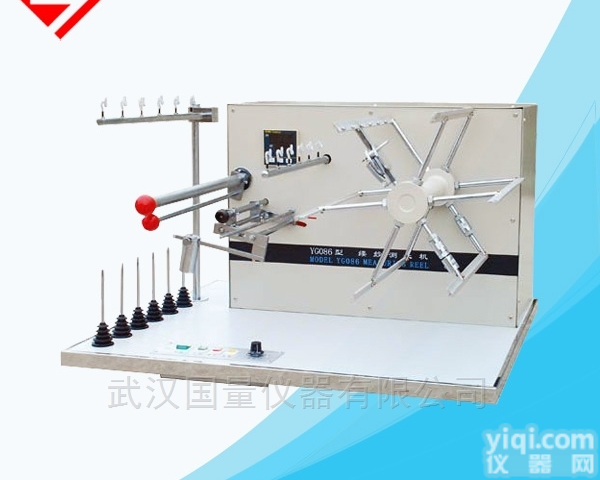

| YG086型缕纱测长仪 |
| Model YG086 Measuring Reel Tester |
| 缕纱测长仪用于将纱线管上试样纱线用纱框摇取缕纱，供纱线的线密度或支数的测定及缕纱 强度试验等用。性能符合GB/T4743-1995《纱线线密度的测定 绞纱法》。 |
| Used to rock skein by reel from sample yarn in bobbin for measurement of linear density or counttest of skein strength. The properties shoukd be in conformity with the requirement specified in GB/T4743-1995 "Determination of yarn density: Method of reeled yarn". |
| 缕纱测长仪主要技术参数：Main Technical Data |
| 1、可同时试验纱管 Number of bobbin to tested at the same time: 6 2、纱框周长 Circumference of reel YG086C:1000mm +/-1mm YG086E:54 in +/-16 in 出口专用for export only 3、摇纱横动往复宽度 Transverse width of skein 35mm 4、单根摇纱张力范围 Tensile range of single skein 0～100cN 5、外形尺寸 Outline size L780＊W660＊H480mm |
