| 类型： | 膜盒压力表 | 联接型式： | G ¼ B (male), 14 mm flats |
| 型号： | 611.13 | 精度等级： | 2.5 |
| 品Pai： | WIKA/威卡 | 环境温度： | -20 ... +60 °C（℃） |
| 加工定制： | 是 | 公称直径： | 50 63（mm） |
| 测量范围： | 0 ... 60 mbar to 0 ... 1000 mbar（MPa） | | |

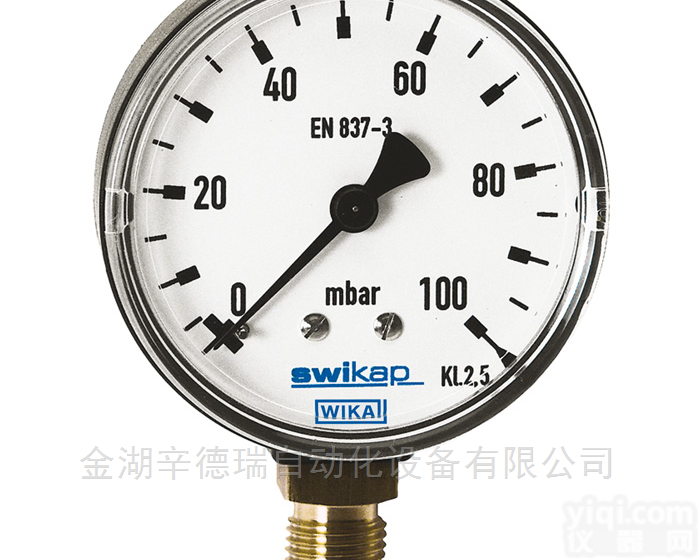

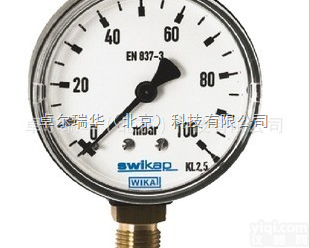

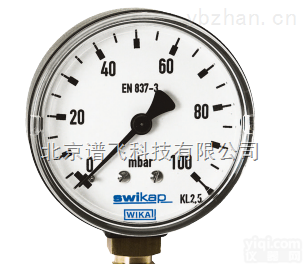

WIKA 611.13 膜盒式压力表 swikap
塑料系列 表圆直径50 63
Capsule Pressure Gauges
Model 611.13, Plastic Series
Applications
? For gaseous, dry and non-aggressive media
? Medical, vacuum, environmental, heating engineering, for contents measurement and filter monitoring Special Features
? Compact design and ingress protection IP 53
Case made of plastic
Other connection location on request
Low scale ranges from 0 ... 60 mbar
Maximum scale range 0 ... 1000 mbar
Description
Design
EN 837-3
Nominal size in mm
50, 63
Accuracy class
2.5
Scale ranges
0 ... 60 mbar to 0 ... 1000 mbar
or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitation
Steady: full scale value
Fluctuating: 0.9 x full scale valueOperating temperature
Ambient: -20 ... +60 °C
Medium: +60 °C maximum
Temperature effect
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.6 %/10 K of full scale value
Ingress protection
IP 53 per EN 60 529 / IEC 529
Standard version Process connection
Cu-alloy,

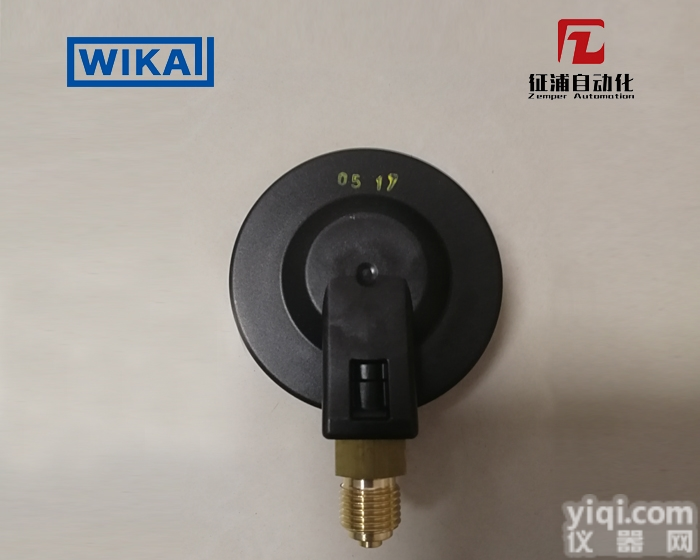

lower mount (LM) or centre back mount (CBM)
G ¼ B (male), 14 mm flats
Pressure element
Copper beryllium alloy (CuBe)
Sealing
NBR
Movement
Cu-alloy
Dial
Aluminium, white, black lettering
Pointer
Aluminium, black
Case
Plastic, black
Window
Plastic, crystal-clear, snap-fit in case
Dimensions in mm
Standard version
Options
? Other process connection
Overpressure and vacuum safety (on request)
Accuracy class 1.6
Zero adjustment, in front
Case made of steel, black (Model 611.23)
Restrictor
Dimensions in mm
Standard version
Ordering information
Model / Nominal size / Scale range / Connection size / Connection location / Options
?
