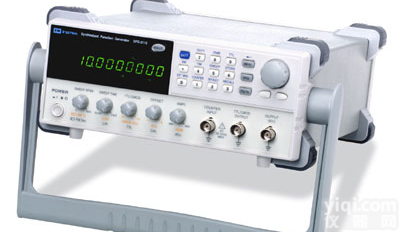

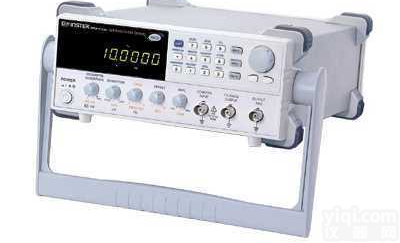

SFG-2107数字合成信号源SFG-2107|固纬SFG-2107数字合成信号 SFG-2107数字合成信号源SFG-2107|固纬SFG-2107数...

main

frequency range
(for sine, square)

0.1hz~7mhz

frequency range
(for triangle)

0.1hz~1mhz

frequency resolution

0.1hz

frequency stability

∮ 20 ppm

frequency accuracy

∮ 20 ppm

frequency aging

∮ 5 ppm / year

output function

sine, square, triangle

amplitude range

10vpp(into 50load)

flatness(sinewave relative to 1khz)

≌∮ 0.3db,0.1hz°1mhz; ≌∮ 0.5db,1mhz°4mhz; ≌∮ 2db, 4mhz°10mhz

impedance

50∮10

attenuator

-20db∮1db⊙2

dc offset

≌-5v°≈+5v(into 50load)

duty control range

20% to 80% below 1mhz (square wave only)

duty control resolution

1%

display

9 digits led display

sine wave

harmonics distortion

-55dbc,0.1hz°200khz; -40dbc,0.2mhz°4mhz; -30dbc,4mhz°10mhz
(specification applied from max. to 1/10 level)

triangle wave

linear

≠98,0.1hz°100khz;≠95,100khz°1mhz

square wave

symmetry

∮ 1% of period +4ns to 0.1hz°100khz ;rise or fall time; ∝25ns at maximum output.(into 50load)

cmos output

level

4vpp∮1vpp°14.5vpp∮0.5vpp adjustable; rise or fall time; ∝120ns

ttl output

level

≠3vpp ; fan out; 20 ttl load ; rise or fall time ; ∝25ns

sweep operation

sweep/rate

100:1 ratio max. and adjustable

sweep/time

0.5sec°30sec adjustable

sweep/mode

lin. / log. switch se-lector

amplitude modulation

depth & mod. frequency

0°100 ; 400hz(int),dc°1mhz(ext)

carrier bw

100hz°5mhz(-3db)

ext sensitivity

∝10vpp for 100modulation

frequency modulation

deviation & mod. frequency

0°∮5 ; 400hz(int),1khz(ext)

ext sensitivity

∝10vpp for 10 modulation

frequency counter

range

5hz°150mhz

accuracy

time base accuracy∮1count

time base

∮20ppm(23∮5) after; 30 minutes warm up

resolution

the maximum resolution is 100nhz for 1hz and 0.1hz for 100mhz

input impedance

1m/150pf

sensitivity

∝35mvrms(5hz~100mhz)
∝45mvrms(100mhz~150mhz)

store/recall function

10 groups of setting memories

power source

ac115v, 230v∮15%,50/60hz

accessories

instruction manual⊙1
power cord x 1
gtl-101⊙2

dimension & weight

107(w)⊙266(h)⊙293(d) m/m
approx. 3.2kg
