MPJ-K-F面板安装式热电偶插座|MPJ-K-F美国Omega面板安装式等温插座

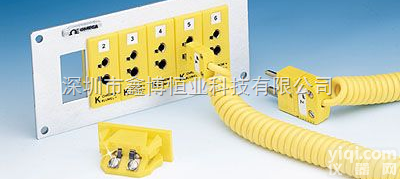

The MPJ Miniature Panel Jack requires less than half of the panel area required by the Standard Size connectors. A simple push-on clip is all that is required to retain the connector in a rectangular cutout, or the optional MSS snap strip can be used to mount a row. Angled terminal screws allow wiring to be done after panel assembly.
MOUNTING DIMENSIONS
8.1 x 16.7 mm 0.32 x 0.66"
Cutout Required
14.3 mm 0.56"
Centers Horizontally
23.8 mm 0.94"
Centers Row to Row Minimum
For complete product specifications see the Related Links section at the bottom of this page.
| Part Number | Description |
| MPJ-K-F | Female miniature panel jack with type K calibration |
| MPJ-T-F | Female miniature panel jack with type T calibration |
| MPJ-J-F | Female miniature panel jack with type J calibration |
| MPJ-E-F | Female miniature panel jack with type E calibration |
| MPJ-R/S-F | Female miniature panel jack with type R/S calibration |
| MPJ-G-F | Female miniature panel jack with type G calibration |
| MPJ-C-F | Female miniature panel jack with type C calibration |
| MPJ-D-F | Female miniature panel jack with type D calibration |
| MPJ-U-F | Female miniature panel jack with Uncompensated or type B calibration |
| MPJ-N-F | Female miniture panel jack with type N calibration |
| MPJ-CAP-12 | Dust caps, pkg of 12. Other pkg sizes available |
| MH-MPJ-10 | Extra Mounting Clips, pkg of 10. Other pkg sizes available |
| 1-12S | Extra ID number labels for 1 thru 12. Also available for other number series. |
