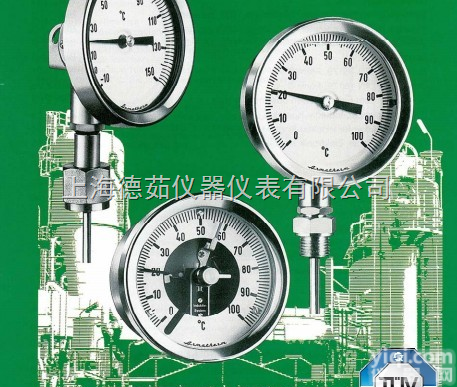

Industrial dial thermometer withgas filled measuring system  3000  page 1.1
Measuring range acc. to DIN EN 13190
Range Division Code no. Range Division Code no.
-40 +40°C 1° 10 0 +160°C 2° 46
-40 +60°C 2° 11 0 +200°C 2° 47  special ranges
-30 +50°C 1° 15 0 +250°C 5° 48  upon request
-20 +40°C 1° 18 0 +300°C 5° 49
-20 +60°C 1° 20 0 +350°C 5° 50
0 +60°C 1° 42 0 +400°C 10° 51
0 +80°C 1° 43 0 +500°C 10° 52
0 +100°C 1° 44 0 +600°C 10° 53
0 +120°C 2° 45 0+ 700°C 10° 54
Graduation:Centigrade or Fahrenheit, dual scale in °C und °F possible.
Dimension of stem:Depends on length of capillary tube and stem diameter.
Longer capillary tube leads to a volume increase of feeler.
Sample: sensitive feeler lengths
feeler Ø sensitive feeler length
8mm 120mm length including
10mm 60mm  capillary tube ≤3 m
12mm 40mm
Express your specific requirements, we will offer the best technical solution
