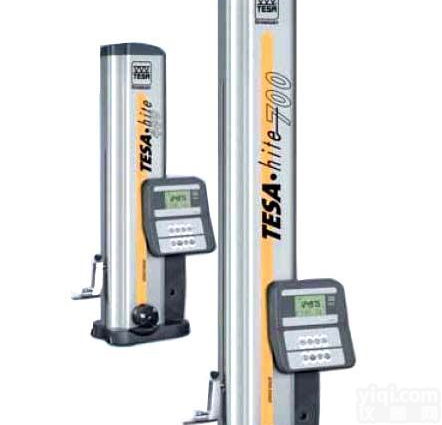

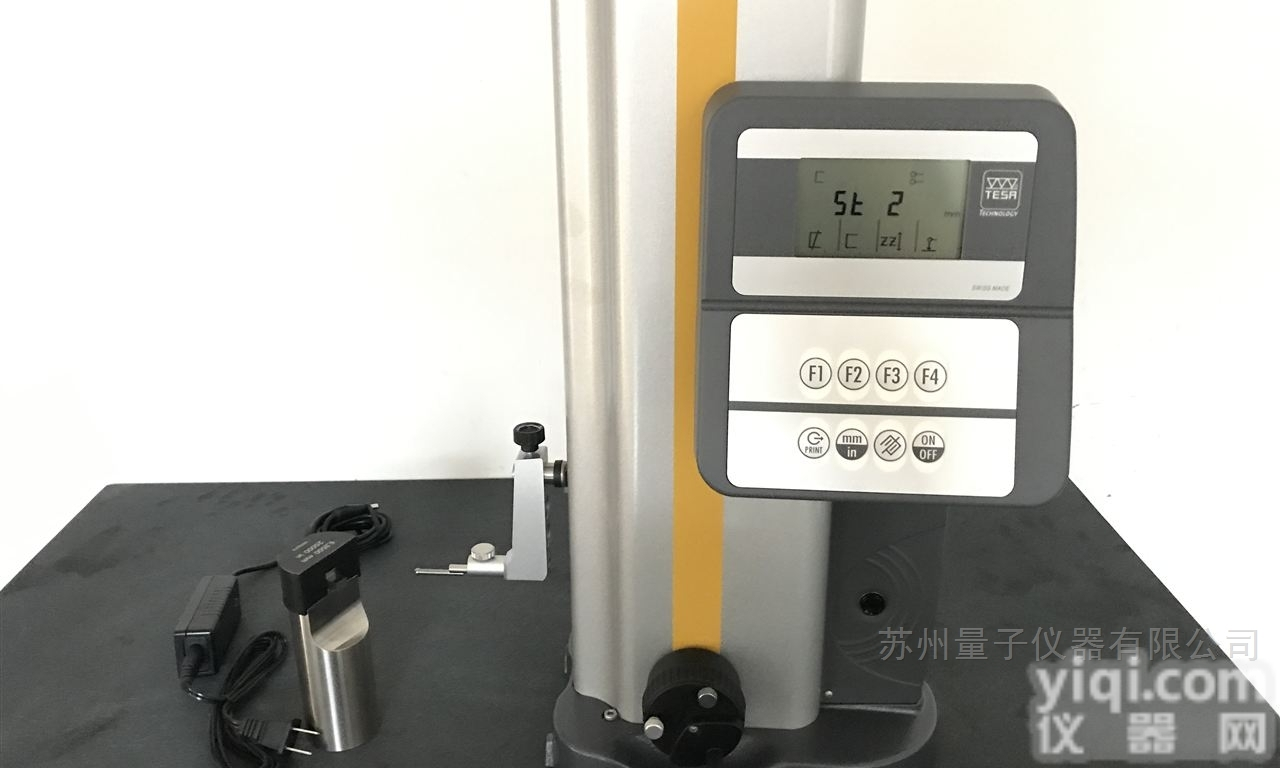

tesa hite 400 /700 气浮式测高仪 高度尺寸测量仪

产品信息
集 tesa 25 年的研发经验 , 推出极高性价比的测高仪tesa-hite 400/700她必定成为车间的配置?         更大的测量范围?         电子装置具有ip65 的防护等级以防止液体和灰尘的侵入?         内置气浮,已固定安装的面板?         采用tesa 的, 在测量直径时自动寻找顶点?         可进行平行度和垂直度的测量?         tesa 的光电测量系统?         与micro-hite 兼容的附件, 包括测杆及夹持块?         每台测高仪带有scs 校准证书

model/ 型号规格



tesa hite

400

700

测量范围/ measuring span

mm

415

715

应用范围/ application range

配标准附件/ with standard accessory

配订货号00760057 的测头座

 with probe in-sert holder no. 00760057

配订货号s07001622 的测头座

with probe in-sert holder no. s07001622

mm





 570



 625



795



770



925



1095

Z大允许误差( 带标准附件)/ max. permissible error, with standard accessory

(2.5+ 4l)μm,

(l 单位为米/l in m)

重复性( 带标准附件)/ repeatability, with standard accessory

平面:2μm  孔内: 3μm

Z大运动速度/max. displacement speed

500 mm/s

测量力/measuring force

1.5n±0.5n

机械垂直度/ mechanical perpendicularity

μm

<10

<15

主机重量/ net weights, without panel and battery pack

kg

27

32

充电一次使用时间/ life time of the rechargeable battery

60 小时/ 60hours
