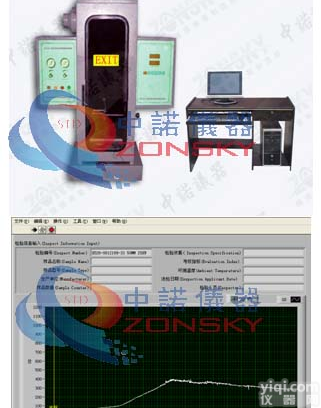

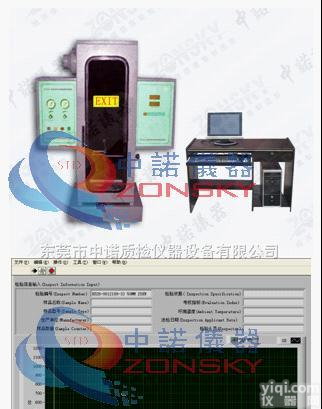

ZY6166A建筑材料分解烟密度试验机
Building materials decomposition smoke density tester
一、适用范围：Scope of application:
适用于建筑材料及其制品燃烧时静态产烟量的测定，也可用于其它固体材料燃烧时静态产烟量的测定。
Suitable for building materials and its products the determination of static produce smoke during burning, can
also be used for other solid material burns the determination of static produce smoke.
二、符合标准：Conform to the standard:
GB/T8627标准要求。
GB/T8627 standard requirements.
三、主要参数：The main parameters:
3.1气源： 95%丙烷气，或同等纯度的煤气（客户自备）；
3.2燃烧灯：为本生灯，长度260mm，喷嘴直径0.13mm，与烟箱成45°角；
3.3光电系统：光源为灯泡，功率15W，工作电压6V；
3.4排风系统：本机器装有QL排风扇，试验完后，能将废气排出室外；
3.5烟密度测量范围：0~；
3.6烟密度测量准确度：±3%；
3.7接收器：为硅光电池，透光率0%为无光线通过，透光率光无遮挡完全通过；
3.8经处理后的焦距：60~65mm；
3.9主燃烧器工作压力：276KPa（可调）；
3.10辅助燃烧器压力：138KPa（可调）；
3.11自动计时，自动点火，自动排烟；光通量可自动校正；
3.12电脑控制，含透光率测量软件一套，可输出曲线报表，数据自动保存并可打印机；
3.1 source: 95% propane gas, gas () by advertisers or equivalent purity;
3.2 burning lamp: in the Bunsen burner and a length of 260 mm, the nozzle diameter of 0.13 mm, with smoke box
into a 45 ° Angle;
3.3 photovoltaic system: light source for the light bulb, 15 w, working voltage of 6 v.
3.4 exhaust system: this machine is equipped with powerful fan, after the test, to exhaust gas emitted;
3.5 smoke density measurement range: 0 ~ ;
Smoke density measurement accuracy: 3.6 + / - 3%;
Receiver: 3.7 as the silicon photocell, light transmittance 0% without light through a light transmittance
light shining through;
After processing the focal length of the 3.8:60 ~ 65 mm;
3.9 main burner work stress: 276 kpa (adjustable);
3.10 assist burner pressure: 138 kpa (adjustable);
3.11 automatic timer, automatic ignition, automatic exhaust; Luminous flux can be automatic correction;
3.12 computer control, including light transmittance measurement software, a set of statements can be output
curve, and printers are stored in the data;

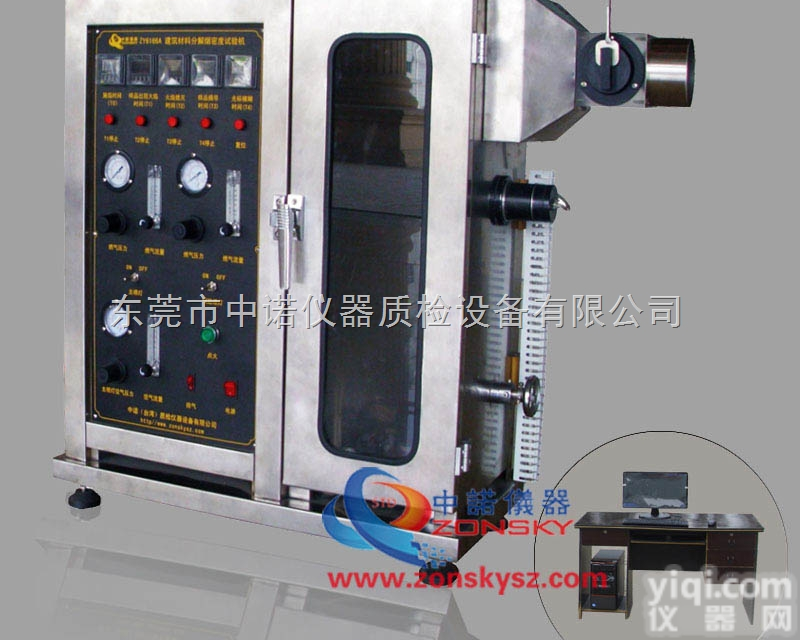

四、设备结构：Equipment structure:
4.1本机器由燃烧箱、电脑控制系统，两部份组成；
4.2燃烧箱尺寸：L300*W300*H790（mm）；
4.3燃烧箱采用优质不钢板，数控机床加工成型，圆弧造型美观大；
4.4内部零配件均采用优质不锈钢材料制作，防锈性能优良；
4.1 the machine by burning box, computer control system, two copies;
Combustion box size: 4.2 W300 L300 * * H790 (mm);
4.3 combustion box adopts high quality steel plate, the numerical control machine tool processing molding, arc
aesthetically pleasing;
4.4 the internal parts are made of high-quality stainless steel materials excellent rust resistance;
