小动物体温维持仪,大鼠小鼠手术保温

产品信息

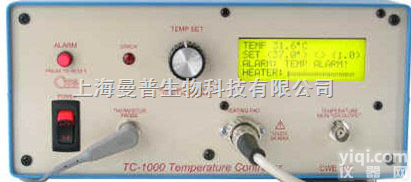

体温维持仪(动物手术保温毯)(对手术中的动物和术后恢复的动物进行保温,并可进行动物体温测量,方便实用,敬请来电咨询)

动物手术保温毯具有测温、控温和电加热功能,用于维持试验动物正常体温。本仪器测、控精度高,响应迅速快,工作稳定可靠,对试验动物无电磁干扰。

动物手术保温毯的技术性能:

1、 测温范围:0.0℃~99.9℃
2、 控温范围:0℃~80℃
3、 测、控温精度:0℃~80℃ 范围内误差≤±0.2℃
4、 加热电源额定输出功率:40W
5、 设定按键:触摸按键
6、 数字显示:数码管
7、 工作电源:50Hz  AC220V±10%
8、 仪器尺寸:250×195×100mm
9、 加热毯尺寸:500×300mm

动物手术保温毯的使用方法:

1、 仪器连接;
A、 将加热毯的连接线接入仪器后面板上的“加温”插口上;
B、 将传感器接入仪器后面板上的“传感器”插口上;
C、 连接电源线;
2、 温度的设定;

将试验动物包裹加热毯内,将传感器检测头插入试验动物肛门。传感器的插入深度以不少于全长的3/4为宜。数码管检测到的温度是动物体内的温度值。


多种肛温探头和保温毯可供选择,敬请来电咨询:






The homeothermic blanket allows a precise control of the body temperature in small laboratory animals.

The system consists of a blanket or a pad, a control unit and a temperature probe. The desired body temperature can be set between 32°-45°C and is easily set on the front panel of the control unit. The body temperature is then controlled by the linear temperature probe connected to the control unit. When the body temperature falls below the target, the control unit increases the temperature of the pad/blanket.

The underlay can be a hard and rigid pad, suitable for stereotaxic surgery as it fits perfectly into the stereotaxic frame, or a soft blanket. The blankets heat is maintained by the HB101 control unit that works with a DC power supply to minimize electrical noise interference to the surrounding electronic apparatus.

The unit allows the user to adjust the animal body temperature between 32 to 45°C. The heat is controlled with a rectal probe. The control unit can be delivered with a RS-232 output & SEDACOM 2.0 software, enabling the user to see the temperature data on a computer at selected time intervals.




可根据需要,选择功率TCAT型手术保温毯:



与普通反馈式电子温控器不同,这套系统使用多种热电耗式肛温探头,测温比普通的电阻探头更快捷,更灵敏,同时探头型号多样,非常适于做大小鼠实验,适用于测量各种组织部位的温度测量。
这套设备可以连接加热装置,可选配AC型的加热灯,或者DC型的加热垫。




温度加热板
两种型号可选:尺寸 W×L
大号:11.1×21.6cm
小号:3.8×10.2cm
电源:25W DC
厚度:0.65cm
温度过载保护功能
与温控仪配套使用
温度反馈探头
可以测量新生鼠、小鼠、大鼠、兔子、狗等动物;测试部位可以是肛温、皮肤、口腔、脑组织、其它组织


大鼠小鼠专用温度探头:
  RET-3 RET-2
适用动物 小鼠 大鼠
探头直径 0.71mm 1.5mm
时间常数 0.5sec 0.8sec
引线长 1.5m 1.5m
热电偶丝及探头材料 铜-康铜不锈钢 铜-康铜不锈钢
探头长度 19.1 mm 25.4 mm
准确度 0.1℃ 0.1℃
消毒 用气(ETO)或戊二醛 用气(ETO)或戊二醛
温度量度 125 °C 125 °C



可选配不锈钢手术垫板:
