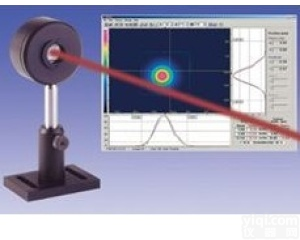

Beamon光束质量分析仪
- 品牌：duma
- 型号：Beamon
- 产地：进口
- 供应商：杭州秒动科技有限公司
- 标签：Beamon光束质量分析仪, 货号：, duma, Beamon, 杭州秒动科技有限公司,Beamon光束质量分析仪报价/价格,销售，使用，原理，操作，说明书，资料下载，促销，技术参数，维修，保修，售后服务，代理商，经销商，技术支持，进口/国产，用途
产品库
秒动科技供应BeamOn系列光束质量分析仪，组成：CCD相机、滤光片（NG4、NG9、NG10）、USB2.0通讯、CD软件、操作手册、包装箱子，该系列光束质量分析仪用于连续或脉冲激光器的光束质量的分析，包含：强度分布、光束宽度、光束形状、光束位置、激光功率。
|
Model |
Descriptions |
|
BeamOn-VIS-NIR |
CCD camera (VIS 350-1310nm), a post, a set of 3×NG Schott filters (NG4,NG9,NG10) in housing on a filter wheel, a USB2.0 interface, CD disk, carrying case |
|
BeamOn-UV-NIR |
CCD camera (UV 190-1310nm), a post, a set of 3×NG Schott filters (NG4,NG9,NG10) in housing on a filter wheel, a USB2.0 interface, CD disk, carrying case |
|
BeamOn-IR1550-USB |
CCD camera (VIS 350-1310nm AND IR1550 +/-50nm), a post, a set of 3×NG Schott filters (NG4,NG9,NG10) in housing on a filter wheel, a USB2.0 attachment, CD disk, carrying case |
|
BeamOn HR |
Complete system with a camera, a USB2.0 cable, a post, a set of 3×ND filters in housing on a filter wheel (manual), software on CD disk, carrying case |
|
BeamOn HR-AFW |
Complete system with a camera, a USB2.0 cable, a post, a set of 3×ND filters in housing on motorized Automatic Filter Wheel, software on CD disk, carrying case |
|
BeamOn 2/3 |
2/3˝ CCD camera (VIS 350-1100nm), a post, a set of 3×NG Schott filters (1/8, 2x1/16) in housing, USB2.0 interface, CD disk, carrying case |
|
BeamOn LB |
USB2.0 type system for remote measurements, with a camera, USB2.0 cable, power supply 12V DC, 3×filters 1/8, software on CD disk |
|
Optional accessories |
|
|
NG4 Filter |
1.6mm thick Schott NG4 filter in housing |
|
NG9 Filter |
1.6mm thick Schott NG9 filter in housing |
|
NG10 Filter |
1.6mm thick Schott NG10 filter in housing |
|
SAM1 |
Attachment for high power lasers attenuation (up to 2 exe (-3)) |
|
SAM2 |
Attachment for high power lasers attenuation (up to 2 exe (-6)) |
|
SAM3-A |
Reflective beam sampler, sampling reduction factor 0.0016, with mounting adapter for BeamOn / BeamOn HR |
|
RDC×2 |
Attachment for viewing larger beams, factor of ×2 |
|
RDC FILT |
Filter mounted on beam reducer, ×8 type |
|
MOUNTB |
Mounting base for BeamOn HR and accessories |
|
ACC-SET |
Full set of accessories, including: SAM1, SAM2, RDC×2, MOUNTB, 3×NG filters & adaptor |
