VISION-210-D 颗粒图像分析仪

产品信息

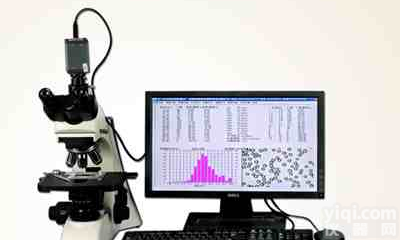

“VISION 218-D颗粒图像工作站”是一种专门针对粉体、颗粒样品进行检测、分析的仪器产品。本产品将显微镜下的颗粒样品形貌直观的反映到电脑屏幕上，在方便人员观测的同时，利用计算机图像分析技术，对样品进行“单体数据”、“形态参数”、“粒径分布”、“形状参数分布”等多种颗粒相关的描述，能够提供多种行业所需的数据参数，是专业的颗粒分析仪器。

“VISION 218-D颗粒图像工作站”是济南维森与具有20年颗粒测试研究经验的济南微纳颗粒技术有限公司合作开发的产品之一（济南微纳公司同时也有销售，名称为WINNER99-D颗粒图像仪）。本产品采用的USB2.0/1394数字摄像机是国内机器视觉知名企业专门为维森OEM代工生产的高质量工业摄像机，具有成像质量好，性能稳定，寿命长等优点，绝非南方小工厂生产的低质产品。显微镜装置为专门销往韩国、美国的出口产品，镜体由国内专业工厂制造，配备原装进口光学镜片。通过维森的改造，更加适合对颗粒样品的观测和分析。
技术参数表：


显微系统


物镜组
4X、10X、40X、100X（油）长距消色差（平场）物镜组
目镜组
1X、10X、16X 大视野摄像目镜
载物平台
标配：手动三维机械式载物台，
尺寸：185mm×140mm，移动范围：50mm×75mm，粗微同轴调焦，微动格值:2μm,带锁紧和限位装置。
光源照明
底部透射光源，6V 20W卤素灯,亮度可调。
ZG放大倍数
约1600倍
摄像系统
ZG分辨率
2048×1536
像素尺寸
3.2μm×3.2μm
成像元件
1/1.8英寸 progress scan CMOS
帧率
6fps@2048×1536 / 10fps@1600×1200 / 15fps@1280×1024 / 30fps@640×480
ZG清晰度
900线
信噪比
小于42dB
敏感度
1.0V@550nm/lux/S
输出方式
USB2.0
软件功能
动态采集
将样品变化过程记录为AVI视频文件
静态采集
将样品型貌拍摄为高清晰BMP图片
比例尺标定
通过国家标准测微尺标定后，每次测试只须选择与物镜相对应的比例尺数值即可直接得到样品的实际大小数值。
测量
可直接获得两点间实际距离、角度大小、多边形面积等常用的数据
任务管理机制
严格的任务管理机制，使用户能够将所有测试数据井井有条的管理起来。
图片处理
使用多种画图工具对图片进行比较简单的处理
图片拼接
将多幅图片进行无缝拼接,在颗粒测试中能够获得更多的颗粒数量以提高测试的代表性
颗粒自动处理工具
自动消除颗粒粘连、自动消除杂点、自动消除边界不完整颗粒、自动填补颗粒的空心区域、自动平滑颗粒边缘等12项自动处理工具。
输出数据
单个颗粒数据
面积等效直径、周长等效直径、马丁径、周长、投影面积、颗粒长、颗粒宽、表面积估算值、体积估算值、
X切线、Y切线、切线径、球型度长径比
粒径分布图表
粒径分布的详细图表
分布类型
按数量分布、按体积分布、按面积分布、按长度分布等
等效直径类型
面积等效粒径、周长等效粒径、马丁径、针状颗粒等效粒径
统计平均径
Xnl、Xns、Xnv、Xls、Xlv、Xsv等常用统计平均径
形状参数
长径比、庞大率、球型度、表面率等表征颗粒形状的多种常用参数
个数统计
如测试的样品为颗粒样品，可获得样品中颗粒的数量
图片输出
直接输出全尺寸图片，或全尺寸带测量结果的图片，适合于发表论文。
样品缩略图
报告中显示样品缩略图
表头输入
用户可将样品名称、测试单位、分散介质等多项信息输入到报告表头中
自定义LOGO
用户可自定义LOGO和报告名称，使输出的报告显示自己公司的信息






产品优势列表：


专业性强


多种专业数据
“VISION-218-D”是维森与济南微纳合作研制的颗粒测试产品，济南微纳是国内粉体测试行业公认技术翘楚，因此，微纳的理论实力与维森的计算机图像分析优势的WM结合，是“VISION 218-D颗粒图像工作站”专业性的保证。在颗粒测试领域WY能够进行颗粒形状参数（长径比、球型度等）测试的产品，是不可替代的。
应用广泛
价格低廉
“VISION 218-D颗粒图像工作站”既可以作为一台通用型的显微镜工作站，替代传统显微镜进行各种样品的观测工作，又可以作为颗粒测试行业专用的仪器设备，用于计算颗粒的各项专业数据，操作直观简便，应用范围十分广泛。且产品价格低廉，适用于不同行业不同规模的企业用户。
体积轻巧
便于携带
由于采用了USB2.0/1394的数据传输机制，VISION 218-D不但可与台式电脑相连接，而且可笔记本电脑配合使用，大大增强其便携性，适用于需要在不固定场所进行测试的用户使用。
高性能硬件搭配
性价比突出
维森产品均采用高质量硬件：显微系统中全部采用进口光学镜片，磨制工艺精细，材料纯度高，使用效果与国产同类产品不可同日而语。数码摄像机为国内一线知名厂家批量代工，采用原装日本SONY芯片搭配德国专业电路方案，供电稳定，发热量小，使用寿命长，可以说是国内市场上档次ZG的工业数码摄像机产品。
服务到位
用户使用安心
本产品配套有品Pai高性能工作站主机一台，已经装好软件并标定好仪器，到用户处连接显示器后可直接使用。
所有维森产品均提供一年的无条件免费保修，及一个月内的退货保障。并且提供10年内的上门维修调试服务，让用户使用中无任何后顾之忧。




样品观测实例与报告样本：


VISION-218-D颗粒图像工作站附件表：


序号


项目
数量
单位
备注
1
三目生物显微镜系统
1
台
含透射光源
2
数码摄像机
1
台
含USB连接线
3
VISION-IMG 专业版光盘
1
套
含电子版使用说明
4
LENOVO微型工作站主机
1
台
不含显示器
G41、E5200、2G、320G
5
加密狗
1
只

6
国家标准测微尺
1
片

7
盖玻片、载玻片等常用工具
1
套

8
0.5X缩倍摄像目镜
1
只
可选
9
透反射显微镜系统
1
台
可将生物镜系统换为正置透反射系统，价格加￥6000




售后服务承诺：

1，  一月内达不到用户使用要求可退换货。
2，  一年内免费上门保修，维修或更换零件均不收任何费用。
3，  提供10年内上门保修、维护、调试、培训等服务。
4，  同型号产品软件终生免费升级。


济南维森图像科技有限公司是专注于显微图像技术的高科技公司，专业的软件技术团队与的硬件支持是维森高性能产品的基础。相信我们的产品必然能够帮您解决实实在在的难题，伴您从成功走向更大的成功。济南维森图像科技有限公司-市场部

网址：www.visionimg.com

E-mail：visionimg@163.com

电话：400-621-9766



  “VISION 210-D Particle Image Workstation” is a special instrument which uses to examine and analyse the powers and particles. It can reflect the images of particle samples on the screen directly and provide convenience to observe, further more, it uses the method of image analysis principle to describe the “A Single Particle Data” and “Shape Parameters” and offer various parameters to different industries.

       VISION 210-D Particle Image Workstation is developed by Jinan Vision and Jinan Winner particles Technology Co., Ltd. which has particle-examining experiences over 20 years. USB2.0/1394Digital camera of this workstation is worked by well-known enterprises of vision machine, so it has a good image quality, stable performance, long life, etc. The Microscope is the specialized exports sold to South Korea, the United States; the mirror body is manufactured professionally and equipped with imported optical lenses. Through the improvements of us, this workstation is more suitable for observe and analyse to particle samples.

       Particle analysis software matched this workstation uses of a unique image analysis technology, combines with the theory of particles, the computer can analyse the “single property”, such as various equivalent sizes of samples and X, Y tangent, as well as the “shape parameter” including aspect ratio and the ball-type degrees. Through these data the user can understand the properties of samples and this has very important significance to scientific research and industrial production. Finally, the sample data can also be output by the form of a report (includes sample images, diagrams, data lists, etc.), so it is very easy to manage and report the results.

       Our company has more advanced particle analysis equipment VISION-218-D, it can output D10, D50, D90 and other characteristic parameters and is the best assistants of laser particle size analyzer. You could visit our Web site to get more information.
【Technical Parameters 】
Microscope System
Objective Lens
4X、10X、40X、100X （oil）Long-range achromatic (EOC) in Lens Group
Ocular Lens
1X、10X、16X big vision camera eyepiece
Loading Platform
Standard configuration: manual three-dimensional loading platform
Size:185mm×140mm; Moving range: 50mm×75mm; Coaxial focusing; Micro-motion number:2μm, with locked and located devices
Illuminate Lighting
Light source locates the bottom, 6V 20Whalogen lamp with adjustable brightness
The Highest Magnification
About 1600 times
Camera System
The Highest Resolution
2048×1536
Pixel size
3.2μm×3.2μm
Imaging Components
1/1.8 Inch progress scan CMOS
Frame Rates
6fps@2048×1536 / 10fps@1600×1200 / 15fps@1280×1024 / 30fps@640×480
The Highest Definition
900p
SNR
<42dB
Sensitivity
1.0V@550nm/lux/S
Output
USB2.0
Software
Function
Dynamic Acquisition
To record the changing process of the sample as AVI video files
Static Acquisition
To record the appearances of samples as BMP pictures
Scale Calibration
Adopted national standards micrometer scale calibration, it can get the actual numerical size after selecting the numerical scale that corresponding to objective lens in each test.
Measure
Acquire the frequently used data such as the actual distance between two points, angle size and polygon area
Task  Management Mechanism
The strict managements make users to control the test data in perfect order.
Picture Process
Use various drawing tools to analyze pictures
Picture Splice
Make number of pictures to be seamlessly connected, then more number of particles can be got and the representativeness of the test can be enhanced
Optimization Tools
Remove blockings, noises and incompletion, fill blank areas and smoothing edges, etc.
Output data
A single Particle Data
Area equivalent grain size, circumference equivalent grain size, Martin diameter, circumference, projected area, particle length, particle width, surface area estimates, the volume estimates, X tangent, Y tangent, tangential diameter, spherical aspect ratio
The Distribution of  Particle
Detailed distribution charts of particles
Distribution Type
Distribution according to number ,volume of distribution, area and length
The Type of Equivalent Grain Size
Area equivalent grain size, circumference equivalent grain size, Martin diameter, acicular particle equivalent grain size
Statistics on Average of Diameter
frequently use the average of diameter such as  Xnl, Xns, Xnv, Xls, Xlv, Xsv
Shape Parameters
Slenderness ratio, huge rate, spheroidal degree, the surface rate, commonly used data of particle shape characterization.
Counting
after testing of particles, the count of particles can acquire
Image output
Output full-size images, or full-size images with tested result, Suitable for publish paper
Thumbnails of Sample
thumbnails of sample are shown in reports
Inputting of  The Form Head
The Samples name, testing units, decentralized media, and other information can be input into the form head.
Self-defined LOGO
Users can define LOGO and the name of reports. Then, the output shows information of their company.
【 Technological Advantages and Features 】
Specialized, Professional data
“VISION 210-D Particle Image Workstation” is developed by Jinan Vision and Jinan Winner particles Technology Co., Ltd. which is the leader in this industry. Winner’s theory combines with Vision’s analysis of image to ensure this workstation to work professionally. It is the unique machine to test particles’ shape parameters.
Widely Use
 Low Price
“VISION 210-D Particle Image Workstation” is a general microscope workstation. It can replace the traditional microscope to observe various samples, and also can serve as professional equipment in particle testing industry to calculate various data of particles. The manipulation is simple and easy, and it has a wide range of applications. The price of product is low, so this product is suitable for different business users.
Small Size
Easy to Carry
VISION 210-D uses USB2.0/1394 data transfer mechanism, it not only can connect with the desktop computer, but also use the notebook computer, so its portability enhances greatly  and users can test in different places.
High-performance Hardware
& Outstanding Cost-effective
All products use high-quality hardware --- the import optical lenses in micro-system, which with fine grinding process and make up materials of high purity; the digital camera uses original Japanese SONY CMOS chip with professional Germany circuit chip program. This product is better than others because of the stable power supply, lower calorific value and long service life.
Good Service Ensure Users’ Satisfaction
This product has high-performance workstations, the installed software and adjusted instruments, so the users can directly use the monitor after connected.
Our products are refundable within one month and have a one-year guarantee for all repairs, no charges for replacement or repair and we provide home warranty, maintenance, adjusting, training and other services for 10 years.
【 VISION 210-D Particle Image Workstation” Attached Sheet 】
No.
Items
Amount
Remark
1
Trinocular Biological Microscope System
1
With transilluminator
2
Digital Video Camera
1
With USB line
3
VISION-IMG Professional Edition Software
1
With User-guide
4
LENOVO Workstation
1
No monitor
G41、E5200、2G、320G
5
Softdog Encryption
1

6
National Standards Micrometer Scale Calibration
1

7
Cover glass, Slide glass, etc
1

8
0.5X Fold reduction camera eyepiece
1
Optional
9
Permeable Reflective Microscope System
1
Plus ￥6000 for replacing Biological microscope system with ortho reflective microscope system
Guarantees for After-sales Service:

1. Our products are refundable within one month.
2. Our products have a one-year guarantee for all repairs and no charges for replacement or repair.
3. We provide home warranty, maintenance, adjusting, training and other services for 10 years.
4. The software of same type can be updated freely forever.
     Jinan vision-view science and technology Co., Ltd. is a high-technological company which is committed to Micro-imaging technology. Our high performance products are based on our group of professional software developers and the supports of World-Class hardware. We believe our products must be able to solve your practical problems, and help you gain more successes.
