产品信息

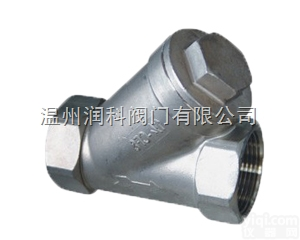

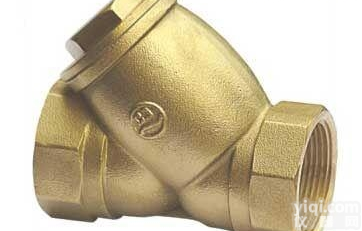

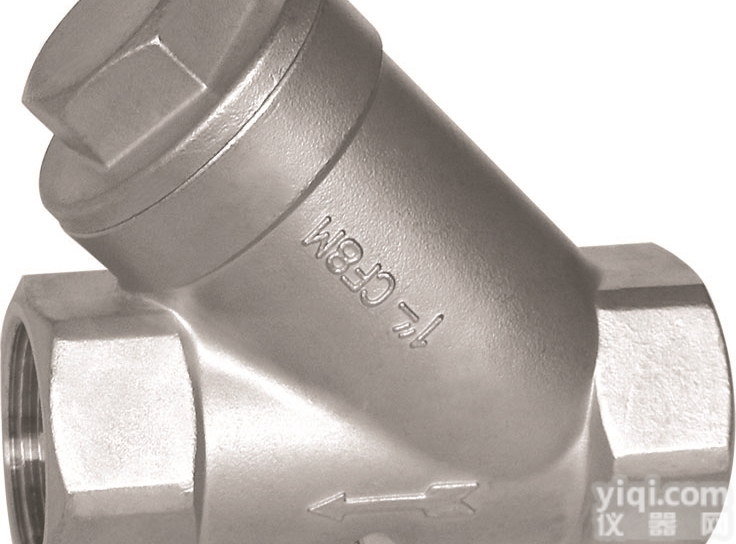

内螺纹Y型过滤器
产品特点/FEATURES:
多种螺纹端供选择 Various Thread Standards Available
可适宜水平安装及垂直安装 Suitable For Installation In Horizontal And Vertical
安装维修简单，清洗过滤网方便Installation And Maintenance Is Simple，Easy To Clean Screen
标准/STANDARDS:
设计标准/Design: ASME B16.34
壁厚标准/Wall Thickness: ASME B16.34
螺纹标准/Pipe Thread: ASME B1.20.1,BS21
DIN 2999/259,ISO 228/1 JIS B 0203,ISO 7/1
检测标准/Inspection & Testing: MSS SP-110,EN 12266
材质/Material
阀体/Body:CF8M,CF8
阀盖/Capt:CF8M,CF8
过滤网/Filter Screen:SUS304
封密圈/Cap Gasket:PTFE
口径/Size:DN15-DN300
