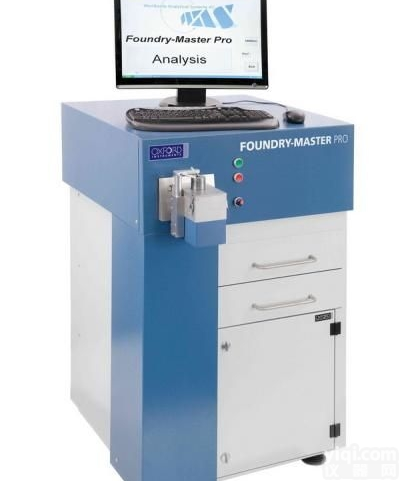

牛津FMPro 牛津仪器FOUNDR-MASTER PRO
- 产地：浙江 宁波市
- 供应商：慈溪永汇检测仪器有限公司
- 供应商报价： 480000.00￥/台
- 标签：牛津仪器FOUNDR-MASTER PRO,牛津仪器FOUNDR-MASTER PRO价格,牛津仪器FOUNDR-MASTER PRO厂家
产品库
| 品Pai | 牛津 | 型号 | 牛津FMPro |
| 波长范围 | 130 – 800（nm） | 外形尺寸 | 1130X840X720（mm） |
| 重量 | 160K（g） | 适用范围 | 用于固体金属样品的元素定量分析及Pai号鉴定 |
Extensive analytical functions: 强大的分析功能 | Global or partial standardisation, 1 or 2 point method 全部或部分工作曲线标准化，运用单点或两点校准方法 Type standardisation with additive or multiplicative correction 类型校准功能 Reproducibility check during standardisation and analysis 校准和分析时进行重现性检查 Adding new calibration curves 添加新校准曲线 Adding samples to existing calibration curves 在现有分析曲线上添加新标样 Additive and multiplicative inter-element correction, matrix correction 内标校准功能，基体校准功能 Automatic line switching 分析谱线自动切换 Extrapolation of calibration curves, Flagging results beyond calibration range 分析结果超分析曲线范围，自动进行推算及标识 |
Large variety of output format options 丰富的数据输出形式 | Order of elements free programmable 用户自定义需检测元素及显示顺序 Free selections of elements to display and / or print, store 用户自定义需检测/打印/存储的元素种类 Selection of decimals to be displayed and / or printed, stored 用户自定义需检测/打印/存储的小数点数位 Report generator for customized reports including own logo 用户自定义输出报告模版，可加载用户公司Logo图片 free definition of headlines for the sample nomination 用户自定义样品名称 output in mass percentage or mass percentage by individual channel 可通过物质含量形式输出质量百分比及多条相关谱线质量百分比分析结果 output in intensity, intensity ratio, recalibrated / corrected ratio possible 可用光强形式输出强度,系数校准强度系数,修正校准强度系数分析结果 Calculation of average, standard deviation and variation coefficient for any number of burns 可计算任意激发次数测量结果的均值、标准偏差及相对标准偏差 |
Store and print options 数据存储及打印功能 | Storage in system database (BORLAND) 通过系统自带数据库进行存储（BORLAND） Storage as ASCI, TXT and / or CSV file 数据可存储为ASCI, TXT和/或CSV格式 Storage of single measurements and / or averages 数据可存储为单次测量数据，和/或多次测试数据之平均值 Storage of statistical results 可存储统计数据 Manual or automated transfer of stored results 可人工或自动进行存储数据的转存 Printout of single measurements and / or averages 可打印单次测量数据，和/或多次测试数据之平均值 Printout of statistical data 可打印统计数据 All store and print options carried out manually or automated 可人工或自动打印所有的存储数据 |
Diagnostic 仪器自带诊断功能 | Argon pressure watchdog 氩气气压监视器 Vacuum level watchdog 真空状态监视器 Automated spectral drift control with log file 自动波谱漂移控制 Log file for standardisation routine and error messages 仪器标准化程序及错误信息日志 Visual display of complete spectra with store and compare functions 可显示所有仪器存储完整谱图数据并与现有测试谱图进行比较 Large variety of provisions for remote error diagnostics 远程诊断功能 Remote system control possible (internet connection required) 远程仪器操控功能（通过互联网） |
Other functions 其他功能 | Usage of various grade databases, free editable Pai号数据库及自定义Pai号输入功能 Large variety of grade search and identification functions Pai号搜索及鉴定功能 Import and export of grade databases / libraries from and to EXCEL Pai号数据库输入及输出功能（通过Excel） Usage of operator defined formulas (e.g. carbon equivalent) 用户自定义公式输入功能 |
Dimensions: 尺寸 | Height高: 1130 (44,49) /长Depth:840 (33,07) / Width宽:720 (28,35) [mm (inch)] Weight重量: 160 kg (353 lbs) (without vacuum pump不含真空泵) |
Electrical Requirements: 供电系统要求 | 110/230 V 50/60 Hz Max power consumptionZ大功率: 2000W (spectrometer光谱仪主机: 1000W / pump真空泵: 600W / PC电脑: 400W) Average power consumption平均功率: 1200W ( spectrometer光谱仪主机: 500W / pump真空泵: 600W / PC电脑: 100W) Stand by power consumption待机功率: 70 W stand-by Recommended Fusing: 16A slow blow16 A慢熔保险丝 |
Argon Requirements: 氩气需求 | Argon for spectrometry, purity 5.0 氩气纯度要求为5.0 Argon pressure 3 bar (44 PSI) 氩气气压要求为3 bar Pressure regulator specified for Argon 5.0 为纯度为5.0氩气专配的氩气减压阀 Copper argon piping, specified for Argon 5.0, unpolluted connections (e.g. solder) 氩气通过铜管传输，无污染接头 |
