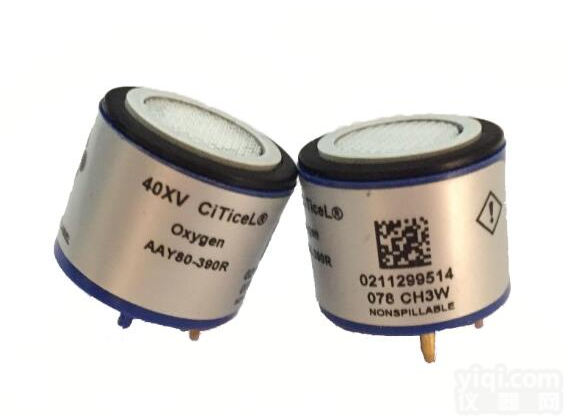

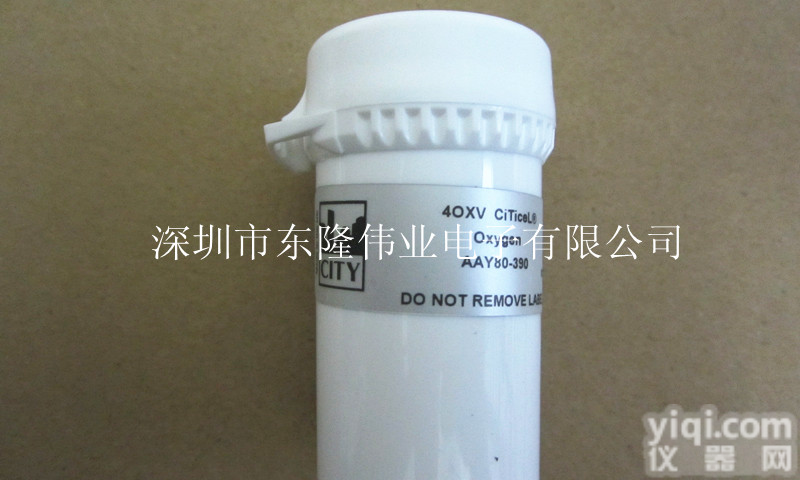

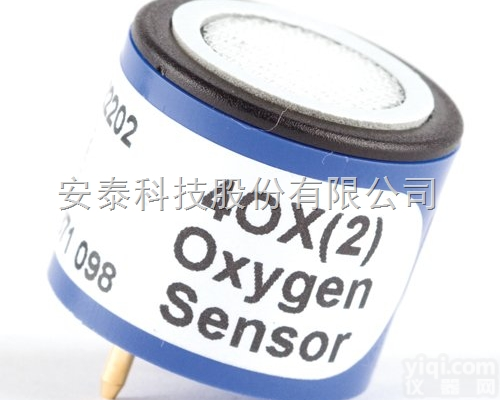

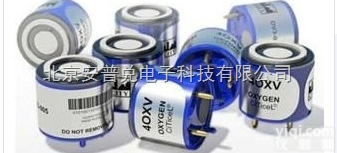

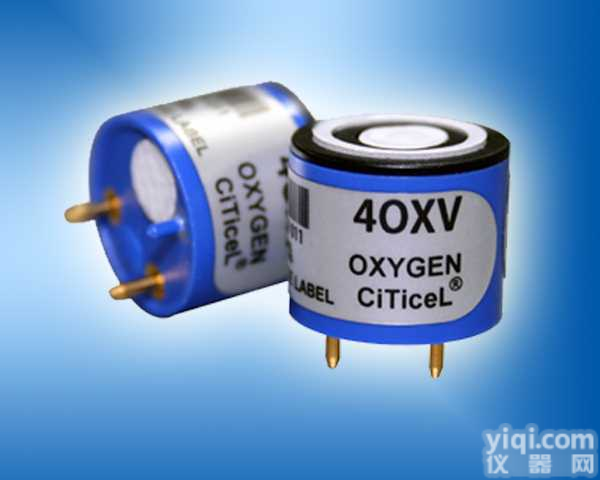

City 4OXV City 4OXV氧气传感器

4OXV CiTiceL

Oxygen (O2) Gas Sensor

Part Number: AAY80-390

Key Features and Benefits:

• False alarm immunity

• Enhanced response time in extreme applications

• Reliably meets stated life

• Superior environmental performance

Technical Specifications

MEASUREMENT

Technology:Electrochemical

Measurement Range:1-25% vol. O2

Maximum Overload:30% vol. O2

Output Signal:0.10 ± 0.02 mA in Air

Response Time (T90):<15 Seconds

Zero Current (Offset):<0.6% vol. O2

Linearity:Can be considered linear in many cases.

              See Operating Principles (OP-02) for further details.

ELECTRICAL

Recommended Load Resistor:100Ω

MECHANICA

Casing Material：ABS

Weight：<16 g

Orientation Sensitivity：<0.2% vol. O2 equivalent

ENVIRONMENTAL

Operating Temperature Range：-20°C to +50°C (up to 3 mon continuous across RH range)

Recommended Storage Temp：0°C to 20°C

Thermal Transient(Temp. plunge +22°C to -20°C)：<23.5% vol. O2

Operating Pressure Range：-20°C

Pressure Coefficient(60 cm H2O step change)：<200% signal change

Relative Humidity Range：(at  0°C to 20°C)

Continuous：5 to 95%RH non-condensing

Short Term：0 to 99%RH non-condensing

LIFETIME

Long Term Output Drift：<2% signal/month

                        Typically <5% over operating life

Expected Operating Life：Minimum 24 months in air

Storage Life：6 months in original packaging

Warranty Period：24 months from date of despatch

Product Dimensions：

IMPORTANT NOTES

Obstruction of the vent hole will compromise performance, and must be avoided. Do not remove label.

Adequate free volume should be provided below the sensor to ensure full performance.

All tolerances ±0.15 mm unless otherwise stated.DO NOT solder to pins.

All performance data is based on conditions at 20ºC, 50% RH and 1013 mbar.
