一、适用范围
◆爆炸性气体环境:1区、2区
◆场所中危险气体或蒸汽：II A、II B、II C
◆温度组别：T1～T6
◆户内、户外
Applying scope
◆Explosive gas atmospheres:Zone 1&2
◆Dangerous gases or vapors zone:II A、II B、II C
◆Temperature Classes:T1～T6
◆Indoor and outdoor | |
二、主要技术参数 Specification防爆标志
Ex-marking | 额定电压V
Rated voltage | 额定电流A
Rated current | 使用类别
Utilization category | 防腐等级
Degrees of corrosion-resistant-
classes | 进线口螺纹
Inlet thread | Exd II BT6、Exd II CT6 | 380/220 | 1～400 | AC、AC3 | WF1 | G13～G100 |
*Exd II CT6订货时说明 Exd II CT6 must be explained when ordering

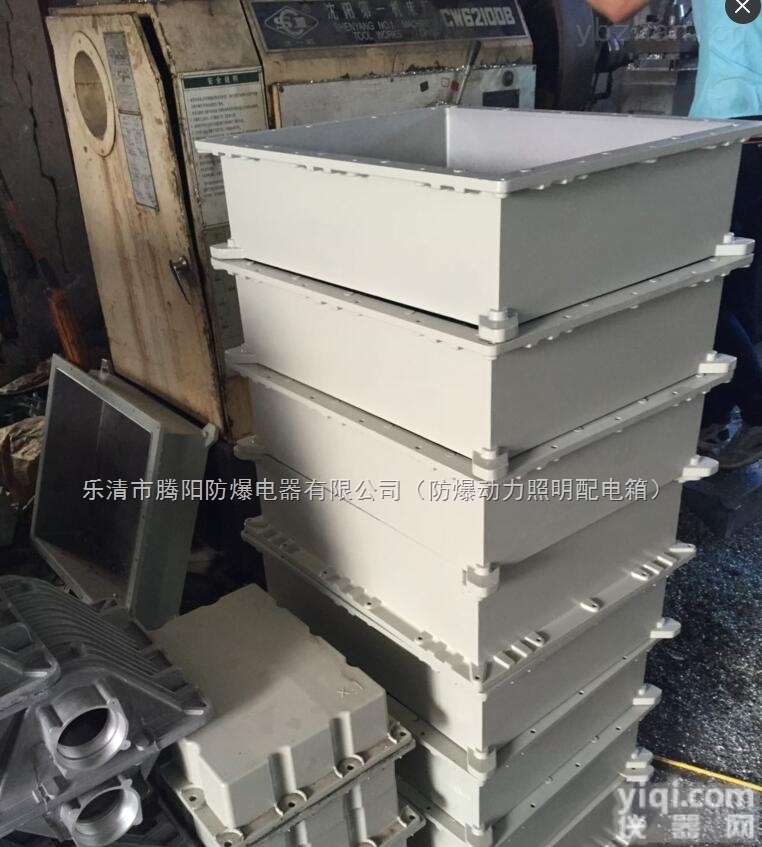

定做非标防爆电控仪表柜 防爆柜壳体厂家
三、产品特点
◆适用于控制多台电动机，也可作为照明或仪表配电。
◆钢板焊接制造而成，表面喷塑。
◆内装电器元件可根据用户要求特制。
◆可在箱面操作或远程操作，也可两地操作。
◆可增加状态指示灯。
◆输入：3P+N+PE，输出：3P+N+PE
◆可钢管或电缆布线，电缆布线须配电缆夹紧密封接头。
◆可根据用户要求特制。
Features:
◆Kx flame proof control boxes are used to control multiple motors,also to distribute to lighnings or meter.
◆Enclosure is made of steel plate,surface is sprayed with plastics.
◆Built-in electricl apparatus can be made to order.
◆It could controlled in panel or remote,or in panel and remote.
◆Input and output:3P+N+PE
◆Wiring with conduit or cable.For cable,it should be fitted with explosion-protected cable seal gland.
◆For user's requirement,it could be specially made. 定做非标防爆电控仪表柜 防爆柜壳体厂家 |
