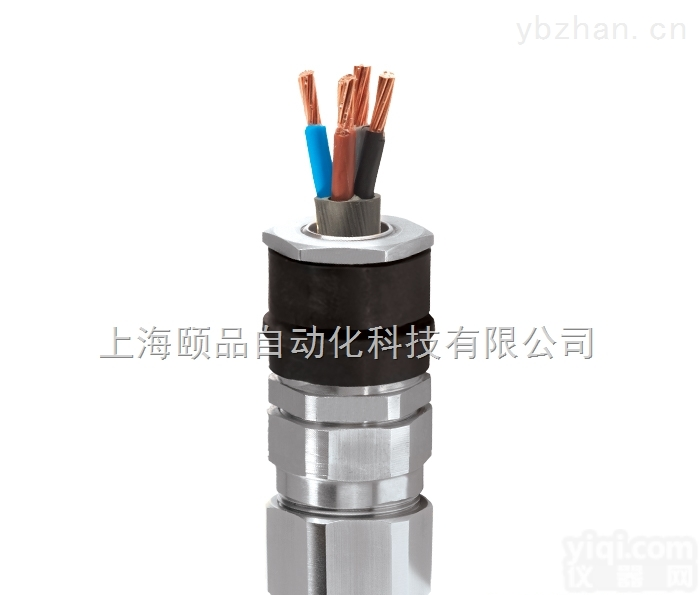

CMP-B323系列铠装非防爆格兰（CMP B323 Insulated Cable Gland）
B323 | Insulated Cable Gland
For all types of Steel & Aluminium Wire Armoured Cables
上海颐品自动化科技有限公司，：
Insulated Industrial Cable Gland
• High quality durable materials
• Robust, heavy duty insulated design
• Metal-to-metal armour clamping
• Permanently crimped, low impedance earth termination
• Secure against self-loosening
• Direct & remote installation
• Enables zoning of earthed neutral systems
• Eliminates circulating currents
• Third party short circuit tested
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• -60?C to +130?C
• EMC tested
Note: Earth Tags can only be fitted to the B323 & A323 ZEN gland types.
The Symmetrical Fault Current (kA) rating for 1 second applicable to the Cast Integral Earth Lug featured in the B347 and A347 products are as follows:
• 26.0 kA for Cable Gland sizes up to 40
• 43.0 kA for Cable Gland sizes 50S and above
Please refer to the CMP CW CIEL product page for dimensional details of the Cast Integral Earth Lug feature included in the B347 and A347 designs.
Aluminium version available for AWA cables. When ordering please substitute letter B in B323 & B347 with letter A.
PRODUCT SELECTION TABLECLICK HERE TO VIEW TECHNICAL ILLUSTRATION
CLICK HERE TO VIEW HOW TO ORDER
Showing: Imperial Metric
| Cable Gland Size | Entry Thread "C" | Cable Bedding Diameter "A" | Overall Cable Diameter "B" | Armour Range | Across Flats "D" | Across Corners "D" | Protrusion Length "F" | Ordering Reference (Brass Metric) | Shroud (B323) | Cable Gland Weight (Kgs) | ||
| Max | Min | Max | Min | Max | Max | Max | Without CIEL Lug (B323) | |||||
| 20S | M20 | 11.6 | 9.5 | 15.9 | 0.8 | 1.25 | 24.0 | 26.4 | 73.6 | 20SB3231RA | PVC04 | 0.190 |
| 20 | M20 | 13.9 | 12.5 | 20.9 | 0.8 | 1.25 | 30.5 | 33.6 | 74.9 | 20B3231RA | PVC06 | 0.240 |
| 25S | M25 | 19.9 | 14.0 | 22.0 | 1.25 | 1.6 | 37.5 | 41.3 | 84.1 | 25SB3231RA | PVC09 | 0.350 |
| 25 | M25 | 19.9 | 18.2 | 26.2 | 1.25 | 1.6 | 37.5 | 41.3 | 84.1 | 25B3231RA | PVC09 | 0.350 |
| 32 | M32 | 26.2 | 23.7 | 33.9 | 1.6 | 2.0 | 46.0 | 50.6 | 82.5 | 32B3231RA | PVC11 | 0.470 |
| Dimensions are displayed in millimetres unless otherwise stated | ||||||||||||
