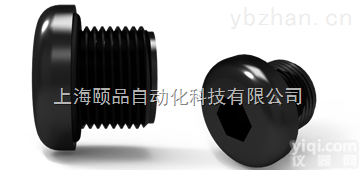

Hawke圆形防爆堵头Hawke 375 Domed Head Stopping Plug

Hawke防爆堵头Hawke 375 Domed Head Stopping Plug
Hawke防爆堵头Hawke 375 Domed Head Stopping Plug
上海颐品自动化，：

Hawke 375 Domed Head Stopping PlugIncreased Safety Exe / Dual Certified ATEX - IECExGeneral Information

M16 to M75 as standard.
Thread length is 15mm as standard.
Metric entry threads are 1.5mm pitch as standard.

Materials & Finishes

Manufactured in Polyamide with Nitrile O-Ring.

Technical Data

1. Increased Safety Exe IIC Gb, Extb IIIC Db,
2. Certificate No's
   Baseefa12ATEX0095X and IECEx BAS12.0065X
3. Suitable for use in:
   Zone 1, Zone 2, Zone 21 and Zone 22.
4. Construction and Test Standards:
   IEC/EN 60079-0, IEC/EN 60079-7 and IEC/EN 60079-31.
5. Ingress Protection:
   IP66.
6. Operating Temperature Range:
   -60°C to +75°C
7. Group II and III.

375 STOPPING PLUG SELECTION TABLE
Thread Size	‘S’ Dia.	Allen Key
M16	23.0	8
M20	27.5	10
M25	32.0	10
M32	39.0	10
M40	49.0	10
M50	59.0	10
M63	72.0	10
M75	84.0	10
All dimensions in millimetres.

Assembly Instructions

Ordering Format [ Product / Thread Size / Material / Finish ]

Example: 375 / M32 / N/A / N/A
