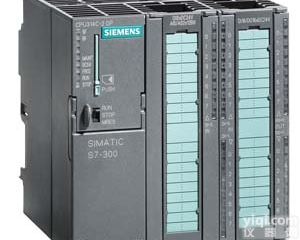

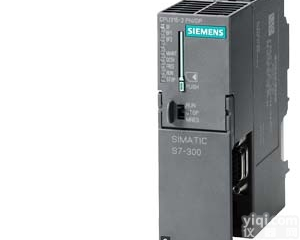

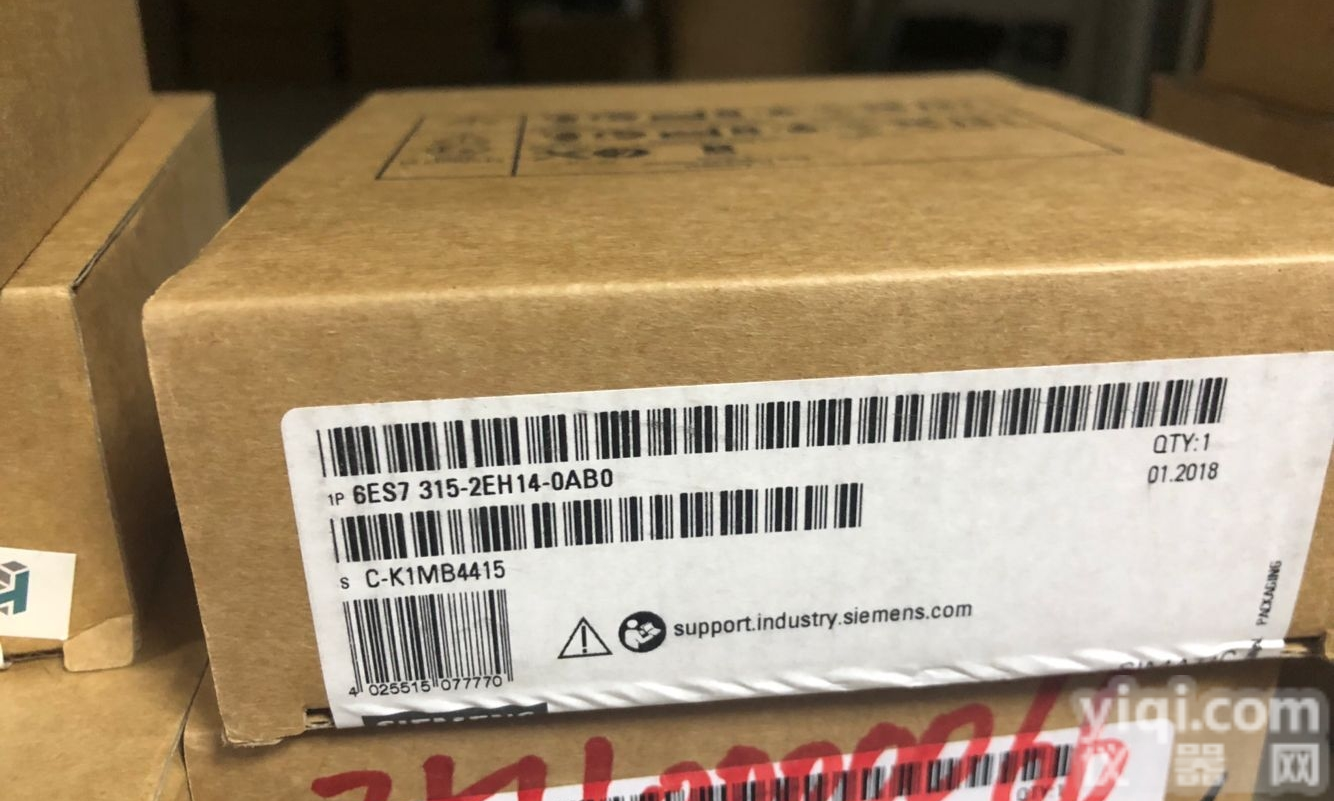

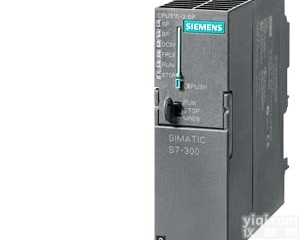

6ES7315-2EH14-0AB0

6ES7315-2EH14-0AB0

SIMATIC S7-300 CPU 315-2 PN/DP, ZY处理器含有 384 KB工作存储区, 1. 接口MPI/DP 12MBIT/S, 2.接口以太网PROFINET, 带有 2个 PORT SWITCH,必须有 MMC卡

General information

Engineering with

• ● Programming package

STEP 7 V5.5 or higher

Supply voltage

Rated value (DC)

• ● 24 V DC

Yes

Power loss

Power loss, typ.

4.65 W

Memory

Work memory

• ● integrated

384 kbyte

• ● Size of retentive memory for retentive data blocks

128 kbyte

Load memory

• ● Plug-in (MMC), max.

8 Mbyte

CPU processing times

for bit operations, typ.

0.05 µs

for word operations, typ.

0.09 µs

for fixed point arithmetic, typ.

0.12 µs

for floating point arithmetic, typ.

0.45 µs

Counters, timers and their retentivity

S7 counter

• ● Number

256

IEC counter

• ● present

Yes

S7 times

• ● Number

256

IEC timer

• ● present

Yes

Data areas and their retentivity

Flag

• ● Number, max.

2 048 byte

Address area

I/O address area

• ● Inputs

2 048 byte

• ● Outputs

2 048 byte

Process image

• ● Inputs, adjustable

2 048 byte

• ● Outputs, adjustable

2 048 byte
