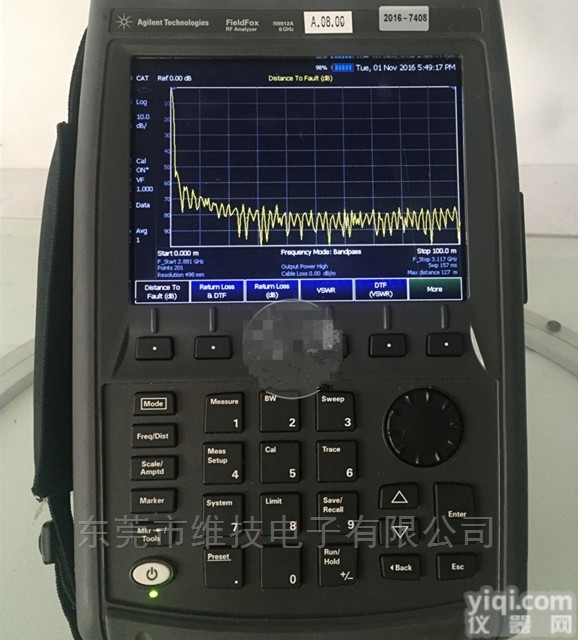

N9912A FieldFox keysight N9912A FieldFox Handheld RF Analyzer, 4 G

keysight N9912A FieldFox Handheld RF Analyzer, 4 GHz and 6 GHz ?

深圳市华盛电子仪器有限公司是一家长期高价回收仪器仪表，长期供应二手，全新仪器设备的企业有限公司，公司一直以诚信，公平，公正与现金的结算的方式运作。提供上门提货或物流公司代收款的操作模式高价收购国内外仪器仪表设备让您与您公司的闲置，废弃，待处理的设备快速的资金回笼。

长期专业销售、回收、租赁、高频二手仪器!!咨询

回收+ 销售仪器 ；示波器、频谱仪、万用表、综测仪、网络分析仪、信号源、功率计、频率计、数据采集仪电子负载 频谱分析仪、热像仪、熔接机等进口仪器仪表

回收仪器仪表 供应二手仪器仪表

主营品Pai：安捷伦Agilent 、泰克Tektronix、福禄克FLUKE、安立Anritsu、日置HIOKI 、吉时利Keithley、爱德万Avantest、横河Yokogawa、美能达Ko nica Minolta、艾法斯Aeroflex、罗德与施瓦茨R&S、莱特波特litepin、思博伦spirent、爱色丽x-rite、菊水KIKUSUI、致茂Chroma、固纬GWINSTEK、力科LeCroy、马可尼Marconi

Key Features and Functions

• CAT and VNA: 2 MHz to 4/6 GHz
• SA: 100 kHz to 4/6 GHz
• Carry the world’s most integrated handheld RF analyzer: standard model includes cable and antenna analyzer
• Expand capabilities with optional T/R VNA, spectrum analyzer, built-in power meter, and more
• Save time by measuring RL and DTF simultaneously in the same sweep
• Calibrate simply in the field with QuickCal
• Easily measure average and pulse power with a USB power sensor
• Lightest, all-in-one analyzer at only 6.2 lb. (2.8 kg)

• Maximum Frequency	4 or 6 GHz
  CAT/VNA Start Frequency	2 MHz
  SA Start Frequency	5 kHz
  Dynamic Range	49 dB
  Output Power	< 7 dBm
  Trace Noise	n/a
  Number of Built-In Ports	2 ports
  Best Speed at 201 Point, 1 Sweep	240 ms
  Instrument Type	Combination Analyzer
  Cable and Antenna Analyzer	Yes
  Spectrum Analyzer	Yes
  Vector Network Analyzer	No
  Applications	Distance-To-Fault Cable Trimming Return Loss Insertion Loss/Gain Interference Analysis Power Measurements
  Components	Cables Antennas Amplifiers Filters 75 Ohm CATV Devices
  Additional CAT/VNA Based Features	QuickCal (Subset) Vector Voltmeter
  Additional SA Based Features	Built-In Power Meter
  System Features	GPS Receiver - External Only
  Power Measurement Using USB Sensor	CW or Swept-Frequency Frequency-Offset RF Pulse Test with Peak Sensor
  Standard Attenuator Range	31 dB
  Standard Attenuator Step	1 dB
  Maximum Dynamic Range 3rd Order @1 GHz	n/a
  DANL @1 GHz	-148 dBm
  Maximum Analysis Bandwidth	n/a
  Phase Noise @1 GHz (1 MHz offset)	-115 dBc/Hz
  Phase Noise @1 GHz (10 kHz offset)	-88 dBc/Hz
  TOI @1 GHz (3rd Order Intercept)	+18 dBm
  Applications Available	Yes
  Frequency	5 kHz to 6 GHz
  Overall Amplitude Accuracy	±0.5 dB
  Bandwidth Options	5 MHz
  Performance Level	◆◆◆◇◇◇
  Applications-General Purpose	AM/FM Tune and Listen Cable Fault Location Field Strength Measurement Spectrogram Stimulus Response
  Handheld	Yes
