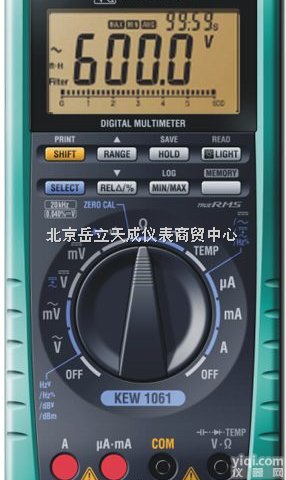

KEW 1061/1062 1061/1062数字万用表 KEW 1061/1062 价格

产品信息
类型数字万用表品Pai咨询
型号KEW 1061/1062测量电压范围交流电压
测量电流范围直流电流测量电阻范围500.0（Ω）
系列**重量咨询（kg）
装箱数咨询是否提供加工定制否
规格**

KEW 1061

KEW 1062

Detection mode

RMS

MEAN/RMS (switch)

DC V

50.000/500.00/2400.0mV/5.0000/50.000/500.00/1000.0V
(Input impedance: Approx. 100MΩ[50/500/2400mV], 10MΩ[5/50/500/1000V])

|±0.02%rdg±2dgt (Basic accuracy)

AC V
[RMS]

50.000/500.00mV/5.0000/50.000/500.00/1000.0V
(Input impedance: 11MΩ<50pF [50/500mV/5V], 10MΩ<50pF [50/500/1000V])

|±0.7%rdg±30dgt (Basic accuracy)

|±0.4%rdg±30dgt (Basic accuracy)

AC V
[MEAN]

50.000/500.00mV/ 5.0000/50.000/500.00/1000.0V
(Input impedance:
11MΩ<50pF [50/500mV/5V],
10MΩ<50pF [50/500/1000V])
|±1%rdg±30dgt (Basic accuracy)

DCV+ACV

5.0000/50.000/500.00/1000.0V
(Input impedance: 11MΩ<50pF [5V], 10MΩ<50pF [50/500/1000V])

|±1%rdg±10dgt (Basic accuracy)

±0.5%rdg±10dgt (Basic accuracy)

DC A

500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A
|±0.2%rdg±5dgt (Basic accuracy)

AC A

[RMS]

500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A

±1%rdg±20dgt (Basic accuracy)

±0.75%rdg±20dgt
|(Basic accuracy)

AC A

[MEAN] *

500.00/5000.0µA/50.000/500.00mA/ 5.0000/10.000A
|±1.5%rdg±20dgt (Basic accuracy)

DCA+ACA

500.00/5000.0µA/50.000/500.00mA/5.0000/10.000A

|±1.5%rdg±10dgt (Basic accuracy)

|±1%rdg±10dgt (Basic accuracy)

Ω

500.00Ω/5.0000/50.000/500.00kΩ/5.0000/50.000MΩ

|±0.1%rdg±2dgt (Basic accuracy)

|±0.05%rdg±2dgt (Basic accuracy)

LowPower-Ω*

5.000/50.00/500.0kΩ/5.000MΩ
|±0.2%rdg±3dgt (Basic accuracy)

Continuity buzzer

500.0Ω(The buzzer turns on for resistances lower than 100±50Ω)

Diode test

2.4000V±1%rdg±2dgt
Open curcuit voltage: <5V (Approx. 0.5mA Measuring Current)

Capacitance

5.000/50.00/500.0nF/5.000/50.00/500.0µF/5.000/50.00mF
|±1%rdg±5dgt

Frequency

2.000~9.999/9.00~99.99/90.0~999.9Hz/0.900~9.999/9.00~99.99kHz
|±0.02%rdg±1dgt (Basic accuracy)

DUTY

10~90%±1%rdg

Temperature

-200~1372ºC±1%rdg±1.5ºC
-328~2501.6ºF±1%rdg±2.0ºF
(with the use of K-type Temperature probe)

Measurement
functions

DC Voltage, AC Voltage, DC Current, AC Current, Resistance, Frequency, Temperature, Capacitor, Duty cycle ratio, Decibel (dBV, dBm), Continuity Check, Diode Test, LowPower-Ω*

Other functions

Data Hold (D/H), Auto Hold (A/H), Peak Hold * (P/H), Range Hold (R/H), Maximum value (MAX), Minimum value (MIN), Average value (AVG), Zero Adjustment (Capacitor, Resistance), Relative values, Save to Memory, LCD backlight
