932 967-100 GSA 2000 赫斯曼932967-100 GSA 2000 N工业连接器
- 型号：932 967-100 GSA
- 产地：上海市
- 供应商：郝普机电控制技术（上海）有限公司
- 供应商报价：面议
- 标签：赫斯曼932967-100 GSA 2000 N工业连接器
产品库
赫斯曼932967-100 GSA 2000 N工业连接器

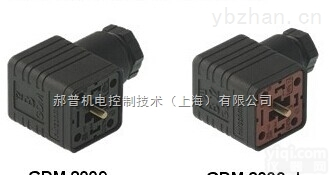

The rectangular connector with a large range of cable diameters from 4.5mm to 14 mm is protected against dust and sprayed water with vibration-free locking with a central screw; a knurled screw can also be supplied for use without tools. The valve professional for pneumatic and hydraulic systems. Durability tests successful: the GDM-series can outplug many others.赫斯曼932967-100 GSA 2000 N工业连接器
详细参数
2 + PE / 3 + PE
PG 9 / PG 11 / M 16
max. 1.5 mm2
DIN EN 175 301-803-A
black
6.3 mm x 0.8 mm, 4.8 mm x 0.8 mm
AC/DC 250 V
16 A
≤4 mOhm
screw
4.5 mm to 10 mm diameter
central nut
IP 65 (gasket necessary)
-40 °C to +125 °C
