侧装式偏心半球阀 侧装式偏心半球阀

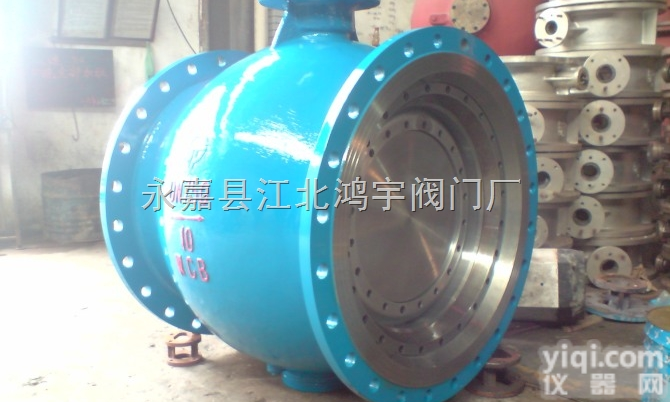

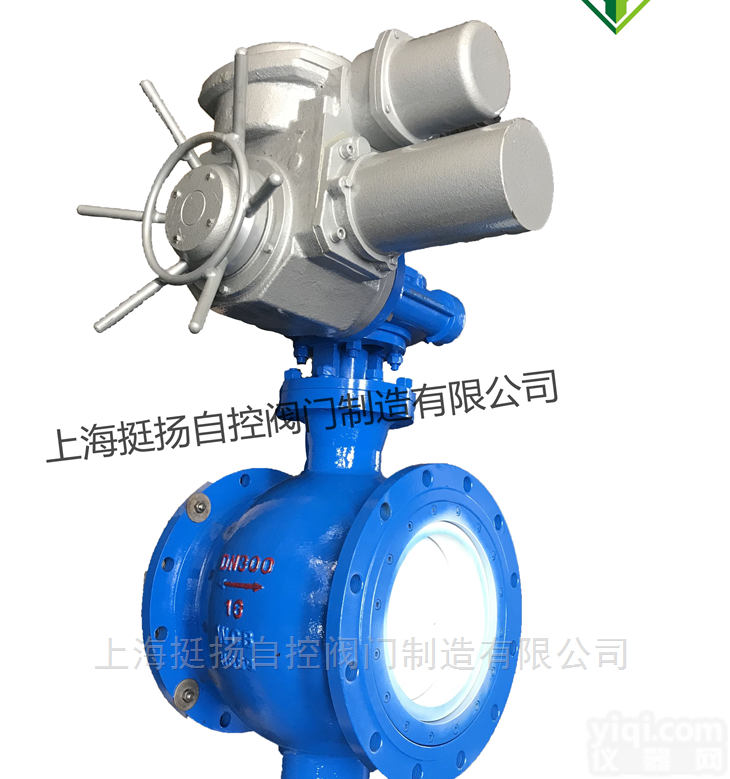

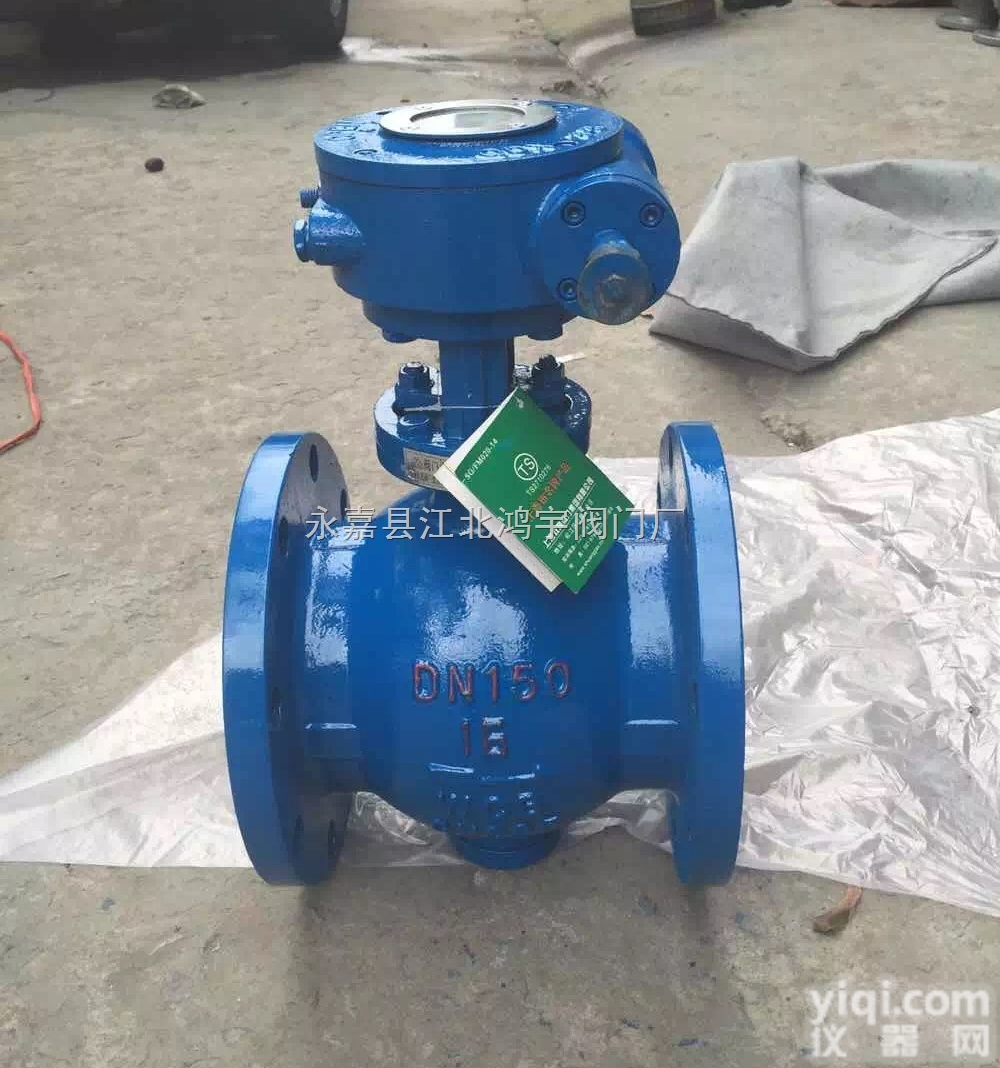

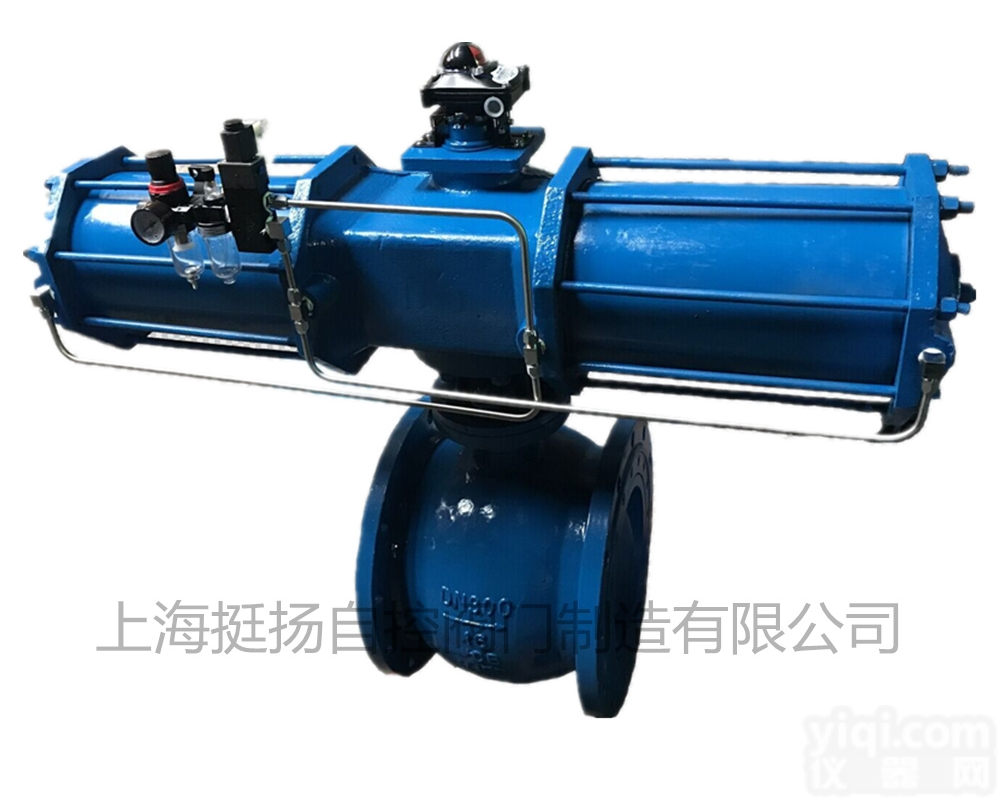

Q3（6、9）40F/Y、PQ3（6、9）40F/Y、PBQ3（6、9）40F/Y侧装式偏心半球阀

侧装式偏心半球阀产品概述:
PQ/PBQ采用偏心原理通过传动机构达到闸紧、调节、关闭的目的，密封副是金属面环带硬面接触密封，双偏心结构在开启时阀芯位于藏球室内，流通截面大，且阀门不被冲刷，关闭时阀芯不被冲刷，开启时阀芯球面沿阀座渐进，有效地切除结垢障碍，实现可靠密封，它对两相混流易结垢固体析出的混流输送特别有效。主要用于污水处理、纸浆、电厂、水力除渣、气态输送管道的控制、城市采暖供热等要求严紧的场合。
特点及优点
●流通面积大，流阻小。这是因为开启后阀芯位于藏球室，流体直通。
●操作扭矩小，转90度即可启闭完成，操作轻便。
●密封严紧，双偏心金属硬密封。半球用双金属，母材上堆焊不同的合金，阀座也作相应堆焊经特殊的处理，密封面组合成防腐、耐磨、高强度等各种类型，满足不同场合需求，结垢不影响启闭，这是偏心半球阀zui显著的优点。
●使用寿命长，密封副的阀芯留有补偿量，当阀座磨损（阀座硬度低于阀芯）后，关闭时再转动少许，仍能可靠密封，延长使用寿命，此外，用户将压紧螺母拧掉，调整或更换后阀座仍可使用，避免了现行众多阀门密封失效整台报废的弊端。
设计与制造标准：
●设计与制造：API608 、GB/T12237
●结构长度：ANSI/ASME B16.10、GB/T12221
●法兰尺寸：ANSI/ASME B16.5、 JB/T79　
●对焊连接尺寸：ANSI/ASME B16.25、GB/T12224
●检验与试验：API598、JB/T9092

压力试验

的材料明细表

注:客户需求的其他材质也可采用.密封面材料配对客户指定内件代号决定

主要安装尺寸及重量：
