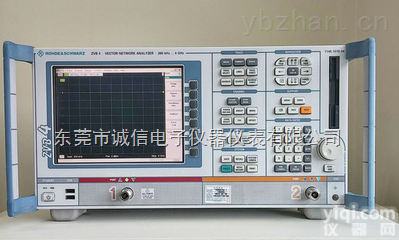

Rohde&Schwarz ZVB4 4G矢量网络分析仪|罗德与施瓦茨 300kHz至4GHz

品Pai：罗德与施瓦茨 Rohde&Schwarz

The R&S®ZVB series of vector network analyzers covers the frequency ranges from 300 kHz to 4/8 GHz and from 10 MHz to 14/20 GHz. It has been designed for universal measurements on passive and active components. The R&S®ZVB series greatly simplifies vector network analysis especially for multiport measurements and measurements on balanced devices. Featuring comprehensive measurement functions, excellent specifications, high measurement and data transfer speeds and remote-control capability, the analyzers of the R&S®ZVB series are an ideal choice for both development and production applications. The compact versions of the 14 GHz and 20 GHz two-port models leave ample room for test setups in the lab, featuring a height of only 24 cm and a depth of 42 cm.

New multiport concept
◇ Instruments with two or four test ports – for multiport and balanced measurements
◇ Two internal sources （four-port models） – to provide RF and LO signals for mixer measurements by means of a single unit
◇ Capability to perform balanced measurements – to characterize balanced DUTs by their mixed mode S-parameters
◇ Optional automatic calibration units – to speed up calibration and avoid operator errors
Outstanding specifications
◇ 60001 points per trace
◇ Dynamic range better than 123 dB （typ. 130 dB）
◇ Power sweep range >50 dB
High speed
◇ Measurement time < 4.5 ms for 201 test points （frequency sweep）
◇ Switching time between channels < 1 ms
◇ Switching time between instrument setups < 10 ms
◇ Data transfer time < 0.7 ms （201 test points via RSIB）
◇ Simultaneous measurement of more than one DUT
Modern user interface
◇ Intuitive Windows-based operation via mouse
◇ Operation by means of hardkeys and softkeys
◇ Large number of channels, traces and setups that can be loaded simultaneously
