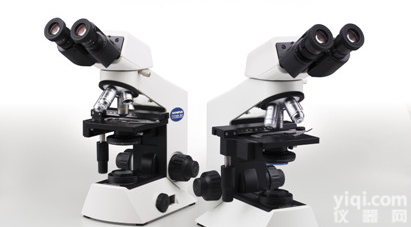

CX22 和CX22LED是奥林巴斯教学临床级显微镜CX2系列的成员，适用于学校，学院和诊所使用。

CX22 ａnd CX22LED are the most new members Olympus teaching clinical stage microscope CX2 series, suitable for schools, schools ａnd clinics.


Olympus CX22 ａnd CX22LED （Olympus CX22/Olympus CX22LED） is a microscope using the infinity corrected lens, will bring clarity of full field, high contrast images, at the same time, Abbe condenser increased visibility ａnd contrast specimens. And CX22 and CX22LED of the price advantage, very suitable for school teaching, especially for the students, carrying the design for CX22 ａnd CX22LED, the mobile becomes very light microscope.

CX22 和CX22LED是奥林巴斯教学临床级显微镜CX2系列的成员，适用于学校，学院和诊所使用。CX22LED延续了该系列的光学品质，更添加了低能耗、可使用十年以上*的长寿命LED光源。CX22使用内置卤素灯提供明亮的照明。改良的铰链式双目观察筒，眼点高度调节范围达到50mm。视场数（F.N.）达到20，提供了更大的观察范围。

CX22 ａnd CX22LED are the most new members Olympus teaching clinical stage microscope CX2 series, suitable for schools, schools and clinics. CX22LED continuation of excellent optical quality of the series, add to the low energy consumption, can be used more than ten years * long-life light source of LED. CX22 use the built-in halogen lamp provides bright lighting. Hinge eyes improved observation tube, eyepoint height adjustment range up to 50mm. Field （F.N.） reached 20, provide a greater range of observation.

The optical system of infinity optical system

照明装置 6 V 20 W卤素灯泡 AC适配器：100-120/220-240 V 50/60 Hz的0.42/0.2 消耗功率：18.5 W

The lighting device 6 V 20 W halogen bulb AC adapter: 100-120/220-240 V 50/60 Hz 0.42/0.2 power consumption: 18.5 W

调焦系统 微调Z小距离2.5微米、精细：0.3、预调焦旋钮：粗调旋钮张力可调

Focusing system minimum distance trimming 2.5 micron, fine: 0.3, pre focusing knob: coarse adjusting knob adjustable tension

换镜转盘 固定4孔物镜转盘

Nosepiece fixed 4 hole rotating nosepiece

观察筒 视场数20，视点调整：378 - 428毫米，双目观察筒，镜筒倾角为30°，瞳间距48-75mm

To observe the barrel field number 20, view adjustment: 378 - 428 mm, binocular cylinder, cone angle is 30 °, interpupillary distance 48-75mm

载物台明装置 钢丝传动，尺寸为120mm × 132mm，活动范围为X轴向76mm × Y轴向30mm，单片标本夹

The stage lighting equipment wire transmission, the size is 120mm × 132mm, activity range of X axial 76mm × Y axial 30mm, monolithic specimen holder

聚光镜 阿贝聚光镜，数值孔径1.25（浸油时），内置虹膜式光圈

Condenser Abbe condenser, a 1.25 numerical aperture （when soaked in oil）, built-in iris diaphragm

物镜 物镜（抗真菌）

Objective lens （antifungal）

4x NA: 0.10 WD: 27.8 mm

4x NA: 0.10 WD: 27.8 mm

10x NA: 0.25 WD: 8 mm

10x NA: 0.25 WD: 8 mm

40x NA: 0.65 WD: 0.6 mm

40x NA: 0.65 WD: 0.6 mm

100xOil NA: 1.25 WD: 0.13 mm （CX22LEDRFS1 ａnd CX22RFS1 only）

100xOil NA: 1.25 WD: 0.13 mm （CX22LEDRFS1 ａnd CX22RFS1 only）

尺寸和重量 154（W）×385（H）×238（D）mm ,约6公斤

The size and weight of 154 （W） * 385 （H） * 238 （D） mm, about 6 kg

工作环境 室内使用,环境温度：5°C至40°C（41°F至104°F）,相对湿度80%，温度为31°C

The working environment for indoor use, environment temperature: 5 ° C to 40 ° C （41 ° F to 104 ° F）, 80% maximum relative humidity, temperature is 31 ° C
