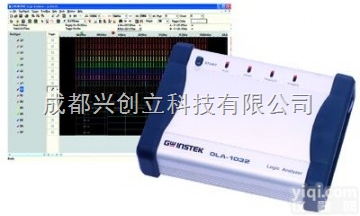

32 Input ChannelTime Analysis : Up to 200MHz Internal Sampling RateState Analysis : Up to 100MHz External Input ClockMemory Depth : Up to 256kbits/128kbits (Half/Full Channels)Advanced Trigger : Count, Page, Time Delay and Clock Event DelayData Compression : Up to 255 Times Data CaptureEnable Qualifier : High/Low Level Enable and Enable Delay FunctionSignal Analyzer : I2C, RS-232C Protocol Analyzer and Signal StatisticsFile Export : Signal Data, Operation Setting and Display ImageManual Trigger Start ButtonHigh-Speed Communication : USB 2.0 (1.1 Compatible)USB Powered, Without External AC Power
規格
MAIN
Channels
32
MEMORY TOTAL/PER CHANNEL
4Mbits/128kbits
INTERFACE
USB 2.0 (1.1)
OPERATING SYSTEM
Win98/98SE/Me/2000/XP
TIMING ANALYSIS
Maximum 200MHz
STATE ANALYSIS
0.001Hz ~ 100MHz
TRIGGER
Channel
32
Condition
Edge/Pattern
Pre/Post trigger
0%~
Level
1
Threshold
+6V ~ -6V
Accuracy
±93mV
Delay
Time delay, Clock event delay
Count
1 ~ 65535
Page
Maximum 8191
INPUT
Maximum Input Voltage
±30V
Impedance
500kΩ/10pF
Data Skew
< 1.5ns
ENABLE QUALIFIER
Channel
32
Enable Condition
Don't care, Low, High
Enable Delay
1 ~ 65535ms
DATA
Compression Channels
24
Compression Ratio
Maximum 255
Signal Statistics
Postive/Negative, Full cycle within length condition
Protocol Analyzer
I2C, RS-232C
CURRENT CONSUMPTION
Static
Maximum 200mA
Working
Maximum 400mA
POWER DISSIPATION
Static
Maximum 1W
Working
Maximum 2W
POWER
Interface
USB
Working Voltage
4.5V ~ 5.5V
TEMPERATURE
Operating
0°C ~ 50°C
Storage
-40°C ~ 80°C
DIMENSIONS & WEIGHT
137(W) x 39(H) x 102(D) mm Approx. 340g
REMARK
The specifications apply under the following conditions: GLA is powered on for at least 30 minutes, within +20°C ~ +30°C
