X-Y轴操作比例照明水平控制使有较好的触发TV同步电路信号延时线6"大面积高亮CRT在高频率时有较大的动态范围高的偏转系数Z大的扫描时间为20ns/div可调定变量功能延时扫描功能规格

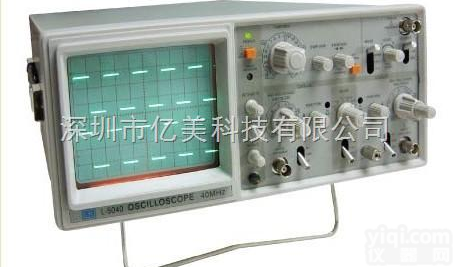

| OS-5040A |
| 阴极管 | 配置和有效视频 | 6 inch rectangular screen with internal graticule: 8x10DIV (1div=1cm), marking for measurement of rise time. 2mm subdivisions along the central axis |
| 加速电势 | +12kV approx |
| 荧光器 | P31 (Standard) |
| 聚焦 | Possible |
| 旋转线迹 | provided |
| 亮度控制 | provided |
| 高强度Z轴输入 | 输入信号 | Positive going signal decreases intensity + 5Vp-p or more signal cases noticeable modulation at normal intensity settings |
| 频宽 | DC to 2MHz (-3dB) |
| 触发耦合 | DC |
| 输入阻抗 | 20kOhm - 30kOhm |
| Z大输入电压 | 30V (DC + peak AC) |
| 垂直偏移 | 频宽 | DC(10Hz) to 40MHz DC(10Hz) to 7MHz(x 5 Mag on) |
| 模式 | CH1,CH2,DUAL,ADD (CHOP: tIME/DIV switch-0.2s to 5ms, ALT: Time/div 2ms to 0.2us) |
| 偏转系数 | 5mV/div to 5V/div to 1mV/div (x 5 Mag on) in 10 calibrated steps of 1-2-5 sequence |
| 准确度 | +/-3% For OS-5100; +/-3% (+/-5%:x Mag on) |
| 输入阻抗 | Approx, 1Mohm in parelle1 with 25pF |
| Z大输入电压 | Direct 250V (DC + AC Peak)) |
| 输入耦合 | DC- GND - AC |
| 延升时间 | 8.8ns or less 50ns or less: x 5 MAG) |
| 通道1输出 | 20mV/div into 50ohm : DC to 10MHz (-30dB) |
| 极性逆向 | CH2 only |
| 水平偏移 | 显示方式 | A, A int B, B TRIG'D ,X-Y |
| A 时基 | 0.1us/div to 0.2s/div in 19 calibrated steps 1-2-5 sequence |
| 锁定时间 | Variable with the holdoff control |
| B 时基 | 0.2us/div to 20us/div in 7calibrated steps 1-2-5 sequence |
| 延时扫描定位 | 1 div or less to 10 div or more |
| 延迟拌动 | better than 1:20000 |
| 扫描放大 | 10 times (max sweep rate : 10ns/div) |
| 准确度 | +/-3%,+/-5% ( additional error for magnifier 2%) |
| 触发系统 | 触发模式 | AUTO, NORM ,TV, TV-H |
| 触发源 | LINE, EXIT, CH1,CH2 |
| 耦合 | AC |
| 倾斜率 | + or - |
| TV-V, TV-H | At least 1 div or 1.0Vp-p |
| 外部触发输入阻抗 | 1MOhm (in parall1 with approx. 22pF) |
| 灵敏度和频率自动或标准 | 20hZ-2MHz 2MHz-40MHz
INT 0.5div 1.5div
EXT 0.2Vp-p 0.8Vp-p |
| Z大输入电压 | 250V (DC + Peak AC) |
| X-Y 轴操作 | 敏感度 | Same as vertical delflection for both, X-axis(CH1) and Y-axis(CH2) |
| X轴频宽 | DC to 2MHz |
| X-Y轴相位模式 | 3ºor less (at DC to 50kHz) |
| 校准器 | 可调探针 | approx. 1KHz frequency, 0.5Vp-p (+/-3%) duty ratio:50% |
| 电源供应 | 电压范围 | | Voltage Range | Fuse (250V) | | 100(90-110V)AC | 2A 250V | | 120(108-132V)AC | 2A 250V | | 220(198-242V)AC | 1A 250V | | 230(207-250V)AC | 1A 250V |
|
| 电压频率 | 50/60Hz |
| 功率 | approx: 40W |
| 物理参数 | 尺寸 | 320(W)×140(H)×430(L)mm |
| 重量 | 7.2kg |
| 其他 | 附件 | operator's manual 1, Spare fuse 2 Power cord 1, Probe(option)2 |
