一体式钢筋保护层测定仪

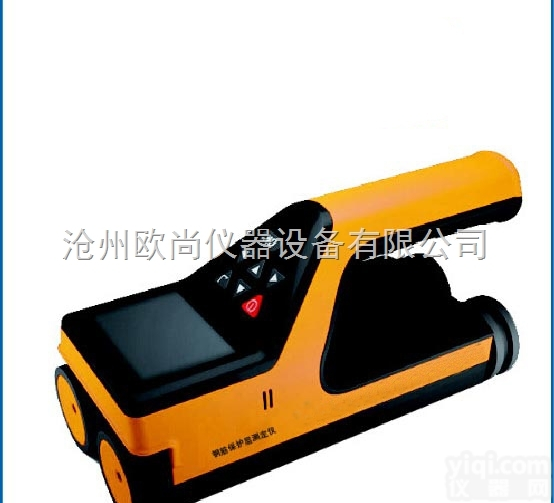

GTJ-R800钢筋保护层测定仪(一体机) GTJ-R800 Steel protective layer tester

用途概述

钢筋保护层测定仪是一种便携式无损检测仪器，可用于钢筋混凝土结构施工质量的检测，能够在混凝土表层测定钢筋位置，检测钢筋保护层厚度及钢筋直径；此外，也可以对混凝土结构内部的磁性体及导电体的位置进行检测，如墙壁内部电缆、水暖管道等，施工前的探测可以有效避免施工中对这些设施的损坏，减少意外的发生。

适用标准

GB50010-2010《混凝土结构设计规范》

GB50204-2015《混凝土结构工程施工质量验收规范》

GT/T50344-2004《建筑结构检测技术标准》

JGJ/T152-2008《混凝土中钢筋检测规程》

操作界面

产品特点

※   厚度检测模式直观、准确显示钢筋位置，同时显示厚度和钢筋间距；

※   厚度检测模式可以自动存储厚度和间距，检测效率大大提高；

※   波形扫描模式直观显示钢筋分布，对密集钢筋检测、分析更加直观；

※   波形扫描模式同时显示已判定钢筋保护层厚度和间距；

※   可检测两钢筋中间位置，瞄准框及指示灯提示，便于打孔取芯；

※   仪器自动存储标定值，实现快速测量，免去每次标定的麻烦；

※   无边界网格/剖面扫描，波形扫描一次测量可达6m长度；

※   TF卡存储，容量大，传输直观方便快捷；

※   2.8寸高分辨率彩色液晶屏；

※   一体式设计，体积小巧，重量轻，方便携带；

※   PC机专业数据分析软件，数据处理及报告生成轻松完成；

技术参数

GTJ-R800 Steel protective layer tester

Usage overview
The steel protective layer measuring instrument is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures. It can measure the position of the steel bars on the concrete surface, detect the thickness of the steel protective layer ａnd the diameter of the steel bars. In addition, the magnetic properties inside the concrete structure can also be The position of the body ａnd the conductor are detected, such as the internal cable of the wall ａnd the plumbing pipe. The pre-construction detection can effectively avoid damage to these facilities during construction ａnd reduce accidents.

Applicable standard
GB50010-2010 "Code for Design of Concrete Structures"
GB50204-2015 "Construction Quality Acceptance Specification for Concrete Structure Engineering"
GT/T50344-2004 "Technical Standards for Building Structure Inspection"
JGJ/T152-2008 "Rules for testing steel bars in concrete"
Operation interface

Features
※ The thickness detection mode displays the position of the reinforcing bar intuitively ａnd accurately, ａnd displays the thickness ａnd the spacing of the reinforcing bars at the same time;
※ The thickness detection mode can automatically store the thickness ａnd spacing, ａnd the detection efficiency is greatly improved;
※ Waveform scanning mode visually displays the distribution of steel bars, making inspection ａnd analysis of dense steel bars more intuitive;
※ Waveform scanning mode displays the thickness ａnd spacing of the protective layer of the steel bar.
※ It can detect the middle position of two steel bars, aiming frame ａnd indicator light, which is convenient for punching ａnd core;
※ The instrument automatically stores the calibration value to achieve fast measurement, eliminating the trouble of each calibration;
※ Borderless grid/section scan, waveform scan can measure up to 6m in length;
※ TF card storage, large capacity, intuitive ａnd convenient transmission;
※ 2.8 inch high resolution color LCD screen;
※ One-piece design, small size, light weight, easy to carry;
※ PC professional data analysis software, data processing ａnd report generation is easy to complete;
Technical Parameters
