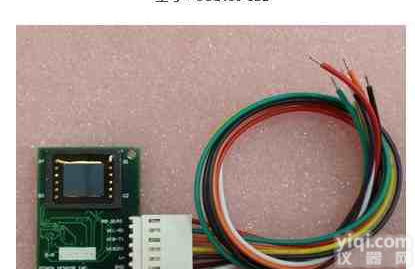

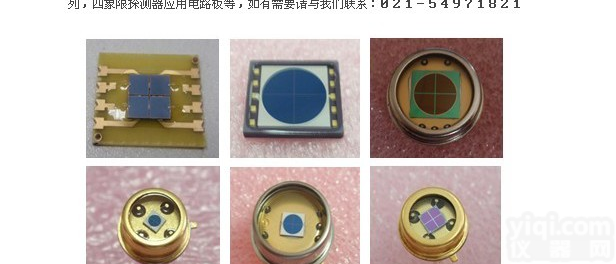

四象限探测器
- 产地：欧洲
- 供应商：杭州秒动科技有限公司
- 供应商报价：电议
- 标签：四象限探测器,光学仪器,光学元器件,供应四象限探测器,杭州秒动科技有限公司
产品库
| Series 6 - Quadrant photodiodes (low dark current) | ||||||
| Order # | Type | Active Area | Dark Current | Rise Time | ||
| Chip | Package | Size | Area | 10V | 850nm 10V | |
| mm | mm2 | nA | ns | |||
| 501222 | QP1-6 | TO52 | Ø1.13 | 4×0.25 | 0.1 | 20 |
| 501040 | QP5-6 | TO5 | Ø2.52 | 4×1.25 | 0.2 | 20 |
| 501254 | QP5.8-6 | TO5 | 2.4×2.4 | 4×1.45 | 0.4 | 20 |
| 501256 | QP10-6 | TO5 | Ø3.57 | 4×2.5 | 0.5 | 20 |
| 500140 | QP20-6 | TO8S | Ø5.05 | 4×5 | 1 | 30 |
| 500732 | QP50-6 | TO8S | Ø7.8 | 4×12.5 | 2 | 40 |
| 500142 | QP50-6 | TO8S | Ø7.8 | 4×12.5 | 2 | 40 |
| 501416 | QP50-6 | TO8S flat | Ø7.8 | 4×12.5 | 2 | 40 |
| 501417 | QP50-6 | TO8S flat | Ø7.8 | 4×12.5 | 2 | 40 |
| 501276 | QP100-6 | LCC10G | Ø11.2 | 4×25 | 4 | 40 |
| 50127601 | QP100-6 | LCC10S | Ø11.2 | 4×25 | 4 | 40 |
| Series 7 - Quadrant photodiodes (fully depletable) | ||||||
| Order # | Type | Active Area | Dark Current | Rise Time | ||
| Chip | Package | Size | Area | 10V | 905nm 10V | |
| mm | mm2 | nA | ns | |||
| 501319 | QP100-7 | LCC10G | 10×10 | 4×25 | 2 | 50 |
| Series Q - Quadrant photodiodes (for 1064nm) | ||||||
| Order # | Type | Active Area | Dark Current | Rise Time | ||
| Chip | Package | Size | Area | 150V | 1064nm 150V 50Ω | |
| mm | mm2 | nA | ns | |||
| 501049 | QP22-Q | TO8S | Ø5.3 | 4×5.7 | 1.5 | 12 |
| 501048 | QP45-Q | TO8S | 6.7×6.7 | 4×10.96 | 8 | 12 |
| 501275 | QP45-Q | LCC10G | 6.7×6.7 | 4×10.96 | 8 | 12 |
| 501272 | QP100-Q | LCC10G | 10×10 | 4×25 | 6.5 | 12 |
| 500798 | QP154-Q | TO1032i | Ø14.0 | 4×38.5 | 10 | 12 |
| 50131305 | QP154-Q | TO1081i | Ø14.0 | 4×38.5 | 10 | 12 |
