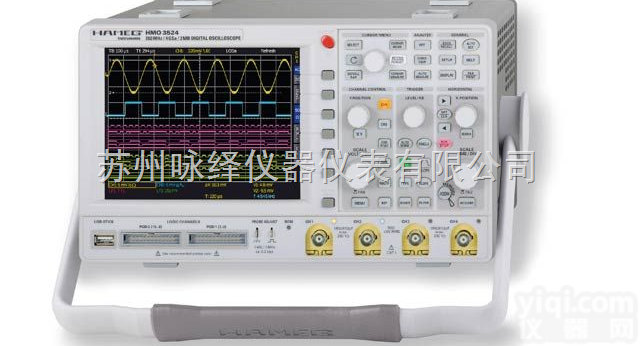

HMO3524 HMO3524德国惠美数字示波器
- 品牌：德国惠美
- 型号：HMO3524
- 供应商：咏绎电子科技（苏州）有限公司
- 供应商报价：面议
- 标签：HMO3524德国惠美数字示波器,-1,咏绎电子科技（苏州）有限公司
产品库
HMO3524德国惠美数字示波器丨苏州咏绎
主要特点
4 GSa /s Real Time, Low Noise Flash A /D Converter
8 MPts Memory, Zoom up to 200,000:1
MSO functionality included, HO3508 [HO3516] Logic Probe with 8 [16] Logic Channels required
Serial Bus Trigger and Hardware accelerated Decode including List View. Options: I2C + SPI + UART/RS-232 （HOO10/HOO11）, CAN + LIN （HOO12）
Vertical Sensitivity 1 mV/div., Offset Control ±0.2…±20 V
6-Digit Hardware Counter
Real-Time FFT （dBm, dBV, Vrms）, up to 64 kPts
Automatic Search for user-defined Events
Pass/Fail Test based on Masks
Auto-Measurement: max. 6 Parameters incl. Statistic, Formula Editor, Ratio Cursor
Display Range: 12 div. x-Axis, 20 div. y-Axis （VirtualScreen）
Trigger Modes: Slope, Video, Pulsewidth, Logic, Delayed, Event, Hold-Off
Automatically or manually adjustable Memory Depth
3 x USB for Mass Storage and Remote Control
参数规格
