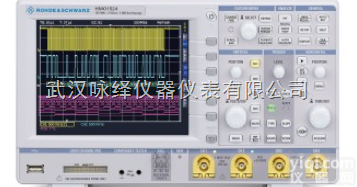

HMO1522 HMO1522德国惠美数字示波器
- 品牌：德国惠美
- 型号：HMO1522
- 供应商：咏绎电子科技（苏州）有限公司
- 供应商报价：面议
- 标签：HMO1522德国惠美数字示波器,-1,咏绎电子科技（苏州）有限公司
产品库
HMO1522德国惠美数字示波器丨苏州咏绎
主要特点
2 GSa/s Real Time, Low Noise Flash A/D Converter （Reference Class）
2 MPts Memory, Memory Zoom up to 50,000:1
MSO （Mixed Signal Opt. HO3508） with 8 Logic Channels
Serial Bus Trigger and Hardware accelerated Decode incl. List View. Options: I2C + SPI + UART/RS-232, CAN/LIN
Automatic Search for User defined Events
Pass/Fail Test based on Masks
Vertical Sensitivity 1 mV/div., Offset Control ±0.2...±20 V
12 div. x-Axis Display Range, 20 div. y-Axis Display Range （VirtualScreen）
Trigger Modes: Slope, Video, Pulsewidth, Logic, Delayed, Event
Component Tester, 6 Digit Counter, Automeasurement: max. 6 Parameters incl. Statistic, Formula Editor, Ratiocursor, FFT: 64 kPts
Fan: Silence redefined
3 x USB for Mass Storage, Printer and Remote Control
