MS8604A 全国回收Anritsu MS8604A回收MS8604A安立数字移动无线发射机测试仪

产品信息

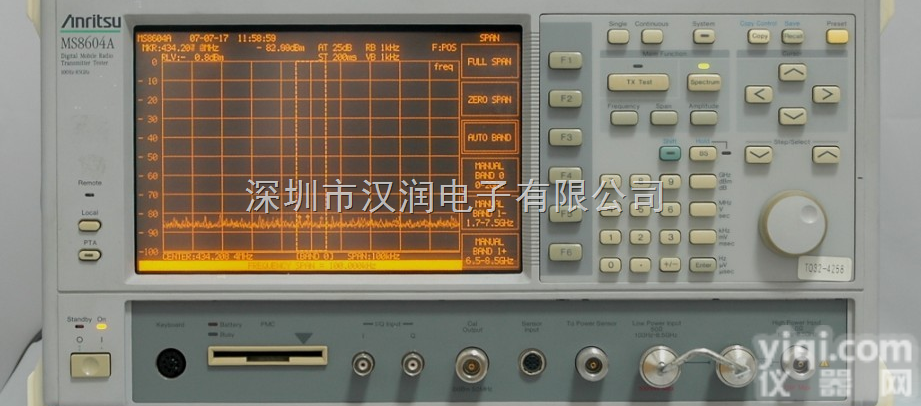

全国回收Anritsu MS8604A回收MS8604A安立数字移动无线发射机测试仪

华盛仪器长期向全国各地，以及上海、苏州、深圳、东莞、惠州、广州、中山等地区的个人，公司、单位，上门专业高价回收库存积压电子仪器仪表 手机综合测试仪、蓝牙测试仪、网络分析仪、频谱分析仪、信号源信号发生器、示波器、功率计、频率计、误码仪、LCR电桥、电源、数据采集仪、噪声系数分析仪、多用表校准仪、万用表、天馈线测试仪安立、温度记录仪、逻辑分析仪、红外热像仪、色彩分析仪、光波测量系统、阻抗测试治具及附件、衰减器、光纤熔接机、光谱仪等等。

全国回收Anritsu MS8604A回收MS8604A安立数字移动无线发射机测试仪

特点
·100Hz~8.5GHz
·由单一系统评估主发射机功能
·与NADC,PDC,PHS,数字MCA, GSM, DCS1800(PCN), CT2, DECT,WCPE,PACS,RCR STD-39 TETRA系统及GMSK和π/4 DQPSK通用测量软件相兼容;
·高速测量(调制精度测量小于1s)
·输入共10W(内部有用于高功率测量的20dB衰减器及功率计
技术指标

GeneralFrequency
range		100Hz to 8.5GHz
Maz.input
level
(continuous
wave
average
power)		+40dBm(10W)
Reference oscillatorFrequency:10MHz
Starting characteristics:≤5×0.00000001/day(option:≤2×0.00000001/day after30 min.warm-up)
*After 10min.of warm-up,compared to the frequency after 24-hour warm-up
Aging rate:≤2×0.00000001/day(option:≤5×0.000000001/year)
*Compared to the frequency after 24-hour warm-up
Temperature characteristics:5×0.00000001/day(option:3×0.00000001/day)
*0to 50℃,relative to the frequency at 25℃
Spectrum
anallyzer		Frequency

Setting range:100Hz to 8.5GHz(resolution:1Hz),0to 2GHz(freq.band:0),1.7to7.5GHz(freq.band:1-),6.5to 8.5GHz(freq.band:1+)
Preselector range:1.7to 8.5GHz (bands:1-/1+)
Display accuracy:±(display freq.×reference freq.accuracy+span×span accuracy)
Span
Setting range:0Hz,100Hz to 8.5GHz
Accuracy: ±2.5%(span≥1kHz),±5%(100Hz≤span<1kHz)
RBW
Setting range:10Hz to 3MHz(3dB),1-3serqence
Accuracy:±20%
Selectivity(60/3dB);≤15:1(100kHz to 3MHz),≤12:1(10Hz to 30kHz)
VBW:1Hz to 3MHz,off,1-3 seqrence
Signal purity(SSB,1MHz to 4GHz):
≤-100dBc/Hz(10kHz offset,≤-115dBc/Hz(50kHz offset),≤-120dBc/Hz(100kHzoffset)

Spec-
trum analyzer		Ampl-
itude		LevelLevel measuring range:Average:Average noiselevl to +40dBm
Average noise level:≤-112dBm(10MHz to 8.5Ghz,RBW 10Hz,VBW 1Hz,input att.setting20dB)
Residual reponse:≤-75dBm(1MHz to 8.5GHz,input att.setting 20dB)
Reference
level		Setting range:-80to +40dBm
Accuracy:±0.5dB(-30to +20dBm),±0.75dB(-40to -30dBm,+20to +40dBm),±1.5dB(-60to-40dBm)
*After calibration and at freq.100Mhz,span≤2MHz,and in auto mode for inputatt ,RBW,VBW and sweep time settings
RBW switching error(after calibration):±0.3dB(RBW:≤300kHz),
Frequency reponse±0.5dB(100MHz to 2GHz,band:0),±1dB(1.7to8.5GHz,bands:1-/1+)
Linearity(
after calibration)		LOG:±0.3dB(0to -20dB,RBW:≤100kHz),±1.5dB(0to-80dB,RBW≤10kHz)
LIN:±5%(to reference level)
Dynamic
range		2nd harmonics:
≤-70dBc(5to 800MHz,band:0,mixer input level:-30dBm)
≤-80dBc(800to 850MHz,band:0,mixer input level:-30dBm),
≤-90dBc(850MHz to 2.1GHz,bands:1-,mixer input level:-10dBm)
Two-signal third-ouder intermodulation distortion:≤-70dBc(10to 50MHz),≤-85dBc(50MHzto 2.1GHz)
*Frequency difference between two signals≥50kHz,mixer input level:-30dBm
SweepSweep time
Setting range:20ms to 1000s(TRACE-FREQ,data points:NORMAL),50ms to 1000s at other conditions
Accuracy:±10%(20ms to 200s),±15%(200 to 1000s)
Sweep mode:CONTINUOUS,SINGLE
Trigger:FREE RUN,TRIGGERED
Trigger source:VIDEO,LINE,EXT(±10V),EXT(TTL)
Gate mode(OFF,random sweep mode)
GATE DELAY:0to 65.5ms(in 1μs steps,GATE END:INT)
GATE END:INT/EXT
Time
domain
waveform
display		Sweep fime:50,100to 900μs(data point:NORMAL,Onemost significant digit can be set.)
1ms to 1000s(data point:NORMAL,Two most significant digits can be set)
100,200to800μs(data point:DOUBLE,One most significant digit can be set aseven number.)
1ms to 1000s(data point:DOUBLE,Two most significant digits can be set aseven number.)
Delay time
Pre-trigger.-time span to 0s(in 1point steps)
Post trgger:0to 65.5ms(in 1μssteps)
Amplitude display resolution:50μsto 49ms,10bits*0.1%of full scale)
50ms to 1000s,14bits(0.01%of full scale)
Detection
mode		POS PEAK,SAMPLE,NEG PEAK
Number
of
points		NOUMAL:501 points,DOUBLE:1002points
AM/FM
demodu-
lation		Demodulated waveform display and monitoringdemodulated audio signal with internal speaker
  Auxiliary inputs/
outputs		IF output21.4MHz:-10dBm±2dB(at top of
screen,with output terminated by 50Ωteminator),BNC connector
Youtput:0to 0.5V±0.1V(at range between
top and bottom of screen,LOG:10dB/div,LIN:10%/div,100MHz
and with output terminated by 75Ω
terminator),BNC connector
External trgger input
Input1:max.±10V(in 0.1V steps,
rising/falling edges selectable
and pulse width≥10μs),BNC connector
Input2:TTL level(rising/falling
edges selectable and pulse width≥10μs,
)BNC connector
Power meterFrequency range100kHz to 5.5GHz
Level range-20to +20dBm
Instrumentation
accuracy		±0.5%
Zero set±0.5% of full scale at most
sensitive range(100μW range)
Zero shift between
ranges		±0.2% of full scale zero setting at mostsensitive range
Calibration oscillatorFreq:50MHz,Output:1.00mW,Accuracy:±1.2%
Applicable power
sensor		MA4601A
OthersDisplay640×400dot,9-inch EL
Inputs/outputs on rear panelReference input:10MHz±10Hz,2to 5Vp-p,
≥50Ω,BNC connector
Reference buffer output:10MHz,2to
3Vp-p(with the output terminated by
200Ω terminator),BNC connector
Separate video output:Compatible
with 8-pin DIN connector
External memoryOne slot for can be connected
Save/recallInternal memory(4sets of spectrum
and Tx test conditions),can
save/recall setting conditions
at extemal memory(PMC)
Direct plottingCan hard-copy screen via GPIB2
External controlGPIB1
(IEEE488.2)		As device controlled by host,all
functions except power swetch
Controls other instruments as controller
using PTA
SH1,AH1,T6,L4,SR1,RL1,PP0,DC1,DT1,
C0(C1,C2,C3,and C24with PTA)
GPIB2
(IEEE488.1)		Controls other instruments as controller
SH1,AH1,T6,L4,SR1,RL1,PP0,DC1,DT1
,C1,C2,C3,C4,C28
I/O portOutput port A/B:8-bit(TTL level),
Input/Output port C/C:4-bit(TTL level),
EXclusive port:3-bit(TTL level)
Control signal:4(TTL level),+5V
output:Max.50mA
RS-232C
(Option 02)		Controls other instruments as
controller
PTALanguagePTL:High level languaeg interpreter
based on BASIC
ProgrammingUsing external keyboard
Program
memory		On PMC or FD
Upload/download from/to PC
Programming capacity900KB
Operating temperature0°to 50℃
Power85to 132/170 to 250Vac,47.5 to 63Hz
,≤500VA
Dimensions and mass426(W)×221.5(H)×451(D)mm,≤27kg
EMC*1EN55011:1991,Group1,ClassA
EN50082-1:1992
SafetyEN61010-1:1993(Installation CategoryII
,Pollution DegreeII)


订货信息

Applicable system

Measurement software

Application software(supplied by PMC)

PDC

Option11

MX3512A

PHS

Option12

NADC

Option13

Digital MCA

Option14

MX3513A

GSM

Option15

MX3518A

DC1800(PCN)

DECt

MX3519A

CT2

MX3520A

General-purpose GMSK

-

WCPE

Option16

-

RCR STD-39

PACS

TETRA

General-purposeπ/4 DQPSK
