OPTOLONG荧光滤光片
- 品牌：OPTOLONG
- 型号：ff-300011
- 产地：中国大陆
- 供应商：昆明宇隆光电技术有限公司
- 供应商报价：¥3250
- 标签：OPTOLONG荧光滤光片、OPTOLONG荧光滤光片价格、OPTOLONG荧光滤光片厂家、、、昆明宇隆光电技术有限公司
产品库
| Substrate Paremeter | Exciation | Emission | Dichroic Mirror(L×W) |
| Dimensions（mm) | 25.0+0/-0.1 | 25.0+0/-0.1 | 25.2×35.6+0.1/-0.1 |
| Thickness | 5.0+0.1/-0.1 | 3.5+0.1/-0.1 | 1.05+0.05/-0.05 |
| Clear Aperture | ≧21 | ≧21 | ≧80% |
| Transmitted Wavefront(RMS) | ﹤2 ג | ﹤1 ג | ﹤1 ג |
| Angle Of Incidence | 0°+/-5° | 0°+/-5° | 45.0°+/-1.5° |
| Wedge | ﹤1′ | ﹤1′ | ﹤1′ |
| Scratch/Dig | 60/40 | 60/40 | 40/20 |
| Compatible Microscopes | Most common Olympus、Nikon、Zeiss Microsopes | ||
| Fluorophore | filter set | CWL(Edge) | Size (Standard with frame) |
| BFP | Exciation (CWL/BW) | 390nm/18nm | Dia25mm x 5mm |
| Emission (CWL/BW) | 460nm/60nm | Dia25 mm x 3.5 mm | |
| Dichroic (Edge) | 416nm | 25.2 mm x 35.6 mm x 1.1 mm | |
| CFP | Exciation (CWL/BW) | 438nm/24nm | Dia25mm x 5mm |
| Emission (CWL/BW) | 483nm/32nm | Dia25 mm x 3.5 mm | |
| Dichroic (Edge) | 458nm | 25.2 mm x 35.6 mm x 1.1 mm | |
| GFP | Exciation (CWL/BW) | 472nm/30nm | Dia25mm x 5mm |
| Emission (CWL/BW) | 520nm/35nm | Dia25 mm x 3.5 mm | |
| Dichroic (Edge) | 495nm | 25.2 mm x 35.6 mm x 1.1 mm | |
| YFP | Exciation (CWL/BW) | 500nm/24nm | Dia25mm x 5mm |
| Emission (CWL/BW) | 542nm/27nm | Dia25 mm x 3.5 mm | |
| Dichroic (Edge) | 520nm | 25.2 mm x 35.6 mm x 1.1 mm | |
| DAPI | Exciation (CWL/BW) | 387nm/11nm | Dia25mm x 5mm |
| Emission (CWL/BW) | 447nm/60nm | Dia25 mm x 3.5 mm | |
| Dichroic (Edge) | 409nm | 25.2 mm x 35.6 mm x 1.1 mm | |
| FITC | Exciation (CWL/BW) | 482nm/35nm | Dia25mm x 5mm |
| Emission (CWL/BW) | 536nm/40nm | Dia25 mm x 3.5 mm | |
| Dichroic (Edge) | 506nm | 25.2 mm x 35.6 mm x 1.1 mm | |
| TRITC | Exciation (CWL/BW) | 543nm/22nm | Dia25mm x 5mm |
| Emission (CWL/BW) | 593nm/40nm | Dia25 mm x 3.5 mm | |
| Dichroic (Edge) | 562nm | 25.2 mm x 35.6 mm x 1.1 mm | |
| Texas RedTM | Exciation (CWL/BW) | 562nm/40nm | Dia25mm x 5mm |
| Emission (CWL/BW) | 624nm/40nm | Dia25 mm x 3.5 mm | |
| Dichroic (Edge) | 593nm | 25.2 mm x 35.6 mm x 1.1 mm | |
| mChery | Exciation (CWL/BW) | 562nm/40nm | Dia25mm x 5mm |
| Emission (CWL/BW) | 641nm/75nm | Dia25 mm x 3.5 mm | |
| Dichroic (Edge) | 593nm | 25.2 mm x 35.6 mm x 1.1 mm | |
| Cy3 | Exciation (CWL/BW) | 531nm/40nm | Dia25mm x 5mm |
| Emission (CWL/BW) | 593nm/40nm | Dia25 mm x 3.5 mm | |
| Dichroic (Edge) | 562nm | 25.2 mm x 35.6 mm x 1.1 mm | |
| Cy5 | Exciation (CWL/BW) | 628nm/40nm | Dia25mm x 5mm |
| Emission (CWL/BW) | 692nm/40nm | Dia25 mm x 3.5 mm | |
| Dichroic (Edge) | 660nm | 25.2 mm x 35.6 mm x 1.1 mm | |
| Cy5.5 | Exciation (CWL/BW) | 655nm/40nm | Dia25mm x 5mm |
| Emission (CWL/BW) | 716nm/40nm | Dia25 mm x 3.5 mm | |
| Dichroic (Edge) | 685nm | 25.2 mm x 35.6 mm x 1.1 mm | |
| ICG | Exciation (CWL/BW) | 769nm/41nm | Dia25mm x 5mm |
| Emission (CWL/BW) | 832nm/37nm | Dia25 mm x 3.5 mm | |
| Dichroic (Edge) | 801nm | 25.2 mm x 35.6 mm x 1.1 mm |
| Fluorophore | Filter Set | Filter Coding | CWL(Edge) | Size |
| BFP | Exciter | BP-EX01A | 390/18 | 25mm |
| Emiter | BP-EM01A | 460/60 | 25mm | |
| Dichroic | BP-DM01A | 416 | 25.2mm*35.6mm | |
| CFP | Exciter | BP-EX02A | 438/24 | 25mm |
| Emiter | BP-EM02A | 483/32 | 25mm | |
| Dichroic | BP-DM02A | 458 | 25.2mm*35.6mm | |
| GFP | Exciter | BP-EX03A | 472/30 | 25mm |
| Emiter | BP-EM03A | 520/35 | 25mm | |
| Dichroic | BP-DM03A | 495 | 25.2mm*35.6mm | |
| YFP | Exciter | BP-EX04A | 500/24 | 25mm |
| Emiter | BP-EM04A | 542/27 | 25mm | |
| Dichroic | BP-DM04A | 520 | 25.2mm*35.6mm | |
| DAPI | Exciter | BP-EX0 | 387/11 | 25mm |
| Emiter | BP-EM0 | 447/60 | 25mm | |
| Dichroic | BP-DM0 | 409 | 25.2mm*35.6mm | |
| FITC | Exciter | BP-EX06A | 482/35 | 25mm |
| Emiter | BP-EM06A | 536/40 | 25mm | |
| Dichroic | BP-DM06A | 506 | 25.2mm*35.6mm | |
| TRITC | Exciter | BP-EX07A | 543/22 | 25mm |
| Emiter | BP-EM07A | 593/40 | 25mm | |
| Dichroic | BP-DM07A | 562 | 25.2mm*35.6mm | |
| Texas RedTM | Exciter | BP-EX08A | 562/40 | 25mm |
| Emiter | BP-EM08A | 624/40 | 25mm | |
| Dichroic | BP-DM08A | 593 | 25.2mm*35.6mm | |
| mChery | Exciter | BP-EX09A | 562/40 | 25mm |
| Emiter | BP-EM09A | 641/75 | 25mm | |
| Dichroic | BP-DM09A | 593 | 25.2mm*35.6mm | |
| Cy3 | Exciter | BP-EX10A | 531/40 | 25mm |
| Emiter | BP-EM10A | 593/40 | 25mm | |
| Dichroic | BP-DM10A | 562 | 25.2mm*35.6mm | |
| Cy5 | Exciter | BP-EX11A | 628/40 | 25mm |
| Emiter | BP-EM11A | 692/40 | 25mm | |
| Dichroic | BP-DM11A | 660 | 25.2mm*35.6mm | |
| Cy5.5 | Exciter | BP-EX12A | 655/40 | 25mm |
| Emiter | BP-EM12A | 716/40 | 25mm | |
| Dichroic | BP-DM12A | 685 | 25.2mm*35.6mm | |
| ICG | Exciter | BP-EX13A | 769/41 | 25mm |
| Emiter | BP-EM13A | 832/37 | 25mm | |
| Dichroic | BP-DM13A | 801 | 25.2mm*35.6mm | |
| DAPI | Exciter | BP-EX14A | 365/47 | 25mm |
| Emiter | BP-EM14A | 445/50 | 25mm | |
| Dichroic | BP-DM14A | 395 | 25.2mm*35.6mm | |
| FITC | Exciter | BP-EX1 | 475/40 | 25mm |
| Emiter | BP-EM1 | 530/50 | 25mm | |
| Dichroic | BP-DM1 | 500 | 25.2mm*35.6mm | |
| TexaRed | Exciter | BP-EX16A | 560/40 | 25mm |
| Emiter | BP-EM16A | 630/75 | 25mm | |
| Dichroic | BP-DM16A | 585 | 25.2mm*35.6mm | |

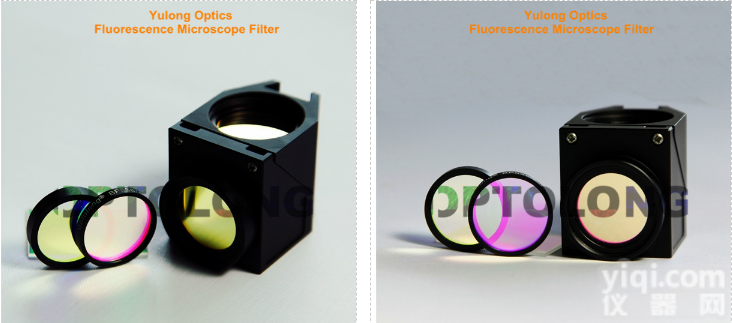

| Sp.Aqua HC mFISH | Exciter | BP-EX17A | 438/30 | 25mm |
| Emiter | BP-EM17A | 582/36 | 25mm | |
| Dichroic | BP-DM17A | 460 | 25.2mm*35.6mm | |
| Sp.Orange HC mFISH | Exciter | BP-EX18A | 542/26 | 25mm |
| Emiter | BP-EM18A | 587/25 | 25mm | |
| Dichroic | BP-DM18A | 564 | 25.2mm*35.6mm | |
| Sp.Gold HC mFISH | Exciter | BP-EX19A | 533/32 | 25mm |
| Emiter | BP-EM19A | 572/32 | 25mm | |
| Dichroic | BP-DM19A | 555 | 25.2mm*35.6mm |
