2个通道，2条轨迹无跳动而高触发灵敏度TV同步在观察信号时分离和锁定电路使用6"大面积高亮CRT具有较宽的频率响应信号延时线作为信号延时可供观察信号的起点交替模式触发功能根据改变亮度而可自动聚焦垂直低漂移放大中，漂移电路补偿可将垂直漂移试至Z低规格

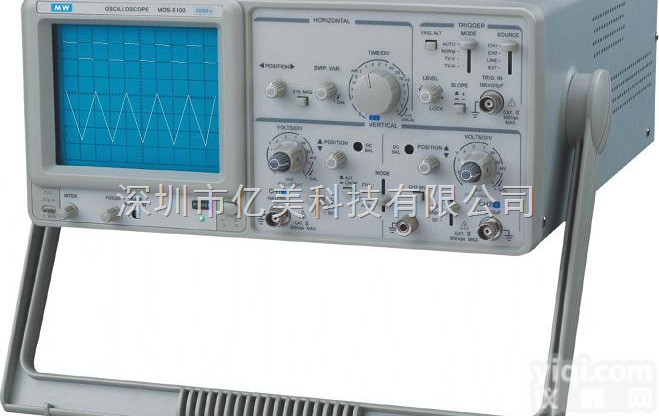

| OS-5100 |
| 阴极管 | 配置和有效视频 | 6 inch rectangular screen with internal graticule: 8x10DIV (1div=1cm), marking for measurement of rise time. 2mm subdivisions along the central axis |
| 加速电势 | +10.5kV approx (Ref. cathode) |
| 荧光器 | P31 (Standard) |
| 聚焦 | Possible |
| 旋转线迹 | provided |
| 亮度控制 | provided |
| 高强度Z轴输入 | 输入信号 | Positive going signal decreases intensity + 5Vp-p or more signal cases noticeable modulation at normal intensity settings |
| 频宽 | DC to 3.5MHz (-3dB) |
| 触发耦合 | DC |
| 输入阻抗 | 25Ohm |
| Z大输入电压 | 20V (DC + peak AC) |
| 垂直偏移 | 频宽 | DC(10Hz) to 100MHz DC(10Hz) to 20MHz(2mV Range) |
| 模式 | CH1,CH2,ATL,ADD,CHOP |
| 偏转系数 | 2mV/div to 5V/div in 11 calibrated steps of a 1-2-5 sequence |
| 准确度 | +/-3% For OS-5100; +/-3% (+/-5%:x Mag on) |
| 输入阻抗 | Approx, 1Mohm in parelle1 with 25pF |
| Z大输入电压 | Direct 250V (DC + AC Peak)) |
| 输入耦合 | DC- GND - AC |
| 延升时间 | 3.5ns or less (17.5ns or less 2mV/DIV) |
| 通道1输出 | 20mV/div into 50ohm : 50MHz to 30MHz(-30dB) |
| 极性逆向 | CH2 only |
| 水平偏移 | 显示方式 | A, A int B, B TRIG'D ,X-Y |
| A 时基 | 0.2us/div to 0.2s/div in 19 calibrated steps 1-2-5 sequence |
| 锁定时间 | Variable with the holdoff control |
| B 时基 | 0.1us/div to 10us/div in 7calibrated steps 1-2-5 sequence |
| 延时扫描定位 | 1 div or less to 10 div or more |
| 延迟拌动 | better than 1:20000 |
| 扫描放大 | 10 times (max sweep rate : 10ns/div) |
| 准确度 | +/-3%,( additional error for magnifier 2%) |
| 触发系统 | 触发模式 | AUTO, NORM ,TV, TV-H |
| 触发源 | LINE, EXIT, CH1,CH2 |
| 耦合 | AC |
| 倾斜率 | + or - |
| TV-V, TV-H | At least 1 div or 1.0Vp-p |
| 外部触发输入阻抗 | 1MOhm (in parall1 with approx. 30pF) |
| 灵敏度和频率自动或标准 | 30HZ-10Hz 30Hz-10Hz
INT 0.48div 1.5div
EXT 0.2Vp-p 0.6Vp-p |
| Z大输入电压 | 250V (DC + Peak AC) |
| X-Y 轴操作 | 敏感度 | Same as vertical delflection for both, X-axis(CH1) and Y-axis(CH2) |
| X轴频宽 | DC to 500Hz |
| X-Y轴相位模式 | 3ºor less (at DC to 100kHz) |
| 校准器 | 可调探针 | approx. 1KHz frequency, 0.5Vp-p (+/-3%) duty ratio:50% |
| 电源供应 | 电压范围 | | Voltage Range | Fuse (250V) | | 100(90-110V)AC | 2A 250V | | 120(108-132V)AC | 2A 250V | | 220(198-242V)AC | 1A 250V | | 230(207-250V)AC | 1A 250V |
|
| 电压频率 | 50/60Hz |
| 功率 | approx: 55W |
| 物理参数 | 尺寸 | 320(W)×140(H)×430(L)mm |
| 重量 | 8.5kg |
| 其他 | 附件 | operator's manual 1, Spare fuse 2 Power cord 1, Probe(option)2 |
